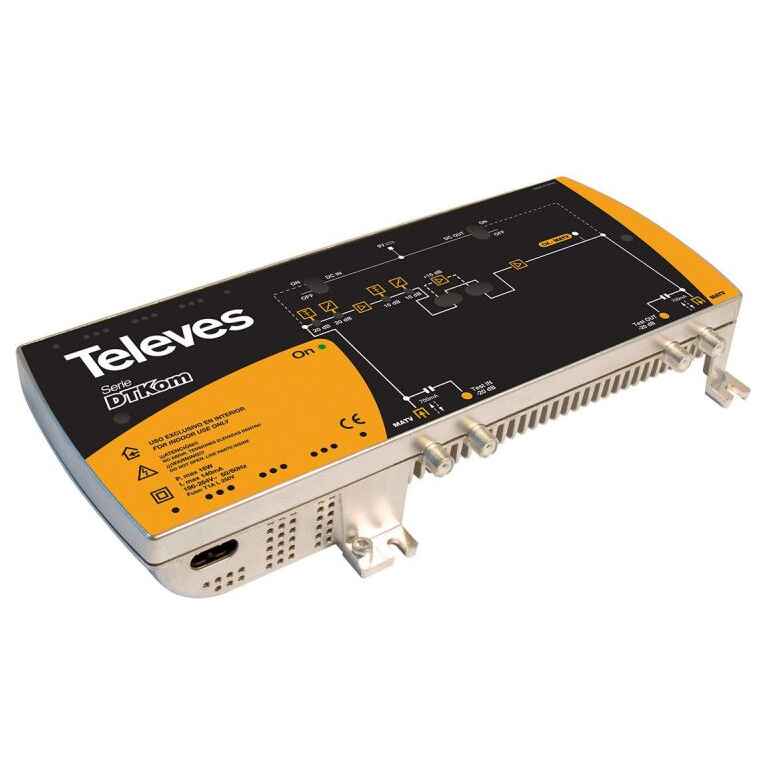

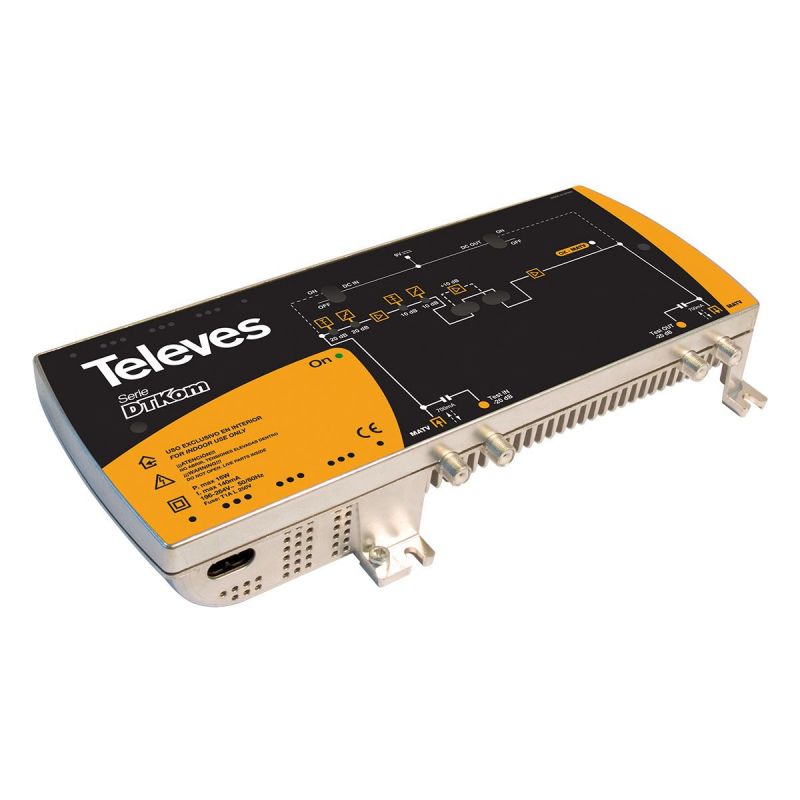

Name: Amplifier unit DTKom 2FI + MATV 47/42dB 123/120 dB?V Televes | +254720548999
SKU: TELEVES-5337
Price: 118728.00 KES
Availability: InStock

The Telev?s amplification plant DTKom Power Dubling 2 FI + MATV is a central amplifier of ICT of 2 down pipes (FI 1 and FI 2) with amplifiers for both and additionally amplifies the MATV signal by one of them.

Therefore, its usual use is as re-amplification in ICT lines (typically in communities).

Share with other DTKom models of other series its ease of installation and convenient access to settings, along with a led indicator signal input.

Thanks to the Power Doubling technology, it reaches output levels in any VHF or UHF band of up to 129dB and more than 120dB with FI equalization.

For MATV it has a gain of 34-47dB and in the FI channels of 42dB, while in the return channel (R5-30) active / passive is 17 and -4 respectively.

Features
Ease of installation and fixing.
All adjustments accessible from the outside.
Input signal detector in each band (indicator LED).
Channel of return to 30 and 65 MHz, active and passive.
High / Low selectable gain.
Level up to 129 dB?V in any VHF and UHF band.
More than 120 dB?V in FI with equalization.
Possibility of two outputs with 123 dB?V inMATV.
Specifications
Reference 5337
?Transmission Path ?Return Forward?
Passive Active MATV IF1 SAT IF2 SAT
?Frequency range ?MHz 5-30 ?47-862 950-2150
?Gain (low/high) dB -5 17 ?34/47 ?42
?Gain adjustment range dB – 0-20 ?0-20 ?-
?Input equalizer dB – 0-20 0-12
?Interstage attenuator dB – 0-10 0-20
?Slope adjustment dB – 0-10 –
?Output level ?DIN45004B dB?V – 116 ?123 ?-
?EN50083 ?IMD3 – 113 ?120 ?120
?IMD2 – 89 ?114 ?115
?CTB, CSO, XMOD ?- ?- ?104 ?-
?Noise figure dB ?- ?15 ?10 ?12
?Power on inputs Vdc ?-???
?Max current through inputs mA ?-???
?AC Power consumption W 18
