Carrying case for MOSAIQ6 meter Televes
KSh39,778.00

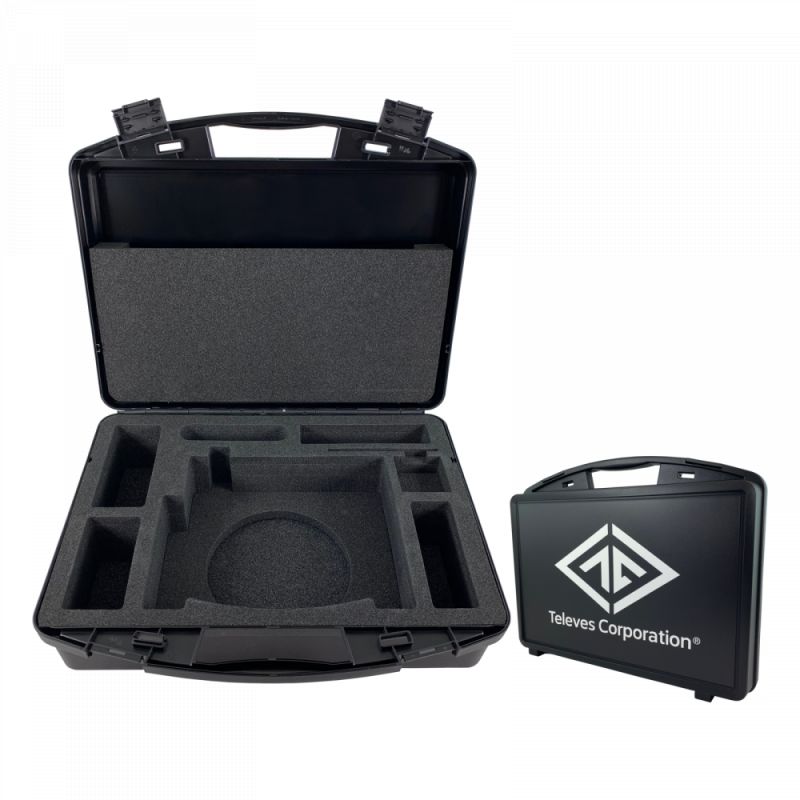

Case with dimensions 486 x 398 x 152 mm that allows housing and carrying MOSAIQ6 field meters.
This case, made of black opaque plastic, has two locks at the top to offer more security when it is transported. The inside is cover of hard polyurethane foam, which provides an outstanding impact resistance, while minimizing the falling risks.
It is possible its use to carry:
MOSAIQ6 field meter
Replaceable battery
Power supply
Lighter-type charger (12V)
Shoulder strap
Optical, data and coaxial patch cords
Buds and wipes
User manuals and data sheets
