Central broadband MiniKom MATV + FI 4 inputs “F”…
KSh45,624.00
4-input multiband amplifier (FM-BIII-UHF-SAT) for SMATV systems. Separate amplification guarantees the absence of intermodulation among inputs and independent attenuators. Separate amplification enhance the output level without causing any interference among bands. PIN-diode technology gain attenuators on each input (0 dB-20 dB)

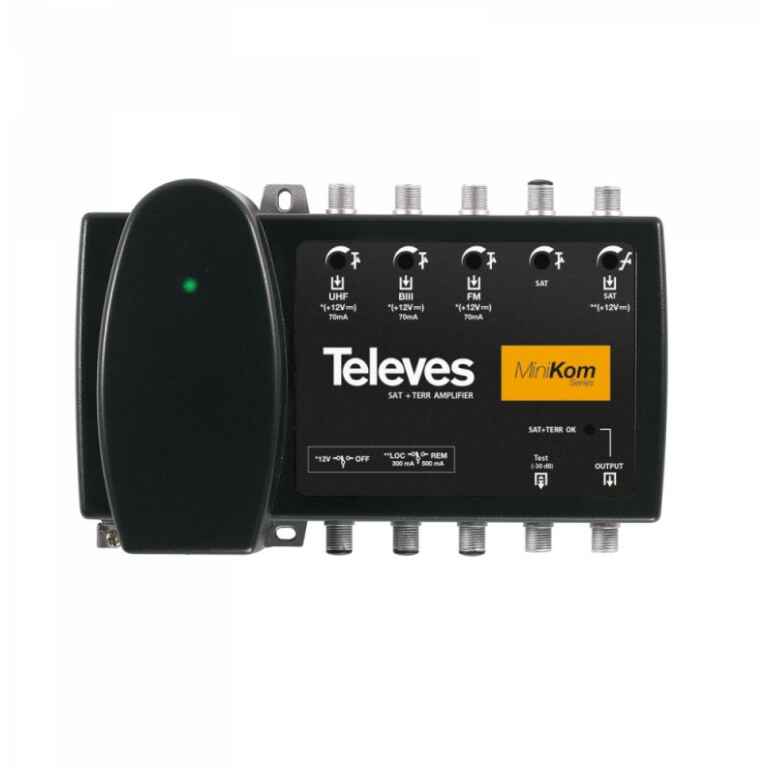

MiniKom F broadband multiband amplifier
4 inputs: FM-BIII-UHF-SAT
4-input multiband amplifier (FM-BIII-UHF-SAT) for SMATV systems. Separate amplification guarantees the absence of intermodulation among inputs and independent attenuators.
Highlights
Separate amplification enhance the output level without causing any interference among bands
PIN-diode technology gain attenuators on each input (0 dB-20 dB)
High output level
High-screening Zamak chassis
Main features
?F? connectors
SAT equalizer
Output signal LED indicator
Power selection switch for LNB: local (low-V) or remote
Switch for pre-amplifier or BOSS system powering
Test output (-30 dB)
Can be wall-mounted using screws
Specifications
Inputs UHF BIII FM IF
Frequency Margin MHz 470-694 174-254 88-108 950-2150
Gain dB 39 ? 3 35 ? 3 17 ? 2 35 ? 3 (950Mhz.)
41 ? 3 (2150Ghz.)
Input attenuation range dB 0 – 20
Equalisation range dB — 0-15
Input/Output return losses dB >10 >10
Noise figure dB 7 < 6 < 9 10
Max. Output level (DIN45004B)
IMD3 (2ch ?60dB) dB?V. 117
114 > 113
> 113 > 113
> 110 —
(EN50083)
IMD3 (2ch ?35dB) — 124
Max. Input line power supply Vdc 12
mA 70 70 70 300*
Total input DC mA 300*
(12Vdc)
Power supply LNB
(REMOTE) mA — 500
Power supply V~ 220 – 230
Max. Current mA~ 100
Consumption W 8,2
Operating temperature ?C -5 to +45
Protection Index IP 20
