Coaxial Cable T100 CU/AL PVC White 250m Televes
Coaxial Cable T100 CU/AL PVC White 250m

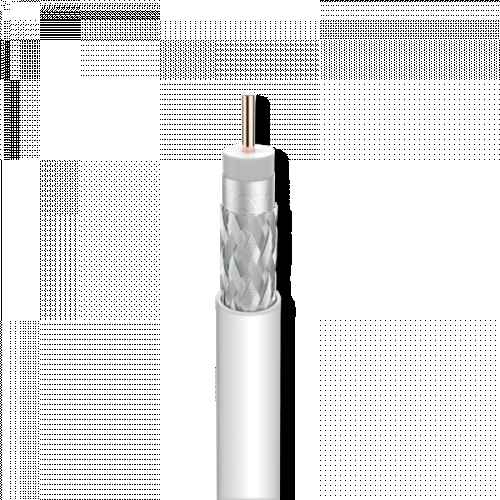

Coil of 250 meters of coaxial cable RG-6 white T100. Made of copper and aluminum mesh. It has double shielding and PVC cover.
This cable is ideal for installing the antenna socket to the television in our home, although it can also be used in some closed circuit television installations.
This cable has two layers of shielding that provide great shielding thanks to its aluminum mesh. It is Class A and complies with the EN 50117 standard.
Technical Specifications of Coaxial Cable T100 CU/AL PVC White 250m
?
Model
?
T-100
Tipe of cable
?
RG-6
Sstandar
?
EN 50117-2-4
Euroclase
?
Eca
Class
?
A
Center conductor diameter
mm
1,13
Material Center conductor
?
Copper (Cu)
Resistance Center conductor
?/km
< 20 Dielectric Diameter mm 4,7 Dielectric material ? Expanded Polyethylene (PEE) Dielectric Color ? White RAL 9003 Inner foil ? Aluminum + Polyester + Aluminum Material Mesh ? Aluminum Mesh dimensions: number of groups of threads (Nc) ? 16 Mesh dimensions: number of threads per group (Ns) ? 8 Mesh dimensions: wire diameter (?) mm 0,12 Mesh Resistance ?/km < 27 Mesh Coverage % 77 2nd armor plate ? No 2nd shielding sheet glued to the dielectric ? No Petro-Gel ? No Anti-immigration sheet ? No Diameter Outer cover mm 6,6 Outer sheath material ? PVC Minimum bending radius mm 33 Transfer Impedance (5-30MHz) m?/m < 5 Shield at 1GHz dB > 85
Spark Test
Vac
3000
Capacity
pF/m
52
Impedance
?
75
Propagation speed min.
%
85
Operating temperature
?C
-30 … 70
Frequencies
?
5 MHz
47 MHz
54 MHz
90 MHz
200 MHz
500 MHz
698 MHz
800 MHz
862 MHz
950 MHz
1000 MHz
1220 MHz
1350 MHz
1750 MHz
2050 MHz
2150 MHz
2200 MHz
2300 MHz
2400 MHz
3000 MHz
Attenuation (typ.)
dB/m
0,02
0,05
0,05
0,06
0,08
0,14
0,15
0,16
0,17
0,18
0,19
0,21
0,23
0,25
0,28
0,29
0,29
0,3
0,31
0,34
?
