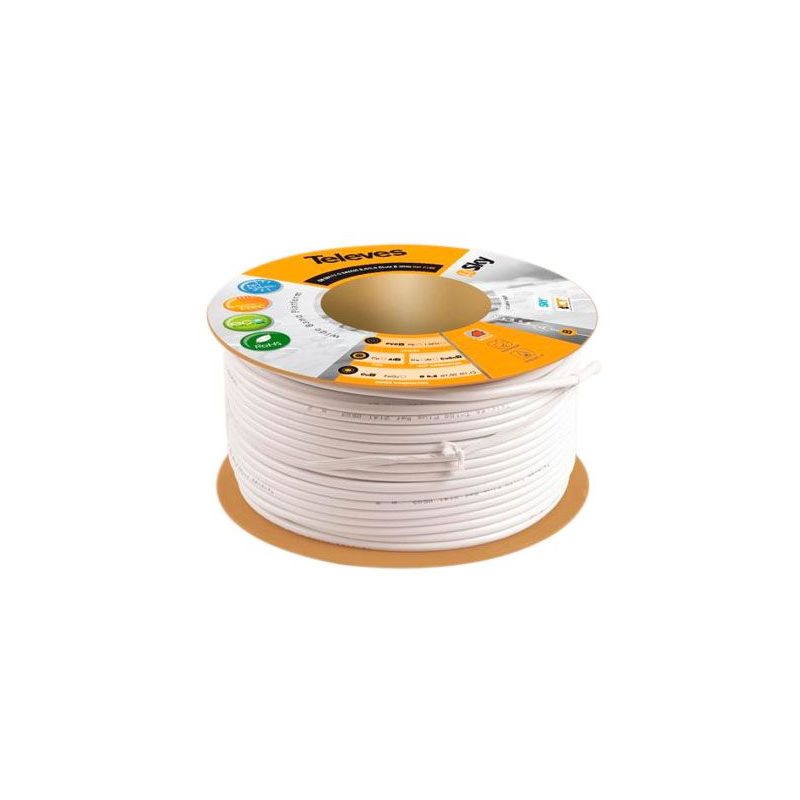

Coaxial cobre-cobre CTX-5 100m CU/CuSn 5mm PVC White Televes
KSh17,424.00
RG-59 coaxial cable with live made of copper and tinned copper mesh (with aluminum and magnesium) (Cu/CuSn), with good braiding coverage (55%). A 24VAtC cable, double shielded and PVC covered.
Coaxial cobre-cobre CTX-5 100m CU/CuSn 5mm PVC White Televes
RG-59 coaxial cable with live made of copper and tinned copper mesh (with aluminum and magnesium) (Cu/CuSn), with good braiding coverage (55%). A 24VAtC cable, double shielded and PVC covered.
Stands out for
Internal conductor made of copper and tinned copper mesh with aluminum and magnesium
Euroclass Eca
Main features
White PVC exterior coverage
75 ohm characteristic impedance
100m cardboard reel
Specs
INNER CONDUCTOR – BRAID COMPOSITION COPPER – CCS (copper-clad steel)
?Televes Model T-200 PLUS
?Reference 210603
?Inner conductor ? mm ?0,80
material – Cooper
resistance ?/Km <37
?Dielectric ? mm 3,4
material - Foam Polyethylene
?Overlapping shielding foil composition Alu+Polyester+Alu
?Braid resistance ?/Km < 35
material - CCS (copper-clad steel)
?Antimigrating film No
?Petrol jelly
?Outer sheath ? mm 5
color - White
material - PVC
?Minimum bending radius mm 25
?Screening efficiency dB >75
?Capacitance pF/m 53
?Environmental use Indoor
?Packaging meters/reel m 100
Attenuation
Frequency?(MHz) 200 dB/m 0,1
500 0,19
800 0,23
1000 0,26
1350 0,31
1750 0,35
2050 0,39
2300 0,42
