Coaxial extension with F male connectors White 5m Televes
KSh4,828.00

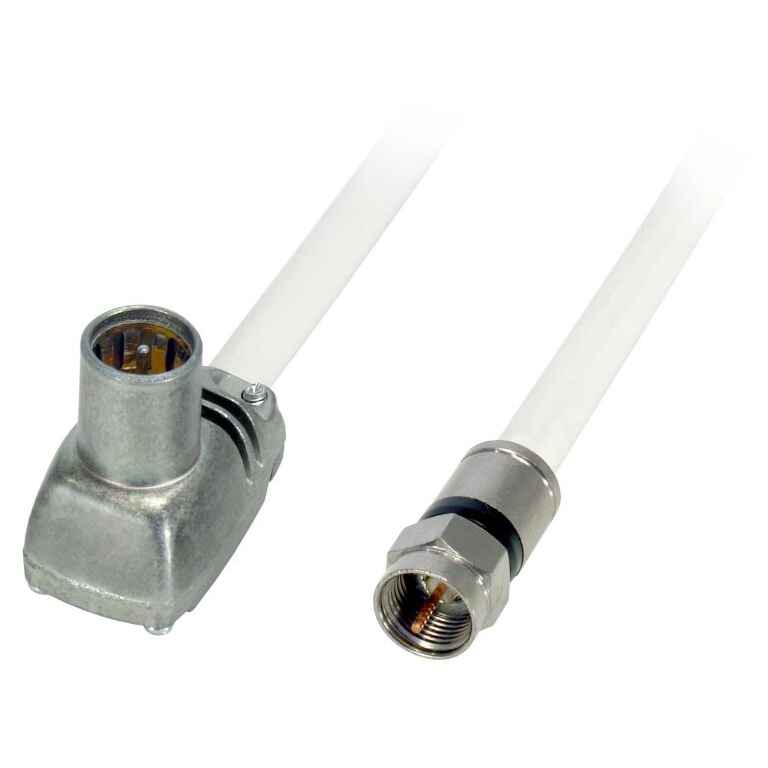

5m preconnected coaxial extension with one compression F connector on one end and one PROEasyF “F fast” on the other. Made with the quality cable SK2000plus, a coaxial cable of triple shielding and class A ++.
In addition to being used for the connection between the socket and TV devices, it can also be used in professional applications. Televes 385302
Coaxial cable lead pre-connected with an F compression connector on one end (ref. 3802) and a PROEasyF Quick F (ref. 413410) connector on the other. Made of SK2000plus cable (ref. 4138xx), a Class A++-coaxial cable with triple shielded.?
Suitable for professional use, besides the regular use in the connection between socket and TV devices.?
Highlights
Copper coaxial cable conductors
Triple shielded, class A++. Eca Euroclass
PROEasyF elbowed connector with class A++ shielded
Features
Length 5m
White-colour external PVC sheath
Male F compression connectors and male PROEasyF F fast
Class A++ Trishield (TSH) coaxial cable
With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.
They belong in EN 50117 standard Class A++, according to their structural properties:
For 5 MHz – 30 MHz => TI < 0.9 m?/m
For 5 MHz - 1000 MHz => SA > 105 dB
For 1000 MHz – 2000 MHz => SA > 95 dB
For 2000 MHz – 3000 MHz => SA > 85 dB
Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.
Specifications
References / Art. Nr. 3853xx / FS-FSW20xx
?Cable type Class A++
?Inner conductor ?? mm 1.02
?Material? Cu (copper)
?Resistance ohm/Km 22
?Dielectric ?? mm 4.6
?Material? PEE (foam polyethylene)
?Over lapped foil ?Material Aluminium + Polyester
?Braid ?Material? CuSn (tinned copper)
?Resistance ohm/Km 10.5
?Coverage % 82
?2nd shielding film Yes
?Outer sheath ?? mm 6.7
?Material? PVC (polyvinyle clorhidre)
?Minimum bending radius mm 33.5
?Shielding at 1GHz dB >105 (typ. 130)
?Capacitance pF/m 54
?Impedance 75
?Velocity ratio % 84
?Attenuations dB/m
?Frequency ?200 MHz 0.09
?500 0.14
?800 0.18
?1000 0.21
?1350 0.25
?1750 0.28
?2050 0.31
?2300 0.32
