Derivador 5-2400 MHz connector EasyF 8 outputs 16dB type TA...
Derivador 5-2400 MHz connector EasyF 8 outputs 16dB type TA... - Image 2

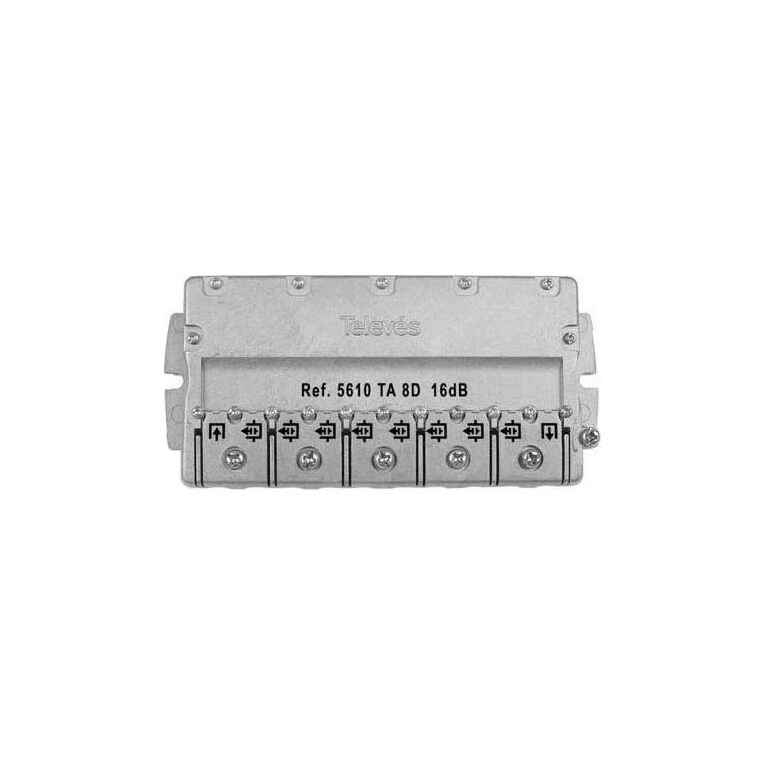

Derivador 5-2400 MHz connector EasyF 8 outputs 16dB type TA…

KSh7,302.00

5 – 2400 MHz band shunt. EasyF connector. 8 outputs. 16dB. Type TA. Inside. Televes 5610

Indoor shunt with easyF flange connection system that combines the advantages of flange and F connector, saving connection time and money to the installer.

The use of this type of connection saves more than 50% in the time of installation, also providing a firm and secure connection, and complying with the most demanding standards of electromagnetic compatibility.

Features
The innovative and easy F connector provides the advantages of the S & C connector and the F connector.
Totally armored.
They allow an IN-OUT current bypass.
Specifications
Reference? 5610
?Frequency range? SMATV
?Outputs n? 8
?Number of floors 1
Insertion loss In -> Out ?Ret. C. C. dB <11 ?MATV 5 ?IF SAT 5 ?Tap loss In -> Tap ?Ret. C. <18 ?MATV 16 ?IF SAT 16 ?Rejection Out ->Tap ?Ret. C. > 30
?MATV > 30
? IF SAT >30
Rejection Tap ->Tap ?Ret. C. > 30
?MATV > 30
? IF SAT > 30
?Max Voltage Vdc 40
?Max current through Out-In mA 300
?Dimensions(Wid x Hei x Dep) mm 122x59x14
?Weight gr 258
