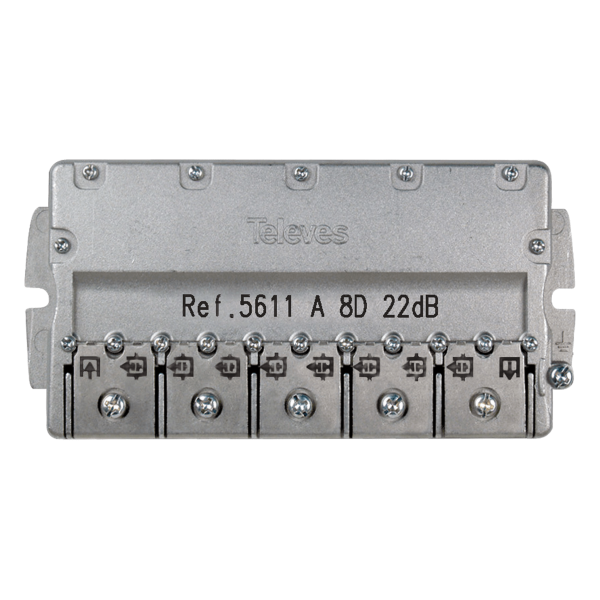

DTT-SAT EasyF 8W Tap 22dB Televes
5-2400MHz EasyF 8W Tap 22dB Televes 5611
5-2400MHz tap for community TERR-SAT distribution of ICT2 regulations. It has 8 tap ways with 22dB of losses and 1 pass-through output of 3.5dB of losses. DC current pass (max. 300mA) from the pass-through output. EasyF connection system for compact design and easy mounting.
The taps are passive equipment for collective ICT2 installations, they are mounted on each floor of a building and their function is to divide the terrestrial and satellite TV signal to all the homes on the same floor. In this case, the tap has 8 outputs, so it can be used in buildings with up to 8 users per floor. The pass-through output sends the signal to the next tap, on the lower floor.
?
DTT-SAT (5..2400 MHz) 8-Way EasyF Tap with 22dB Losses, type A
What technical specifications does the Televes 5611 Tap have?
Frequency range MHz 5-2400
5-862 950-2400
Number of outputs 8
Floors 2
Through loss dB 3 3,5
Tap loss 22
Rejection between taps 40
DC Pass (max.) mA 300 (in.?out.)
?
