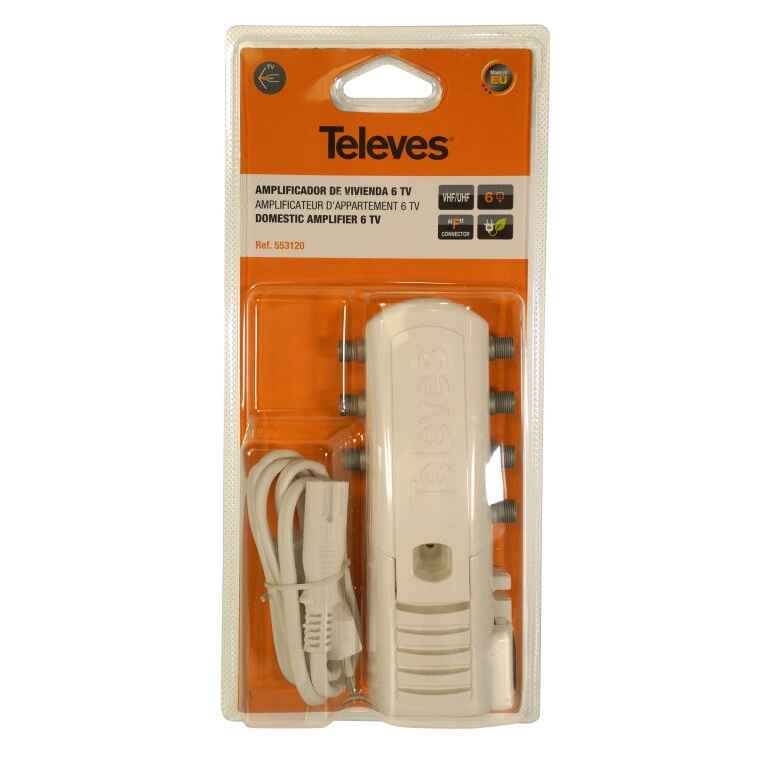

“F” domestic amplifier 1i/6o: 47…694MHz G 14dB Vs 95dB?V…
KSh15,226.00
Domestic amplifier with 6 outputs, to extend the terrestrial television domestic network.
Equipped with LTE700 4G/5G filtering.
Highlights
Low-impact visual design and limited size
Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
Fully automated manufacturing subject to the most stringent quality controls
Features
Manual gain control, protected by a folding cover
Can be wall-mounted using screws
?F? connectors
Specifications
VHF/UHF
Frequency band MHz 47-68/174-400 470-694
Inputs 6 (F) 6 (F)
Gain G dB 6 14
Gain regulation margin marg – AUTO
Output level (Vout) DIN 45004B? dB?V 104 102
IMD3(2tones, -35dB) 97 95
10CH DVB-T – 83
Noise figure N.F. dB – 0 … 12
