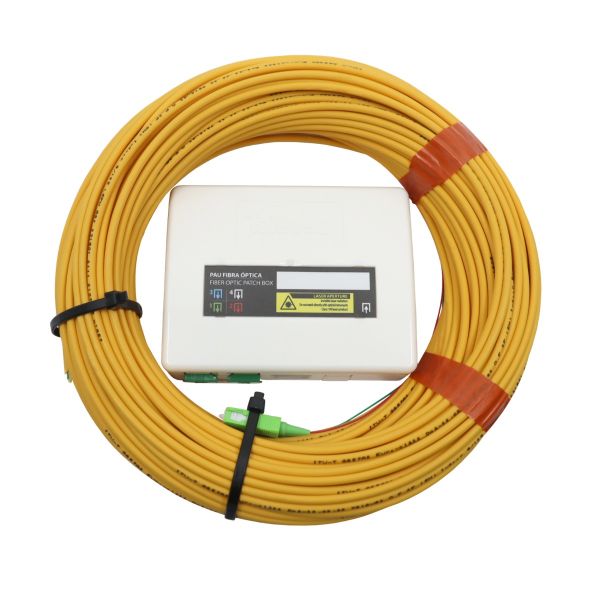

Fiber Optic Patch Box 2 SC/APC Outputs + 2 Fibers 25m Televes
Fiber Optic UAP of 2 SC/APC outputs + 2 Fibers 25 Meters Televes 231541
2-way SC/APC Optical User Access Point, with 2 fiber pigtails of 25 meters with SC/APC connectors at one end, while the other end is for merging with the main fiber network, or , for mounting FO connectors.
Fiber optic UAP to be located in the Network Termination Registry (RTR) in new ICT2 works. Due to its design, it can be used in other facilities such as: old buildings, workshops, classrooms, work tables, connection cabinets, etc.
Since this fiber optic PAU is pre-connected at one end only, the installation is done from the RTR to the secondary register and when it reaches the telecommunications enclosure, it is connected to the network interconnection register, performing a fusion with a?pigtail. If there is a lot of excess cable, the excess is normally cut before performing the fusion with the pigtail so that the installation is perfectly finished and tidy.
By including the pre-wired fiber cable, the assembly is more convenient and agile for the installer, since he only has to perform the fusion at the lower connection point. Also included are 2 female to female SC/APC adapters, 2 heat shrink sleeves, 2 cable ties and hardware for installation.
UAP Fiber Optic 2 SC/APC Outputs + Two 25 Meter Fiber Pigtails
What are the main characteristics of the FO UAP Televes 231541?
Made of resistant ABS plastic
Capable of up to 4 SC/APC output connectors
Multi-anchor: DIN rail, wall or socket
ITU-T G657A2 singlemode fibers
With identification label
Includes 2 “SC/APC” female to “SC/APC” female adapters (with self-locking cap)
100% European quality: manufactured by Televes in Spain Euroclass Dca-s2, d2, a2
White color (RAL 9003)
6 pre-cut entrances on their sides, for FO access
Rear input for SC connector
Rear input for FO and SC connector
Entrance pre-cut at the bottom, for access to the possible dispatcher (SC/APC)
Included are: 2 heat-shrink sleeves, 2 flanges, hardware for installation
