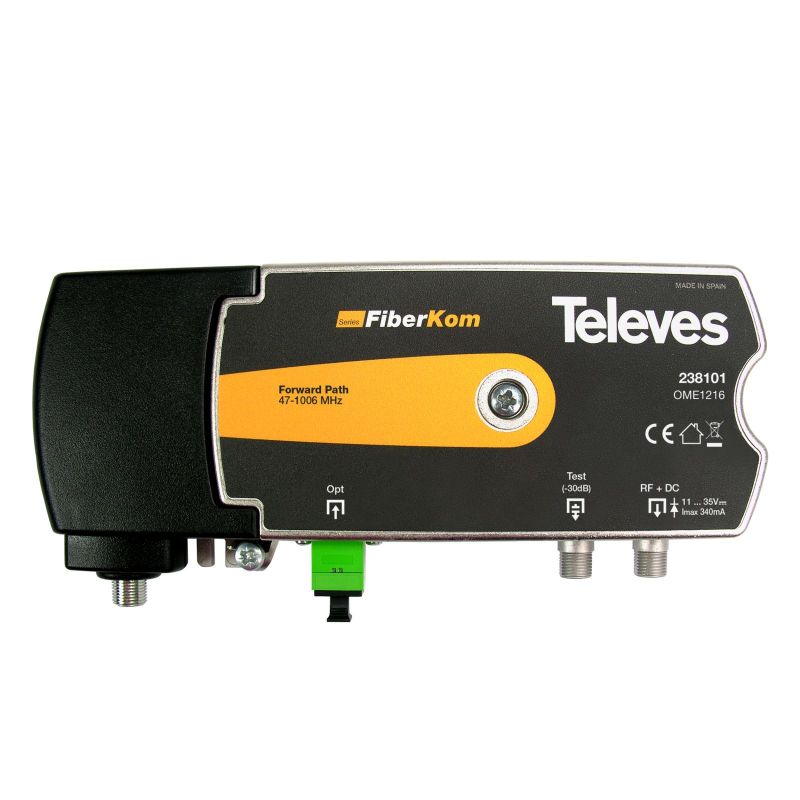

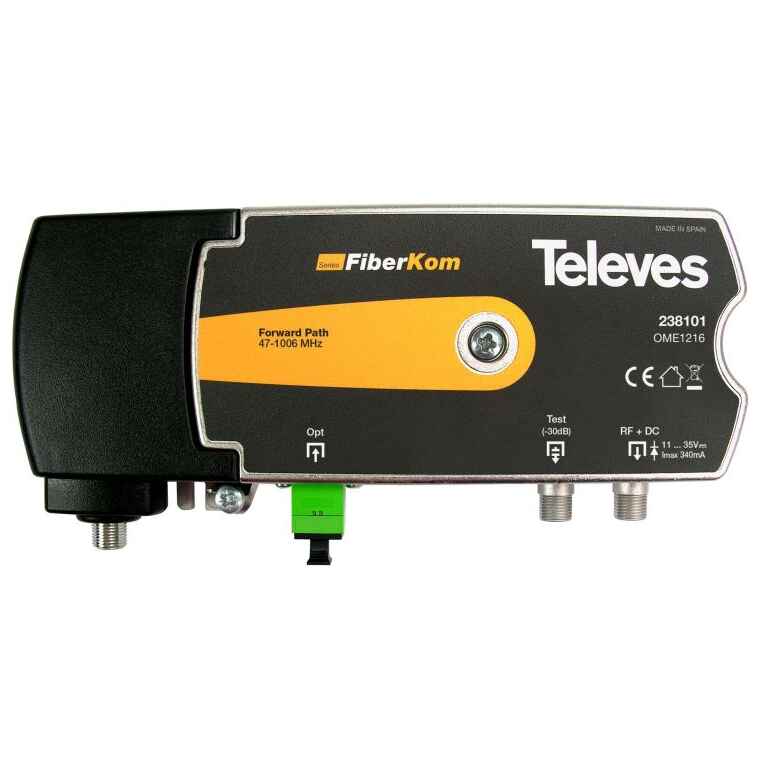

FiberKom optical mini-receiver equipped with OLC technology…
KSh48,698.00
Optical mini-receiver for small MDU (Multi Dwelling Unit); receives one optical signal in the 1200 nm-1600 nm range and restores it on one RF output (47 MHz-1006 MHz) with amplification.?Equipped with OLC technology.?Perfect for RF Overlay, FTTB, and FTTH applications.?Remote powering (F connector). Televes 238101
Optical mini-receiver for small MDU (Multi Dwelling Unit); receives one optical signal in the 1200 nm-1600 nm range and restores it on one RF output (47 MHz-1006 MHz) with amplification.?
Equipped with OLC technology.?
Perfect for RF Overlay, FTTB, and FTTH applications.
Remote powering (F connector)
Highlights
The OLC (Optical Level Control) technology automatically adjusts the parameters to achieve a constant output level, irrespective of the channel load
Equipped with pre-equalization, attenuation, and equalization controls to adapt the output signal to the coaxial network characteristics
High output voltage (RF amplification) and enhanced C/N
Wide reception optical range
Low power consumption
?Features
SC/APC optical connectors, and F-type connectors for RF
Specifications
Forward path
Frequency range MHz 47 … 1006
Output impedance Ohm 75
Optical input level for OLC dBm -8 … +1dBm
Flatness dB ? 1
Number of outputs no. 1
Typical output level in OLC range dB?V / dBmV 100 / 40
CNR dB >51
CSO dB >60
CTB dB >60
Equivalent noise current density at input pA/ Hz < 6
Gain control (2dB steps) dB 0... 18
Pre-emphasis dB 3, 7, 9
Wavelength nm 1200 - 1600
Optical return loss dB >40
Optical connector type SC/APC
Max. optical input power before damage dBm 2
Optical device type InGaAs pin photodiode
General
Power voltage / Max. consumption V=/mA
11 / 340…. 35 / 140
?
Test point dB -30 ?1
RF connectors type F
Housing material ? Zamak/ABS
Operating temperature ?C / ?F -5…+45 / +23….+113
Index operation IP 30
EMC compatibility ? EN 50083-2
Safety ? EN 60825-1
