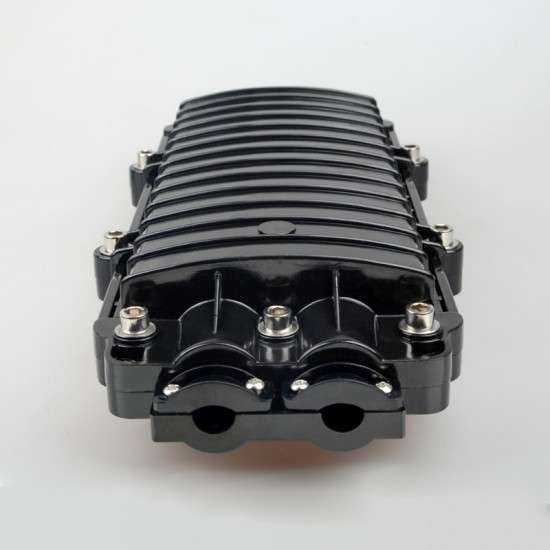

Fibre 48 Core Termination Box 400 * 210mm Aerial IP67 Mechanical – 2 IN 2 Out Closure – Kenya

Name: Fibre 48 Core Termination Box 400 * 210mm Aerial IP67 Mechanical – 2 IN 2 Out Closure - Kenya | +254720548999
SKU: 5913f46320a3
Price: 7500.00 KES
Availability: InStock

KSh7,500.00

Fibre 48 Core Termination Box 400 * 210mm Aerial IP67 Mechanical – 2 IN 2 Out Closure Mtech

Fibre 48 Core Termination Box 400 * 210mm Aerial IP67 Mechanical – 2 IN 2 Out Closure from the leading fibre optic dealer in Nairobi kenya, buy online Fibre 48 Core Termination Box 400 * 210mm Aerial IP67 Mechanical – 2 IN 2 Out Closure and have it delivered.

Main Technical Parameters for fiber optic splice closure

•Applicable environment temperatures: -40°C~+65°C

•Air pressure: 70~106Kpa

•Pull-out strength**1000N, compressive force to shell**2000N , impact: 16N.m

•Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 50N.m (±90°)

•Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70°C for 100 hours

•Insulation resistance**2×104M**,resistance to 15KV/min without break down

•Life expectancy: 25 years

NO. Name Model Box material High * width * depth maximum capacity
(core)
01 Horizontal (buried)
Optical fiber connector box GPX72-JTO-A ABS/PC ABS 2 in 2 out
460*170*110 12-72 cores
PC 3 in 3 out
480*185*120 12-144 cores
4 in 4 out 12-288 cores
02 Vertical (barrel)

Optical fiber splice box

GPX72-JTO-B ABS/PC ABS 2 in 2 ou
370*150 12-96 cores
PC 3 in 3 out
410*140 12-288 cores
4 in 4 out 12-288 cores
