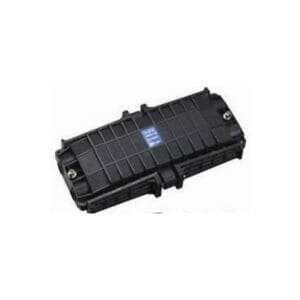

Fibre 48 Core Termination Box size: 360 * 185 * 85mm U/G IP67 – 2 IN 2 Out Closure – Kenya
KSh5,500.00
Fibre 48C Termination Box size: 360 * 185 * 85mm U/G IP67 – 2 IN 2 Out Closure
The Fibre 48 Core Termination Box is a robust and reliable solution designed for efficient fiber optic cable management in underground installations. Measuring 360 mm x 185 mm x 85 mm, this termination box accommodates up to 48 single-core fibers, making it ideal for high-capacity networking applications.
Constructed from durable, high-quality plastic, the box features a sleek black finish and ensures excellent protection against environmental factors. With an IP67 rating, it offers superior resistance to dust and water, allowing it to function seamlessly in harsh outdoor conditions. The design includes two entry and two exit ports, facilitating easy cable routing while maintaining an organized system.
The integrated cable management features ensure proper organization and protection of fibers, preventing damage during installation and operation. This termination box also supports multiple splice trays, enhancing its functionality for various applications, including telecommunications networks and data centers.
Engineered to withstand temperature extremes, it operates efficiently within a range of -40°C to +70°C. Its moisture protection capabilities and user-friendly design make installation and maintenance straightforward, providing a long-lasting solution for fiber optic distribution needs. The Fibre 48 Core Termination Box is an essential component for anyone looking to enhance their fiber optic infrastructure.
Dimensions 365*137*90(without cover); 375*142*120mm(with cover)
Ingress protection IP67
Temperature range -40 to 80 degree
Cable strength member Armoured or non-armoured
Cable type Hybrid or non-hybrid
Round cable OD 5-14mm
Flat cable dimension 4.6*8.9mm
Cable jacket material LSZH, PE, TPU
Bending radius 20D
Cable crush resistance 200N/cm long term
Tensile strength 1200N long term
UV resistance ISO 4892-3
Fiber protection rating UL94-V0
Number of PLC 1 piece or 2 pieces
Number of fusion protection sleeve 1 piece to 24 pieces
Fibre 48C Termination Box size: 360 * 185 * 85mm U/G IP67 – 2 IN 2 Out Closure
The Fibre 48 Core Termination Box is a robust and reliable solution designed for efficient fiber optic cable management in underground installations. Measuring 360 mm x 185 mm x 85 mm, this termination box accommodates up to 48 single-core fibers, making it ideal for high-capacity networking applications.
Constructed from durable, high-quality plastic, the box features a sleek black finish and ensures excellent protection against environmental factors. With an IP67 rating, it offers superior resistance to dust and water, allowing it to function seamlessly in harsh outdoor conditions. The design includes two entry and two exit ports, facilitating easy cable routing while maintaining an organized system.
The integrated cable management features ensure proper organization and protection of fibers, preventing damage during installation and operation. This termination box also supports multiple splice trays, enhancing its functionality for various applications, including telecommunications networks and data centers.
Engineered to withstand temperature extremes, it operates efficiently within a range of -40°C to +70°C. Its moisture protection capabilities and user-friendly design make installation and maintenance straightforward, providing a long-lasting solution for fiber optic distribution needs. The Fibre 48 Core Termination Box is an essential component for anyone looking to enhance their fiber optic infrastructure.
Dimensions 365*137*90(without cover); 375*142*120mm(with cover)
Ingress protection IP67
Temperature range -40 to 80 degree
Cable strength member Armoured or non-armoured
Cable type Hybrid or non-hybrid
Round cable OD 5-14mm
Flat cable dimension 4.6*8.9mm
Cable jacket material LSZH, PE, TPU
Bending radius 20D
Cable crush resistance 200N/cm long term
Tensile strength 1200N long term
UV resistance ISO 4892-3
Fiber protection rating UL94-V0
Number of PLC 1 piece or 2 pieces
Number of fusion protection sleeve 1 piece to 24 pieces
