Field meter H30Crystal DVB-S/S2 + DVB-T + F.O. Seletiva…
KSh603,790.00
The H30Crystal extends the H30 series of compact, portable field strength meters by incorporating powerful optical measurement functionality. The ability to analyze fiber optic networks, together with all the features of the previous models, make this equipment a versatile and complete tool for today’s professional installer.
All the functions you need, also in fiber optics
The H30Crystal expands H30 series of portable and compact meters by bringing strong efficiency in optic measurements. Its ability to analyse fiber-optic networks, along with all the features of previous models, makes this equipment a versatile and comprehensive tool for today?s professional technicians, who are used to working with several telecommunication network technologies.
H30Crystal is also a scalable and multi-standard equipment designed to measure DVB-S/S2, DVB-T/T2, DVB-C, analogue channels and the return path. Easily-downloadable software licences will let you update your meter with new options. These features, together with its wide range of tools and functionalities, make the meter a multifunctional equipment ideal for installations, maintenance and troubleshooting of coaxial and fiber-optic networks. All of this in just one device!
Operating the meter is more flexible thanks to its multiscreen system: the user can manage it remotely and display its contents on their own mobile device (Android, iOS or PC). Wi-Fi and Bluetooth connectivity will let you work with all the conveniences of a wireless connection. In addition, a universal armband for mobile devices up to 6? is included, so that using a smartphone is even more comfortable.
Just as the rest of the meters fully designed and manufactured in Televes Corporation, H30Crystal takes advantage of the digital processing technology, and provides the user with a speed and mathematical accuracy equivalent to that of laboratory equipment.
Highlights
Accurate power and optical attenuation measurement
Multistandard: DVB-S/S2, DVB-T/T2, DVB-C, analogue channels and return path
Multiscreen system with touch control: display the meter screen on a mobil device, and control the meter by touch gestures and buttons
WiFi and Bluetooth connectivity
Wideband LNB supported
Guided satellite pointing
Real-time digital processing
Light-weight handheld meter
User friendly interface
Option to expand through Wi-Fi analyser, IPTV and HEVC display both on the meter and on the mobile device
All measurements are carried out by pressing a single button equipped with Pass/Fail indicators to reduce installation errors
Discover
Meter from H30 series: How to choose the most convenient model?
The H30 series consists of different customizable multistandard meters, all of them designed to carry out installation, maintenance and monitoring of telecommunications networks. Each model stands out for offering new functionalities, while preserving all the advantages of the previous model.
Through the following comparative table, it is possible to choose the most suitable meter model for each professional:
? H30FLEX H30EVOLUTION H30CRYSTAL
Multi-standard customizable ? OK OK OK
Frequency range Return P.: 5-50 MHz X X OK
Terrestrial: 50-880 MHz OK OK OK
Satellite: 250-2400 MHz OK (up to 2200MHz) OK OK
Screen ? 2.8? TFT 400 x 240 full color 2.8? TFT 400 x 240 full color 2.8? TFT 400 x 240 full color
Multi-screen with touch control on mobile device ? X OK OK
Smartphone armband ? X OK OK
2,4 / 5GHz WiFi connectivity ? X OK OK
WiFi analyzator ? X OK(*) OK(*)
Bluetooth connectivity ? X OK OK
Ethernet interface ? OK OK OK
USB interface ? USB (A-type) USB (A-type) USB (A-type)
Optical measures ? X X OK
Guided satellite pointing ? X OK OK
IPTV analyzator ? X OK(*) OK(*)
LNB Wideband compatible ? X OK OK
HEVC displaying on the meter X X OK(*)
on the mobile device X OK(*) OK(*)
Terrestrial input level to 120dBμV ? OK(**) OK(**) OK(**)
dCSS compatible ? OK(**) OK(**) OK(**)
Management interface access (datalogs, channel plan…) ? Cable Ethernet Wireless (WiFi/Bluetooth) Ethernet cable Wireless (WiFi/Bluetooth) Ethernet cable
Dimensions ? 175x100x52 mm 175x100x52 mm 175x100x52 mm
Weight ? 510 g. 510 g. 550 g.
Color ? Black & White Black & Grey Light & dark grey
Specifications
H30Crystal
Mechanical Specifications
Screen 2.8? TFT 400 x 240 full color
Weight 550 g.
Dimensions 175x100x52 mm / 6,9×3,9×2 (HxWxD)
AC Adaptor Input: 100-240V~ 50-60Hz Output: 12VDC, 2A
Battery Li-ion (7,2VDC, 2300mAh)
Baterry range >4hours without LNB powering
Interfaces Bluetooth, Wi-Fi 2.4GHz / 5 GHz, Ethernet 1Gb
USB 2.0 for Data log download and software upgrades
Resilience It withstands drops From 1 m (3.2 ft) onto concrete on all sides
Storage capacity 400 MB (internal) for measurements
Impedance F-type connector – 75 Ohm
Technical Specifications
? ? 593603 593601 593602 593604 593621 593622 593624 593661
Frecuency
Range ? Return path: 5-50 MHz / Terrestrial: 50 – 880 MHz / Satellite: 950 – 2400 MHz / Wideband: 250 – 2350 MHz
Resolution ? 125 kHz
Tunning ? Frecuencia o canal
Spectrum analyser
Span ? 5, 10, 20, 50, 100, 200, 500 MHz and Full
Scale ? 5 and 10 dB/div
Reference level (automatic and manual) ? ?
Optical fibre
Not Selective -40dBm to +7dBm ? ? ? ? – – – ?
Selective -40dBm to +7dBm – – – – ? ? ? –
RF Overlay -10dBm to +5dBm ? ? ? ? ? ? ? ?
Optical Attenuation ? ? ? ? ? ? ? ? ?
DVB-S digital measurements [Modulation: QPSK]
Image ? ? ? ? ? ? ? ? ?
Power From 45 to 110 dB?V ? ? ? ? ? ? ? ?
? From 45 to 120 dB?V Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235**
CBER 9.9E-2 ? 1.0E-6 ? ? ? ? ? ? ? ?
VBER 1.0E-4 ? 1.0E-8 ? ? ? ? ? ? ? ?
MER Up to 20dB ? ? ? ? ? ? ? ?
C/N Up to 20dB ? ? ? ? ? ? ? ?
Constelation ? ? ? ? ? ? ? ? ?
DiSEqC ? ?
SCR EN 50494 ?
dCSS EN 50607 Upgrade 593234**
DVB-S2 digital measurements [Modulations: QPSK, 8PSK]
Image ? ? ? ? ? ? ? ? ?
Power From 45 to 110 dB?V ? ? ? ? ? ? ? ?
? From 45 to 120 dB?V Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235**
Link Margin Up to 10 dB ? ? ? ? ? ? ? ?
MER Up to 20 dB ? ? ? ? ? ? ? ?
LDPCBER* 9.9E-2 ? 1.0E-6 ? ? ? ? ? ? ? ?
BCHBER* 9.9E-2 ? 1.0E-8 ? ? ? ? ? ? ? ?
Constelation ? ? ? ? ? ? ? ? ?
DiSEqC ? ?
SCR EN 50494 ?
dCSS EN 50607 Upgrade 593234**
DVB-T digital measurements [Modulations: COFDM (QPSK, 16QAM, 64QAM)]
Image ? Upgrade 593231 ? ? ? ? ? ? Upgrade 593231
Power From 45 to 110 dB?V Upgrade 593231 ? ? ? ? ? ? Upgrade 593231
? From 45 to 120 dB?V Upgrade 593231 +?Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593231 +?Upgrade 593235**
CBER 9.9E-2 ? 1.0E-6 Upgrade 593231 ? ? ? ? ? ? Upgrade 593231
VBER 1.0E-3 ? 1.0E-8 ? ? ? ? ? ?
MER Up to 35 dB ? ? ? ? ? ?
C/N Up to 40dB ? ? ? ? ? ?
Echoes ? ? ? ? ? ? ?
Constelation ? ? ? ? ? ? ?
DVB-T2 digital measurements [Modulations: COFDM ( QPSK, 16QAM, 64QAM and 256 QAM)]
Image ? Upgrade 593231 + Upgrade 593232 Upgrade 593232 ? ? Upgrade 593232 ? ? Upgrade 593232
Power From 45 to 110 dB?V Upgrade 593231 + Upgrade 593232 Upgrade 593232 ? ? Upgrade 593232 ? ? Upgrade 593232
? From 45 to 120 dB?V Upgrade 593231 + Upgrade 593232 + Upgrade 593235** Upgrade 593232 + Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593232 + Upgrade 593235** Upgrade 593235** Upgrade 593235** Upgrade 593232 + Upgrade 593235**
LDPCBER* 9.9E-2 ? 1.0E-6 Upgrade 593231 + Upgrade 593232 Upgrade 593232 ? ? Upgrade 593232 ? ? Upgrade 593232
BCHBER* 1.0E-3 ? 1.0E-8 ? ? ? ?
Link Margin Up to 30 dB ? ? ? ?
MER Up to 35 dB ? ? ? ?
C/N Up to 40dB ? ? ? ?
Echoes ? ? ? ? ?
Constelation ? ? ? ? ?
DVB-C digital measurements [Modulations: 16QAM, 32QAM, 64QAM, 128QAM and 256 QAM]
Image ? ? Upgrade 593233 Upgrade 593233 ? Upgrade 593233 Upgrade 593233 ? Upgrade 593233
Power From 45 to 110 dB?V ? Upgrade 593233 Upgrade 593233 ? Upgrade 593233 Upgrade 593233 ? Upgrade 593233
? From 45 to120 dB?V Upgrade 593235** Upgrade 593233 + Upgrade 593235** Upgrade 593233 + Upgrade 593235** Upgrade 593235** Upgrade 593233 + Upgrade 593235** Upgrade 593233 + Upgrade 593235** Upgrade 593235** Upgrade 593233 + Upgrade 593235**
CBER 1.E-2 ? 1.0E-8 ? Upgrade 593233 Upgrade 593233 ? Upgrade 593233 Upgrade 593233 ? Upgrade 593233
MER Up to 38 ? ? ?
C/N Up to 40dB ? ? ?
Digital measurements ISBT-T/Tb
Image ? – – – – – – – ?
Power From 45 to 110 dB?V – – – – – – – ?
? From 25 to 120 dB?V – – – – – – – Upgrade 593235
Pre-VER (by layer) 9.9E-2 ? 1.0E-6 – – – – – – – ?
Post-VER (by layer) 1.0E-3 ? 1.0E-8 – – – – – – – ?
MER Up to 35 dB – – – – – – – ?
C/N Up to 40dB – – – – – – – ?
Echoes ? – – – – – – – ?
Constelation ? – – – – – – – ?
Analogue measurements
Level 25 and 125 dB?V ? ? ? ? ? ? ? ?
V/A ? ? ? ? ? ? ? ? ?
C/N Up to 45dB ? ? ? ? ? ? ? ?
Measurements and functions
Wifi analyzer ? Upgrade 593250 Upgrade 593250 Upgrade 593250 Upgrade 593250 Upgrade 593250 Upgrade 593250 Upgrade 593250 Upgrade 593250
IPTV analyser ? Upgrade 593251 Upgrade 593251 Upgrade 593251 Upgrade 593251 Upgrade 593251 Upgrade 593251 Upgrade 593251 Upgrade 593251
HEVC display (up to 1080p) ? Upgrade 593252 Upgrade 593252 Upgrade 593252 Upgrade 593252 Upgrade 593252 Upgrade 593252 Upgrade 593252 Upgrade 593252
Analog A/V display ? Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236 Upgrade 593236
Terrestrial plans ? Channel plans from different regions of the world
Satellite plans ? Channel plans from different regions of the world
Units ? dB?V, dBmV, dBm
Powering ? 24 Vdc / 140 mA max.
LNB: 13, 18 Vdc / 475, 370 mA max.
LNB tono ? 22 kHz
* Notes:
LDPCBER is the BER measurement before LDPC correction.
BCHBER is the BER measurement after LDPC corrector and before BCH correction.
** Ref. 593234 & 593235: Free upgrade when registering the equipment
Related products
-
Add to cartThe H30D+ is a lightweight, compact and robust equipment that includes a full range of tools and functionalities to successfully perform installation, maintenance and troubleshooting tasks in both analogue networks and digital networks with DVB-C channels.
-

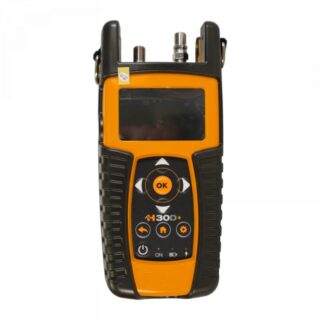

H30D+ (DVB-C) sprectrum analyzer with DOCSIS 3.1 Televes
KSh431,244.00Add to cartThe H30D+ is a lightweight, compact and robust equipment that includes a full range of tools and functionalities to successfully perform installation, maintenance and troubleshooting tasks in both analogue networks and digital networks with DVB-C channels.
-
Add to cartThe H30Crystal extends the H30 series of compact, portable field strength meters by incorporating powerful optical measurement functionality. The ability to analyze fiber optic networks, together with all the features of the previous models, make this equipment a versatile and complete tool for today’s professional installer.
-
MOSAIQ6 Advance DVB-T/T2/S/S2/SX/C+CI+Selective F.O.+WiFi…
KSh1,893,650.00Add to cartMosaiq6 Advance model: DVB-T/T2/S/S2/SX/C + CI + Selective F.O. + WiFi Analyzer + Analogue Measures + DAB/DAB+ + 4K UHD (Carrying Bag included) is a new high performance portable meter, with advanced functionalities and high precision in the measurement. The most automatic and intuitive market mode, intuitive interface and gestural commands.
With MOSAIQ6, technicians have at their disposal a powerful tool capable of measuring, analyzing and diagnosing return channel signals, radio, DAB and DAB +, television, fiber optic, WiFi or IPTV, in any scenario, no matter how complex it may be.
The MOSAIQ6 has an ultra-fast spectrum analyzer with a high resolution, which, together with the functionalities for analysis of echoes, allows to visualize any important aspect of the signal.
Stands out for
The only professional field meter with touchscreen gestural control
MOSAIC function: allows you to configure up to 6 widgets on the 8 “high resolution screen
Maximum comfort and performance when you can change the battery in the field
Ergonomics: Optimized shape to maximize movement efficiency
Efficient management: Meter always updated in the cloud
Digital processing in real time thanks to an ultra-fast spectrum analyzer
Features
High performance portable meter Intuitive.
Thanks to its innovative interface, designed exclusively to get the most out of its 8 “multitouch screen
All the information of the signal in a single screen. Mosaiq function, with up to 6 widgets confi gurable by the user
Powerful digital spectrum analyzer (sweep <10ms.) Range: 5MHz-3.3GHz Easily upgradeable. Spectrum analyzer with 1 GHz range with selectable span Specific measures on IP (TSoIP) Indicators PASS / FAIL: The icons indicate whether a measure is good, bad or regular for a quick and easy review. In this way, possible installer errors are reduced and decision making is improved. Field replaceable and rechargeable battery independently Customization by user profiles. Automatic channel scan Automatic satellite identification GPS for drive test and automatic storage of measurements. Detection and simulation of LTE interference. Specifications General information Screen 8 "TFT Touch 1024x768 Full Color Weight 2.150kg (without cover) Dimensions 250*210*60 mm Battery Exchangeable Li-ion (7.2VDC, 9000mAh) in field Autonomy >4 hours
Interfaces ETH, USB, HDMI, audio output (Jack), FC / APC fiber optic connector, GPS antenna connector
Storage capacity 32 Gb
Technical?features
Frequency
Resolution 1 KHz
Tuning Frequency or channel
Spectrum analyzer
Span 100 KHz, 1, 5, 10, 20, 50, 100, 200, 500 MHz, 1.0, 2.0, 3.3 GHz and other (any value between 100 KHz and 3.3 GHz)
RBW 500 Hz, 1, 3, 5, 10, 30, 50, 100, 300, 500 KHz, 1, 3, 5 MHz
Brands Up to 4, with delta function
Shooting by events ?
Waterfall ?
Traces Maximum, minimum
Reference level Automatic and manual
DVB-T Digital Measurements
Modulations COFDM ( QPSK, 16QAM, 64QAM)
Power From 20 to 128 dB?V
CBER 9.9E-2 ? 1.0E-6
VBER 1.0E-3 ? 1.0E-8
MER Up to 40 dB
C/N Up to 52 dB
Echoes ?
MER per carrier ?
Constellation ?
Bad packets ?
TILT ?
Attenuation ?
DVB-T2 Digital Measurements
Modulations COFDM ( QPSK, 16QAM, 64QAM y 256 QAM)
Power From 20 to 128 dB?V
LDPCBER 9.9E-2 ? 1.0E-6
BCHBER 1.0E-3 ? 1.0E-8
Link Margin Up to 30 dB
MER Up to 40 dB
C/N Up to 52 dB
Echoes ?
MER per carrier ?
Constellation ?
Bad packets ?
TILT ?
Attenuation ?
Multiple PLP ?
Digital Measures QAM (Annex A / B / C)
Modulations 4,16, 32,64 and 256 QAM
Power From 20 to 128 dB?V
BER 1.E-3 ? 1.0E-8
MER Up to 40 dB
C/N Up to 52 dB
Constellation ?
Bad packets ?
TILT ?
Attenuation ?
DVB-S Digital Measurements
Power From 20 to 128 dB?V
CBER 9.9E-2 ? 1.0E-6
VBER 1.0E-4 ? 1.0E-8
MER Up to 20 dB
C/N Up to 30 dB
Constellation? ?
Bad packets ?
TILT ?
Attenuation ?
DVB-S2X Digital Measurements
Modulations QPSK, 8PSK
Power From 20 to 128 dB?V
Link Margin Up to 10 dB
MER Up to 20 dB
C/N Up to 30 dB
LDPCBER 9.9E-2 ? 1.0E-6
BCHBER 9.9E-2 ? 1.0E-8
Constellation ?
Bad packets ?
TILT ?
Attenuation ?
Multi TS ?
PLS scrambling ?
DVB-S2 Digital Measurements
Modulations QPSK, 8PSK, 8APSK, 16 APSK and 32 APSK
Power From 20 to 128 dB?V
Link Margin Up to 10 dB
MER Up to 20 dB
C/N Up to 30 dB
LDPCBER 9.9E-2 ? 1.0E-6
BCHBER 9.9E-2 ? 1.0E-8
Constellation? ?
Bad packets ?
TILT ?
Attenuation ?
FM?
Level? ?
C/N Up to 52 dB
RDS ?
DAB / DAB + (* option ref. 596204)
Power From 20 to 128 dB?V
MER Up to 20 dB
C/N Up to 30 dB
BER 9.9E-2 ? 1.0E-6
Analog TV (* option ref. 596203)
Level? From 20 to 128 dB?V
V/A Up to 52 dB
C/N Up to 30 dB
Power supply
Power pre-amplifiers 5,13, ??18, 24Vdc and another (any value between 5 and 24V)
Maximum power supplied 12 W
Maximum current supplied 900 mA
LNB tone 22 KHz
DiSEqC ?
SCR | dCSS (EN 50494 | EN 50607) ? -
Televes H30Evolution sprectrum analyzer DVB-S/S2 + DVB-T
KSh432,454.00Add to cartH30Evolution is a field strength meter DVB-S/S2 + DVB-T that combines the best features of a portable and compact equipment – distinctive of the H30 series – with revolutionary functionalities. Thanks to the innovative multiscreen system based on Wi-Fi/Bluetooth,the meter may be remotely displayed and controlled using any Android or iOS device or a PC
