Fixed base recessed series 550 gray RPR Televes
KSh227,588.00

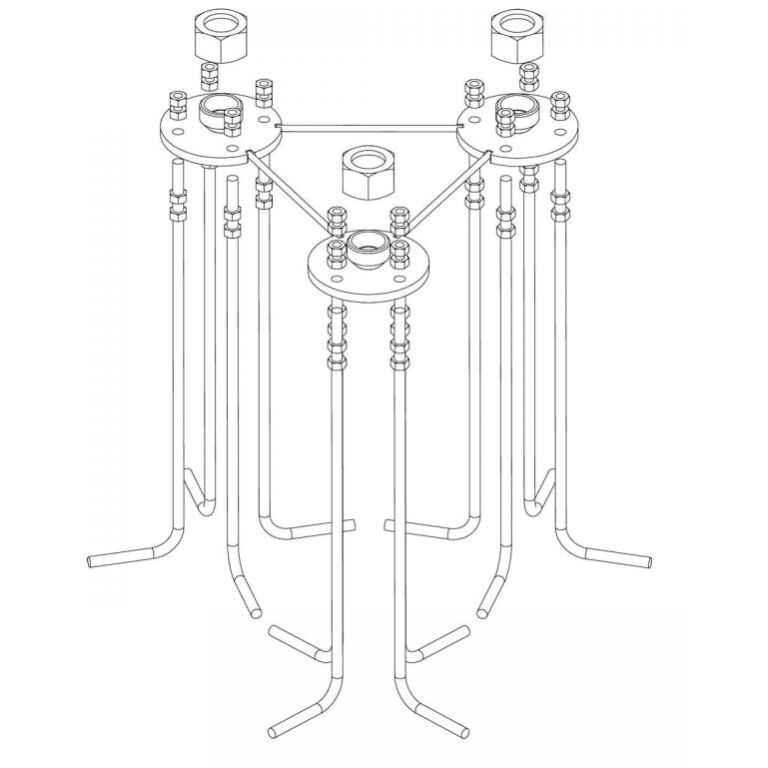

Tower series 550. Fixed base recessed. RPR. Televes 3143
Conceived as a reinforcement of the 450 tower, this series consists of support sections (lower and intermediate) to reach high heights (up to 120m) in extreme conditions (wind at a speed of 200km / h).
The surface plate (item 312901) allows the installation of the tilting base without the need for concrete.
Specifications
Reference ?3143
Material (1) Steel ST 37-2 ? 60 ext. x 4 mm esp.
Re min. 235 N / mm2 – Rn min. 360/510 N / mm2
(2) Steel S 275 JR ? 14 mm
Re min. 275 N / mm2 – Rn min. 410/560 N / mm2
Finish Primed + Oven-lacquered with Electrostatic Powder
Polyester 60-80 ?m (Red RAL 3020)
Weight Kg 82
Surface facing the wind m? 0.707 m? x 1.2 coef. = 0.848 m?
