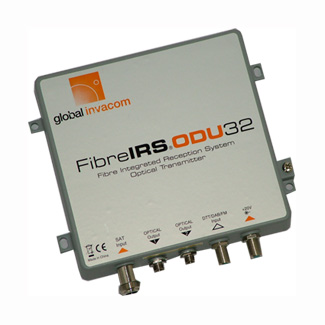

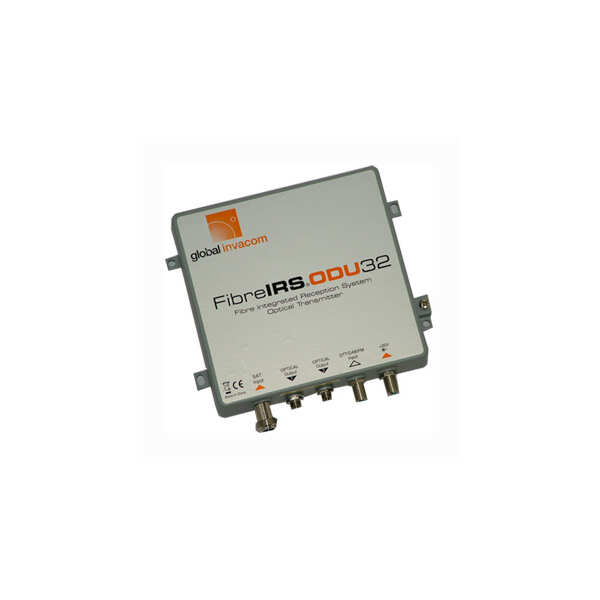

Global Invacom ODU32 1550 (D000209)

Fully weatherproof, the ODU32 is designed
for mounting at the antenna location. It accepts and combines signals from
the Wholeband LNB and digital terrestrial antennae (DTT/DAB/FM) which then
modulates a laser inside the ODU32. Two optical outputs (FC/PC) are provided
for distribution through a Passive Optical Network (PON) of FibreIRS Optical
Splitters. Each output of the ODU32 can feed a PON of 32 points or with
reduced splits support a reach of 5km.

Different FibreIRS GTU’s can be connected at any point (Quad, Quatro &
DTT/DAB/FM available).
* Subject to PON losses

• Combines Wholeband LNB & DTT/DAB/FM signals
• Distributes signals to 64 outlets via two 32 way PONs
• Fully weatherproof (IP65)
• PSU, mast strap & mounting bracket included in the kit
• 5km reach (Subject to PON Losses)
• Different FibreIRS GTU’s can be connected at any point (Quad,Quatro &
DTT/DAB/FM available).

SKU: D000209 Categories: Fibre Optic, Global Invacom, Satellite Tag: Fibre
IRS
