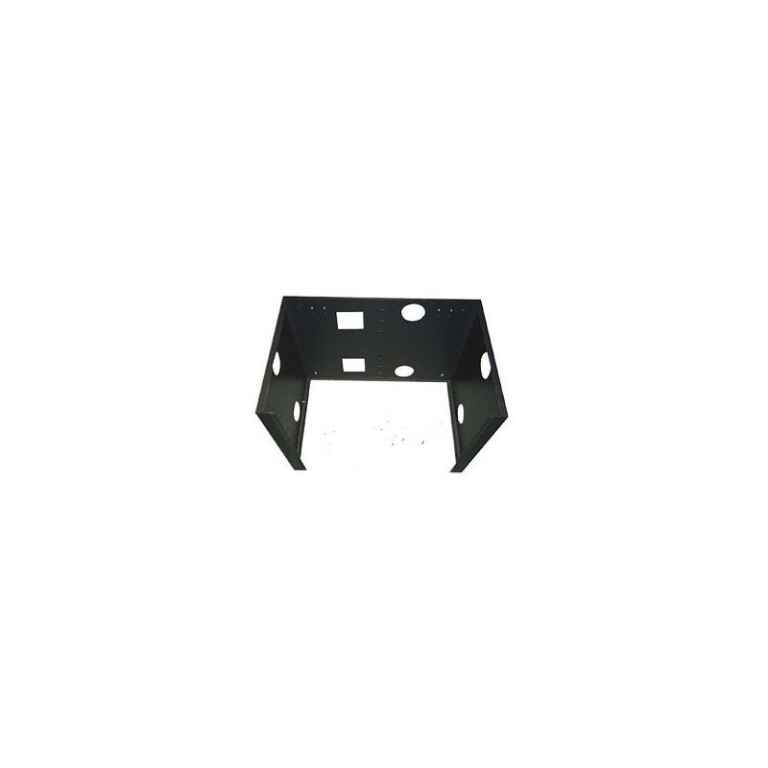

Ikusi BAS-004 Rack 19″ 4U x 500 x 300 mm
KSh9,424.00
IKUSI BAS-004. 19″ wall rack racks
Characteristics
19″ rack structure of a basic piece for wall installation, totally open.
Oriented to installations where a low static load is sufficient and the protection of the equipment is provided by other enclosures.
Technical specifications
MODEL BAS-002 BAS-004 BAS-006
Ref. 8225 8226 8227
Height units 2U 4U 6U
Material SPCC Cold Rolled Steel
Colour Black RAL9005
Thickness 2 mm
Mounting hardware included (4x) M6 metal screw and plug
(12x) M6 screw assembly
+ plastic washer
+ cage nut
Measures Width 500 mm 500 mm 500 mm
Deep 250 mm 250 mm 250 mm
High 89 mm 178 mm 267 mm
MANUAL / DATASHEET
