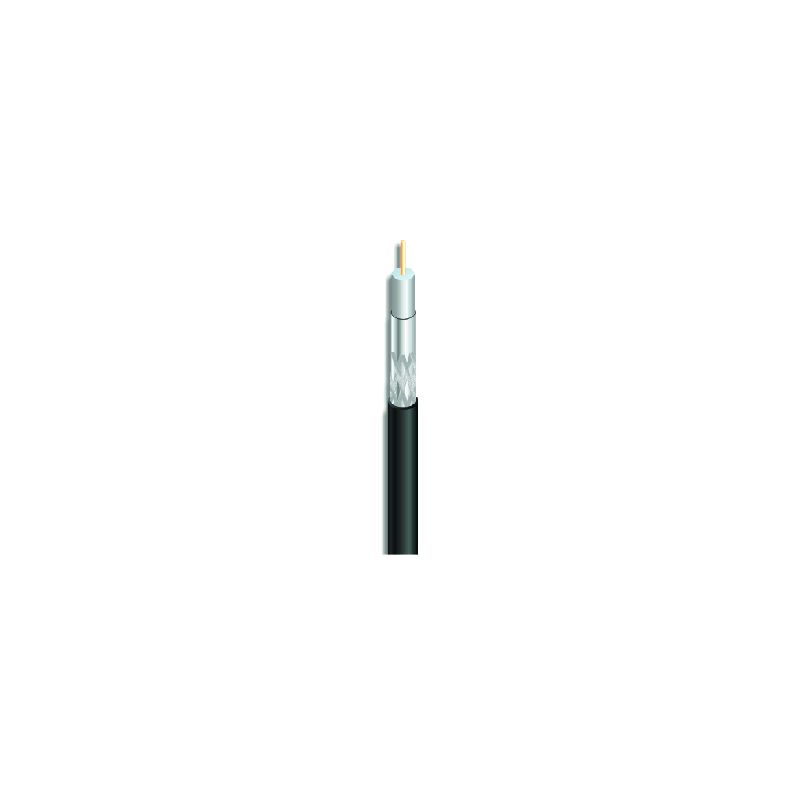

Ikusi CSL-644 Coil 100 m Coaxial cable CCS/Al. Class A. RG6….

IKUSI CSL-644. Euroclass Dca Coaxial Cables

Characteristics
Coil 100m
Cables with higher% MESH:
– All cables are Class A
– LSZH outer cover
Cables with the thickest VIVO:
– Improves the electrical propagation of the signal
– More robustness
Technical specifications
MODEL CUC-640 CUC-644 CUC-540 CUC-544 CUA-540 CUA-544 CUL-640 CSL-611 CSL-640 CSL-644 CSL-659
Ref. 2780 2782 2791 2790 2783 2785 2781 2786 2787 2788 2789
Standard EN 50117-2-4 EN 50117-2-5 EN 50117-2-4 2EN 50117-2-4 EN 50117-2-4 EN 50117-2-4 20EN 50117-2-4 EN 50117-2-1 20EN 50117-2-1 EN 50117-2-1 EN 50117-2-1
Type RG RG6 RG6 RG6 RG6 RG6 RG6 RG6 RG11 RG6 RG6 RG59
Interior Exterior Inside Interior Exterior Inside Inside Inside Interior Exterior Inside Interior Exterior Interior Exterior Interior Exterior Interior Exterior
Euroclass CPR DCA DCA DCA DCA DCA DCA DCA DCA DCA DCA DCA
Shielding class A class A class A class A class A class A class A class A class A class A class A class
Inner conductor
Diameter
mm Cu
1.13 Cu
1.13 Cu
1.02 Cu
1.02 Cu
1.02 Cu
1.02 Cu
1.13 CCS
1.63 CCS
1.13 CCS
1.13 CCS
0.8
Dielectric
Diameter
mm PE
4.8 PE
4.8 PE
4.8 PE
4.8 PE
4.8 PE
4.8 PE
4.8 PE
7.2 PE
4.8 PE
4.8 PE
3.7
Sheet
Mesh Cu
Cu Cu
Cu Cu
Cu Cu
Cu Cu
CCA (85%) Cu
CCA (85%) To the
To the Al / PET / Al
To the Al / PET / Al
To the Al / PET / Al
To the Al / PET / Al
To the
Number of threads in the mesh 128 128 96 96 128 128 112 112 112 112 112
External cover
Diameter
mm LSZH white
6.8 LSZH black
6.8 LSZH white
6.8 LSZH black
6.8 LSZH white
6.8 LSZH black
6.8 LSZH white
6.8 LSZH black
10.1 LSZH white
6.9 LSZH black
6.9 LSZH white
6.0
Impedance ? 75
Attenuation / 100m
5 MHz
50 MHz
200 MHz
300 MHz
470 MHz
862 MHz
1000 MHz
1750 MHz
2150 MHz dB
1
4.5
8.5
10.5
13.2
17.4
19.6
26.1
29.5
1
4.5
8.5
10.5
13.2
17.4
19.6
26.1
29.6
1
5.0
8.7
10.7
13.2
18.3
20.0
28.5
31.5
1
5.0
8.7
10.7
13.2
18.3
20.0
28.5
31.6
1
5.0
9.0
10.7
13.2
18.3
20.0
28.5
31.7
1
5.0
8.7
10.9
14.0
19.0
21.0
28.5
31.5
1
5.0
8.7
10.9
14.0
19.0
21.0
28.5
31.0
1.3
3.5
6.0
7.5
9.5
12.5
14.5
18.0
20.0
1.9
5.5
9.5
11.0
14.0
19.0
21.0
27.5
30.0
1.9
5.5
9.5
11.0
14.0
19.0
21.0
27.5
30.1
2.8
6.5
12.0
14.5
18.5
24.0
27.5
36.0
40.0
Dimensions (cm)
Packed Weight (kg) 55.5 x 28 x 27.5
22 55.5 x 28 x 27.5
18 55.5 x 28 x 27.5
twenty-one 55.5 x 28 x 27.5
twenty-one 55.5 x 28 x 27.5
twenty 55.5 x 28 x 27.5
16.5 55.5 x 28 x 27.5
19.5 55.5 x 28 x 27.5
18.5 55.5 x 28 x 27.5
18.5 55.5 x 28 x 27.5
18.5 55.5 x 28 x 27.5
16
Coiled supply 4x 100 m 4x 100 m 4x 100 m 4x 100 m 4x 100 m 4x 100 m 4x 100 m 1x 200 m 4x 100 m 4x 100 m 4x 100 m
