Wood coil 500m coaxial cable SK2003plus Black Televes

Share On:

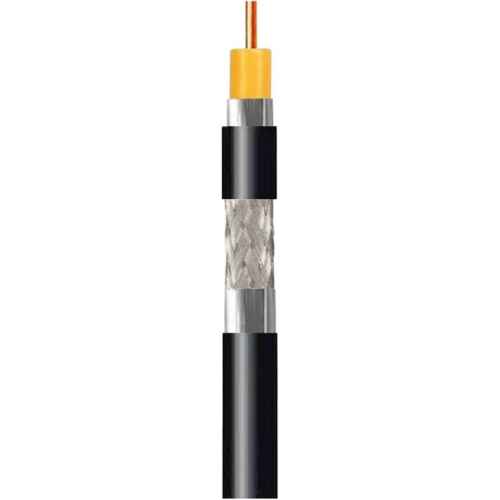

Coaxial cable with both conductors made of copper (Cu/Cu) and excellent braid coverage (82%). Triple shielded (TSH) cable, equipped with a second foil for extra shielded. An 18AtC cable with UV-resistant LSFH sheath.?Black. Wood coil 500m. Televes 414004

Coaxial cable with both conductors made of copper (Cu/Cu) and excellent braid coverage (82%). Triple shielded (TSH) cable, equipped with a second foil for extra shielded. An 18AtC cable with UV-resistant LSFH sheath.
Highlights
Copper conductors
Class A+ shielded
Dca Euroclass
Features
External UV-resistant LSFH sheath, black colour
75 Ohm characteristic impedance
Wood coil 500m
?

Class A+ Trishield (TSH) coaxial cable
With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.

They belong in EN 50117 standard Class A+, according to their structural properties:

For 5 MHz – 30 MHz => TI < 2.5 m?/m For 5 MHz - 1000 MHz => SA > 95 dB
For 1000 MHz – 2000 MHz => SA > 85 dB
For 2000 MHz – 3000 MHz => SA > 75 dB
Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Specifications
Type SK2003plus
Standard EN 50117-2-5
EuroClass Dca
Class A+
Inner conductor ? mm 1.02
Material CU
Res. Ohm/Km <22 Dielectric ? mm 4.6 Material PEE Overlapped foil Aluminium + Polyester Braid Material CuSn (98%Cu) Dimensions (Ncx Nsx ?) 24 x 7 x 0.10 Res. Ohm/Km <11 Coverage % 82 2-nd foil Yes Petrol-Jelly No Outer sheath ? mm 6.7 Material LSHF, UV resistant Minimum bending radius mm 33.5 Screening attenuation @ 1GHz dB >95
Capacitance pF/m 54
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m ?2.5
Velocity ratio % 84
Attenuations (dB/m)
Frequency (MHz)
5 0.02
47 0.05
90 0.06
200 0.09
500 0.14
800 0.18
1000 0.21
1350 0.24
1750 0.28
2050 0.3
2300 0.32


https://adishnetservices.com/wp-content/uploads/2023/11/wood-coil-500m-coaxial-cable-sk2003plus-black-televes-300×300.jpg?wpId=83145

Brand

Manufacturer

TELEVES
