Ikusi HDTC-694V Compact Antenna channel 48 (2nd Dividend)
KSh5,010.00
IKUSI HDTC-694V. COMPACT serie antennas. Reduced size and easy to install.
Features?
The smallest antenna range FLASHD for reception of TV signals in the UHF band, formed by a dihedral reflector made up of four aluminium tubes and a?dipole (the same as the one in the FLASHD antenna).
For vertical and horizontal polarization, allowing variation of elevation angle.
Minimum packaging volume for transport and easy assembly without tools.
Versatility in the pallet from 30cm to the desired height, in increments of 10cm
Cable connection: F type connector. 1 screw-on plug and 1 rubber protection cap are supplied.
Clamping system for masts ? 25 to 50 mm
Technical specifications
REF. 1811 1811
Channels 21 – 48 (470-694 MHz) 21 – 60 (470-790 MHz)
Nominal gain dB 13
Front-to-back ratio dB ? 16
Beamwidth H / V 60? / 80?
Windload N 130 Km/h : 18
150 Km/h : 23
Length cm 80
Quantity boxed 10
Color green
?
MANUAL/DATASHEET
Related products
-
Antenna Triax DIGI 14, LTE 700, Ch 21-48
KSh7,130.00Add to cartDisruption free installation from rooftop to outlet.
Features
Interference protection from LTE 700 & 800 signals
Quick and easy installation with semi-assembled aerials
Mechanical filtering for higher gain
Reliable high-quality aerials secures end-consumer satisfaction
Corrosion and weather proof dipole housing
Designed to receive DTT signals in the 470…694 MHz range
Access to reliable, expert support from TRIAX
Specifications
Type Digi 14
FREQUENCY
Band (frequency) BIV/V
Channels 21…48
Frequency range UHF 470…694 MHz
LTE protection 700
GAIN
Gain 13.5 max dBi
Gain @ 474 MHz (Ch. 21) 10.9 dBi
Gain @ 694 MHz (Ch. 48) 11.5 dBi
Gain @ 602 MHz (Ch. 37) 11.1 dBi
LOSS
Rejection @ 758 MHz (Ch. 56) 3.8 dB
Rejection @ 788 MHz (Ch. 60) 8.3 dB
ELECTRICAL
Front to back ratio – horisontal 23 dB
CONNECTORS
Connector Type F-female
MECHANICAL
Beamwidth horisontal ?30 ?
Bracketry Mast
Elements 14
Packaging Depth 1,100 m
Packaging Height 0,075 m
Total Weight 1,250 kg
Packaging Width 0,230 m
Product Length 1085 mm
Main Material Aluminium
Net Weight 0,800 kg
Packing QTY 1
Tara Weight 0,450 kg
Packaging Volume 0,019 m3
Weight (kg) 0 kg
Product Width 480 mm
Windload 54 N -

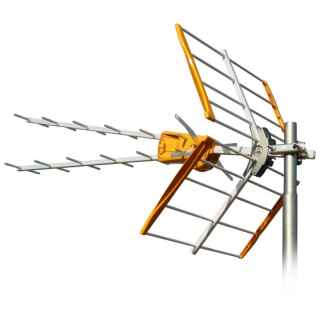

Add to cartThe VZenit antenna has a V-type structure: it consists in two vertically stacked Yagi in phase, which results in a compact antenna thanks to its excellent ratio between gain and length. For UHF reception it includes a filtering feature with a high rejection for bands beyond channel 48, without losing flatness in the frequency response of the pass-band (channels 21-48).?
-
