Ikusi HDTN-694V Nano Antenna channel 48 (2sd Dividend)
KSh4,480.00
IKUSI HDTN-694V. NANO serie antennas. Reduced size and easy to install.
Features
The smallest antenna range FLASHD for reception of TV signals in the UHF band, formed by a dihedral reflector made up of four aluminium tubes and a dipole (the same as the one in the FLASHD antenna).
For vertical and horizontal polarization, allowing variation of elevation angle.
Minimum packaging volume for transport and easy assembly without tools.
Versatility in the pallet from 30cm to the desired height, in increments of 10cm
Cable connection: F type connector. 1 screw-on plug and 1 rubber protection cap are supplied.
Clamping system for masts ? 25 to 50 mm
Technical specifications
REF. 1825 1813
Channels 21 – 48 (470-694 MHz) 21 – 60 (470-790 MHz)
Nominal gain dB 12
Front-to-back ratio dB ? 16
Beamwidth H / V 60? / 80?
Windload N 130 Km/h : 15
150 Km/h : 20
Length cm 50
Quantity boxed 5
Color green
?
MANUAL/DATASHEET
Related products
-
Add to cartDAT BOSS UHF, 2nd Digital Dividend (LTE700) If the DAT BOSS can’t receive it, nothing can Intelligent antenna including the BOSSTech system, designed for quality reception of UHF (DTT), optimizing LTE band rejection up to channel 48 (698MHz). Highlights High dynamic range: it allows the reception of high-quality TV in a variety of critical situations, …
Terrestrial Antenna DAT BOSS UHF (C21-48) G 42dBi LTE700…Read More
-

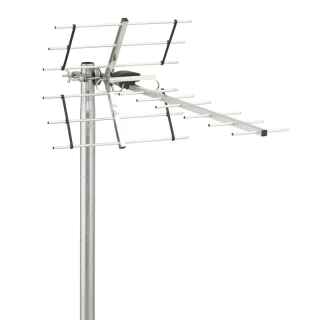

Antenna Triax DIGI 14, LTE 700, Ch 21-48
