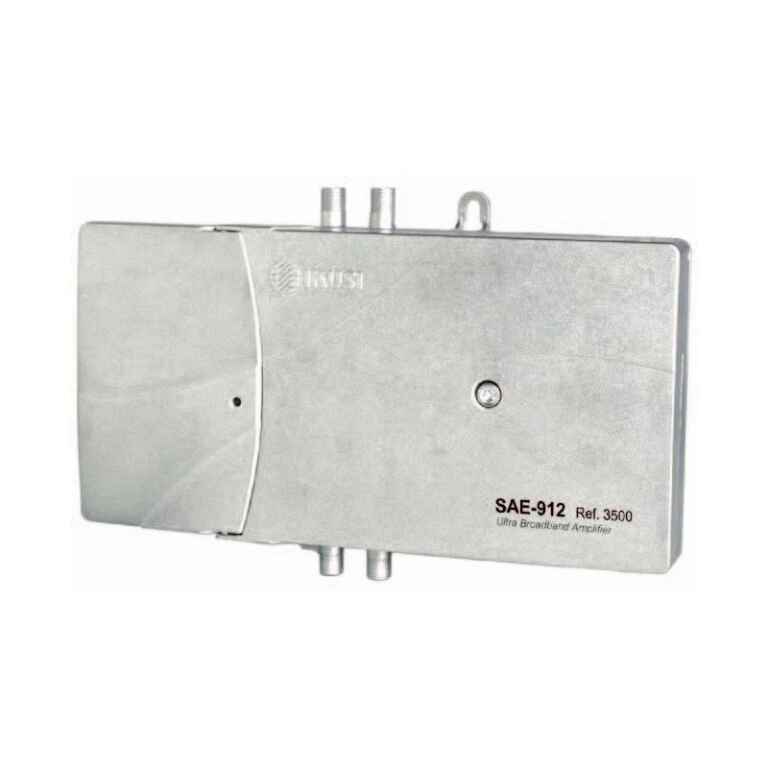

Ikusi SAE-912: Extension amplifier Terr:118dB?V Sat:120dB?V
KSh43,848.00
Main features
Distribution of terrestrial TV, satellite IF and multimedia signals.
1 RF input – 1 RF output.
Terrestrial and satellite frequencies amplified separately. Passive or active return path, with respective 35/45 MHz or 65/86 MHz splits.
Attenuation and equalization adjustments of TV and IF signals by potentiometer.
Zinc alloy housing with protective cover.
75 W ports.
F connectors.
Wall fixing. Indoor mounting.
Dimensions: 222 x 140 x 44 mm.
Additional info
Data Sheet
Installation Manual
Related products
-
Add to cartThe Ikusi TAE1125 Extension Amplifier is an amplifier with return path for the distribution of terrestrial TV signal with a 125dBuV signal level output.
Main features
Distribution of television, sound and interactive multimedia signals.
The TAE1125 model, ideal for hotels and dense multiple dwelling units.
862 MHz amplifiers with active return path on all models.
Mains or line powering 50/60. Opetation shown by led. Mains lead insertable in connection socket.
Attenuation and equalization adjustments of TV signals by potentiometer. Selection of return signal attenuation by the
insertion of small plug-in links provided.
Forward and reverse output test.
Power Doubling technology (TAE1125) and Push-pull technology (TAE1120 and TAE1118).
Zamak housing with protective cover for the adjustment controls. Wall fixing. Indoor mounting. Grounding terminal.
Removable Power Supply.
Additional infoData Sheet
Installation Manual
-
Add to cartUHF line amplifier, 13dB. 470…694 MHz (Ch.48) LTE700/5G, ?F? connector. Low-gain (13dB) UHF amplifier to be connected to the headend devices in order to adapt their input level.
-
Add to cartTLA 347 is a 2-way SAT Post / Booster amplifier for 2-wire SAT-IF distribution plants.
Additionally, the amplifier offers a passive return path through SAT1 and SAT2. the ability to obtain a terrestrial signal (Terr.) through SAT1.
Gain and pending for both SAT and Terr. It can be adjusted on each of the transmission paths separately.
The terrestrial frequency range is limited to 7694 MHz to reject LTE 700 interference.
Specifications
ORDER INFORMATION
EAN Number 5702663003835
CHARACTERISTICS
Type Amplifier – multiband
Return Path 5 … 30 MHz
Max. output level SAT @ -35 dB IMD3 120 dB?V
Max. Output level @ -60 dB IMD 116 dB?V
FREQUENCY
Frequency range 5 … 2150 MHz
Frequency range SAT 950 … 2150 MHz
Frequency range TER 5 … 694 MHz
GAIN
Gain – TER 38 dB (Ret: -4) dB
Gain – Satellite 1 [950-2150 MHz] 38 dB
Noise figure SAT 8 dB
Noise figure TER 6 dB
Slope 0 … 15/16 dB
LOSS
Attenuation 0 … 20 dB
RETURN LOSS
Return Loss IN SAT: 10.0 / TER: 8.0 / RET: 8.0 dB
Return Loss OUT SAT: 8.0 / TER: 8.0 / RET: 8.0 dB
ELECTRICAL
Impedance 75 ?
OPERATIONAL
AC Supply voltage 180 … 240/47 … 63Hz VAC
CONNECTORS
Connector Type F-female
Number of inputs 2x SAT / 1x TER / RP
Number of outputs 2 SAT1 + TER + RP / SAT2 + TER + RP, 2x (30dB TP)
MECHANICAL
Packing QTY 1
Net Weight 0.950 kg
Total Weight 0.950 kg -
Add to cartDomestic amplifier with 3 outputs (2+TV) to extend the terrestrial television domestic network.?The TV output provides a lower gain for direct connection to the television set (no outlet installation).?Equipped with LTE700/5G filtering. Televes 552220
-
Triax TMSA 13 Line Amplifier
KSh43,414.00Add to cartTMSA 13 LINE AMP
The TMSA 13 Line Amp, with 13 inputs and 20dB gain, compensates for the cable loss in your designed multiswitch systems.
Powered directly via the DC input, or line powered via any Sat port.
Specifications
ELECTRICAL
Impedance 75 ?CONNECTORS
Connector Type F-female
Connector DC F-female
Number of trunk inputs 13
Number of trunk outputs 13
Colorcoding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, White=TERCHARACTERISTICS
Input polarity gain control TER 0?10 dB
Input polarity gain control SAT 0?10 dB
Max. output level SAT @ -35 dB IMD3 110 dB?V
Max. output level TER @ -60dB IMD3 105 dB?V
LNB current max. 3000 mAFREQUENCY RANGE
Frequency range TER Active: 47?694 – 47…862 / Passive: 5…862 MHz
Frequency range SAT 950?2200 MHzGAIN
Gain – SAT 20 ? 2dB @0dB slope or 16?22 ? 2dB @6dB slope dB
Gain – TER 15 ? 2 dBLOSS
Insertion loss – TER 5 dBISOLATION
Isolation SAT to TER > 30 dB
Isolation cross polarisation H/V > 30 dBRETURN LOSS
Return loss SAT > 10 dBOPERATIONAL
LINE power DC voltage (max.) 15?20 VDC
LINE power current (max.) 2000 mA
PSU output DC voltage 18 VDC
ESD protection 4KV inputs & sub outputs
DC Current consumption 600mA max. @18V DC mA
PSU/adapter Art number 318162, 318163, 318164
Control LEDs Green LED (Power)
Temperature – operating -20?+50 ?CMECHANICAL
Dimensions product (H x D x W) 260 x 65 x 175 mm
Packing QTY 1
Product Height 175 mm
Product Width 255 mm
Product Depth 65 mm
Packaging Height 0.070 m
Packaging Width 0.280 m
Packaging Depth 0.182 m
Packaging Volume 0.000 m3
Net Weight 1.038 kg
Tara Weight 0.151 kg
Total Weight 1.189 kgWebsite Availability
