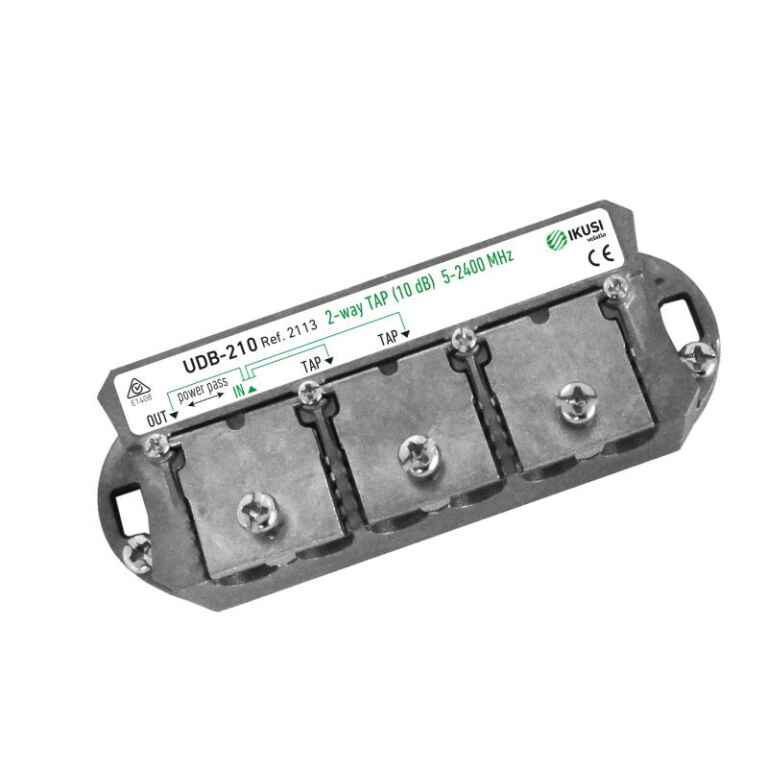

Ikusi UDB-210 Tap 2 outputs 10 dB FAST
KSh1,606.00
IKUSI UDB-210. Passive quick-connect elements
Features
1, 2, 4, 6 and 8-way shielded directional tap-offs. 5-2400 MHz?
Fast and safe connection without the need for connectors?
Low insertion loss?
Zamak chassis with high-quality shielding?
Grounding facilities
Technical specifications?
REF. 2113 2114 2115 2116
Number of outputs 2
Frequency range MHz
Tap-off loss (? 1 dB) dB 10 15 20 25
Through loss 5-862 MHz dB ?2,3 ?1,4 ?1,0 ?0,9
862 -2150 MHz ?3,5 ?2,5 ?2,0 ?1,8
2150-2400 Mhz ?4,0 ?3,0 ?2,5 ?2,5
Directional isolation 5-862 MHz dB ?28 ?30 ?35 ?35
862 -2150 MHz ?25 ?27 ?29 ?30
2150-2400 Mhz ?23 ?23 ?23 ?23
Tap-to-tap isolation 5-862 MHz dB ?30 ?34 ?36 ?38
862 -2150 MHz ?25 ?27 ?30 ?33
2150-2400 Mhz ?23 ?27 ?27 ?28
MANUAL/DATASHEET
