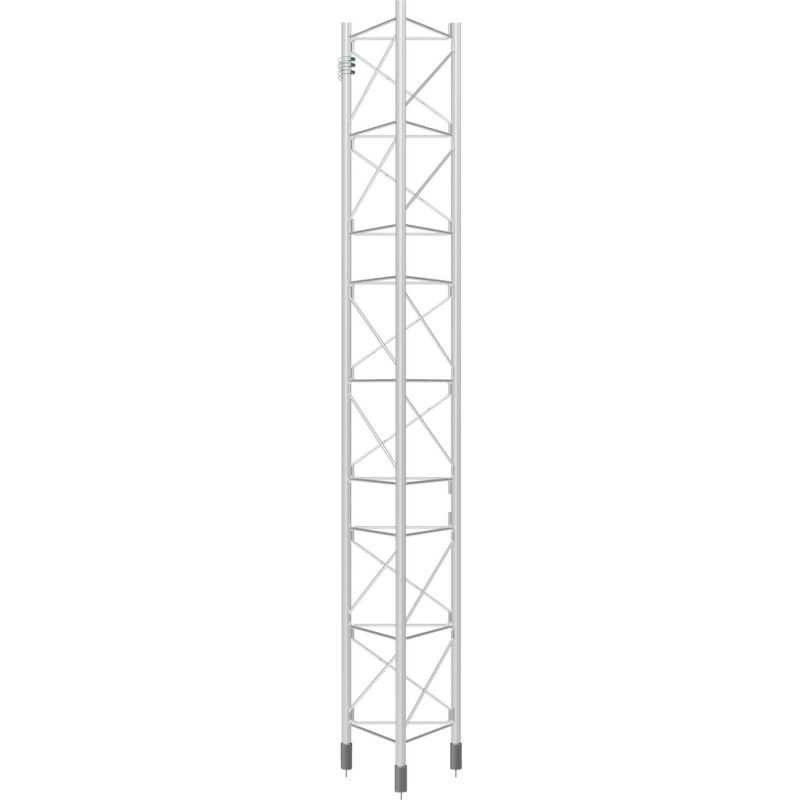

Intermediate Section Galvanized hot 3m Tower 450XL White…
KSh260,150.00
Intermediate section of 3m for the formation of a tower of the series 450 XL Reinforced. White.?Televes 313113
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
Intermediate section of 3m for the formation of a tower of the series 450 XL Reinforced.
Highlights
Embedded anchoring system with security bolts
Outstanding stiffness and mechanical strength
Maximum height of the 450 XL tower: 120m (as per calculation conditions)
Features
The hot-dip galvanizing surface treatment provides enhanced durability in adverse corrosion conditions
Colour paint, oven-lacquering with polyester electrostatic powder
Specifications
Reference 313113
Description Intermediate section tower M450XL, White color (RAL 9002)
Manufacturing
(1) Steel S235JR ? 40 x 3 mm thickness Re min. 235 N / mm2 – Rn. 360 N / mm2
(2) Steel S 275JR ? 12 mm Re min. 275 N / mm2 – Rn. 410 N / mm2
(3) Steel S355 Diameter 50×4 mm thickness Re min.355N / mm2 – Rn 510N / mm2
Finish
Hot galvanized (EN ISO 1461) Coating 85?m thickness Baking oven with electrostatic polyester powder 60-80?m
Weight 46.5 Kg
Surface facing the wind 0.517 m2 x 1.2 coef. = 0.621 m2
