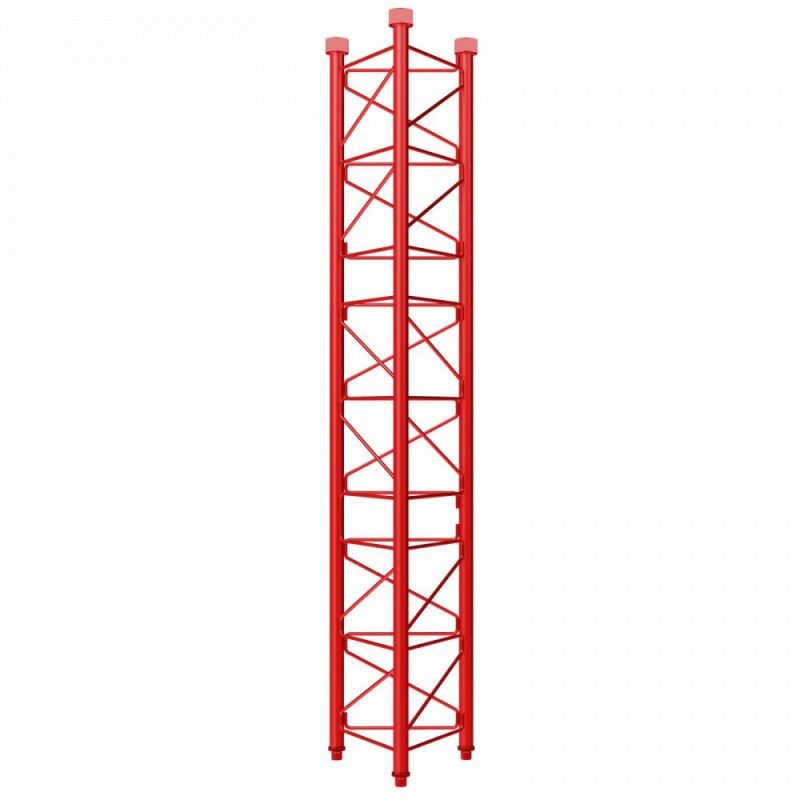

Intermediate section Galvanized hot 3m turret series 550 Red…
KSh459,074.00
3m middle section for the erection of a 550 series tower.?550 tower maximum height: 140m (as per calculation conditions).?The hot galvanizing surface treatment provides enhanced durability in adverse corrosion conditions.?Red colour (RAL 3020). Televes 314002
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
3m middle section for the erection of a 550 series tower.
Highlights
Anchoring system with union nuts
550 tower maximum height: 140m (as per calculation conditions)
Features
The hot galvanizing surface treatment provides enhanced durability in adverse corrosion conditions
Colour paint, oven-lacquering with polyester electrostatic powder
Specifications
Reference 314002
Description Pylon 550 intermediate section. Red color
Manufacturing (1) Steel ST 37-2 ? 60 ext. x 4 mm thick.
Re min. 235 N / mm2 – Rn min. 360/510 N / mm2
(2) Steel S 275 JR ? 14 mm
Re min. 275 N / mm2 – Rn min. 410/560 N / mm2
Finish
Hot lacquering with polyester spray
60-80 ?m (Red RAL 3020) (White RAL 9002)
GALVANIZED TO HOT
Weight 85 Kg
Surface facing the wind 0.718 m2 x 1.2 coef. = 0.862 m2
