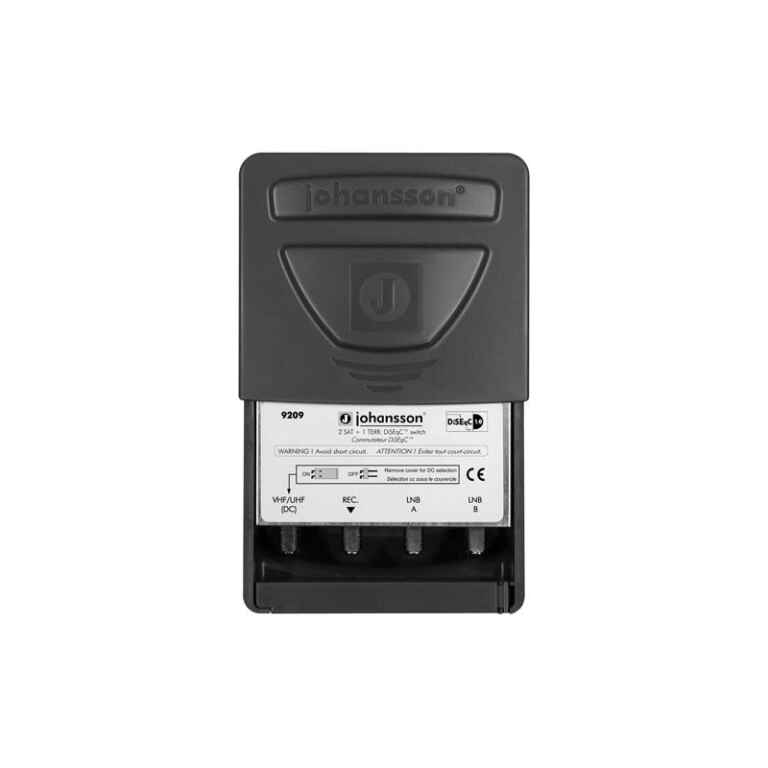

Johansson 9209 Switch Diseqc inputs 2 Sat + 1 Terr
KSh4,550.00
Number of inputs 2 SAT + 1 TERR
Return signal Tone Burst and DiSEqC 1.0
Frequency range Terr.: 40-860 MHz – Sat.:950-2150 MHz
Insertion loss Terr.: 2 dB – Sat./Terr.: 3 dB ? 1 dB
Terr./Sat. Rejection: 30 dB min. – Sat./Terr.: 20 dB min.
Rejection between inputs 15 dB min.
Switchable ground current path
Consumption 25mA max.
Dimensions 112 x 98 x 56mm
