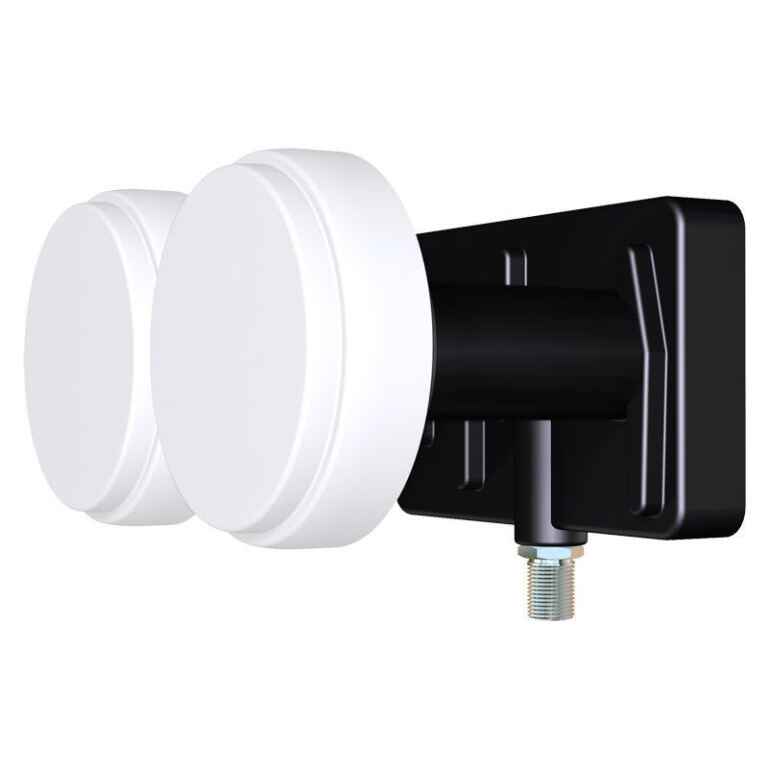

LNB Inverto Single Monoblock 23mm, 6? for 80cm dish
KSh3,598.00
Specifically designed for the European DTH markets, this Monoblock LNB allows for dual satellite reception. It can be used for the broadcast reception (on an 80cm dish antenna) of any two satellites spaced with 6?. It enables the signal distribution to a Set Top Box with Single Tuner. The LNB is optimized for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.
Features
Low Phase Noise, DVB-S2 (HDTV) compliant
Low Noise Figure (0.2 dB)
Low Power Consumption
Very high Cross Polarization Isolation
Very high Frequency Stability
Specificatiosns
New ref. 3522
Old ref. IDLB-SINM21-MNOO6-8PP
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.2 dB Typ. (0.7 dB Max.)?
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) – 90 dBc / Hz Max.
Conversion Gain 50 ~ 62 dB?
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band)? +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Control: Satellite A/B Selection DiSEqC 1.0 (Sat A* = Hotbird 13? East, ?Sat B = ASTRA 19.2? East)
Cross Polarization Isolation 22 dB Min.
Output VSWR 2.5 : 1?
In-Band Spurious – 60 dBm Max.
Current Consumption 150 mA Max. @ 11 ~ 20 V
Operating Temperature – 30 ?C? ~? + 60 ?C
Output Impedance 75 ?
Output Connector F-Type (Female)
Weight 270 g
Recommended Dish Size 75 ~ 85 cm (F/D = 0.6)
Monoblock Mounting Bracket 23 mm
