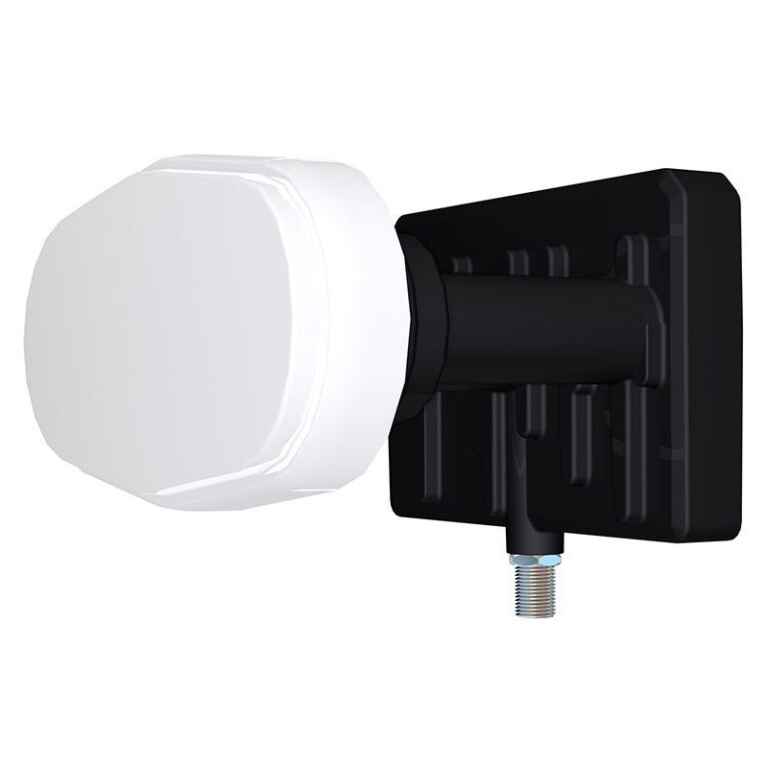

LNB Inverto Single Triplefeed 23mm, 13?E + 16?E + 19.2?E for…
This Triple Feed LNB is a monoblock LNBF for Ku-band satellite reception from orbital positions 13?E, 16?E and 19.2?E in Central European countries. It is intended to be installed with commercially available satellite dishes that have the following characteristics:
85cm wide parabolic offset reflector
40mm feed clamp with ~7mm profile (the LNB will be supplied with 40mm ring adaptor)
F/D = 0.6
It features a frequency range of 10.7 to 12.75GHz divided into Low Band (10.70 to 11.70GHz) and High Band (11.70 to 12.75GHz). It receives waves with horizontal and vertical polarization. The LNB provides one switchable IF outputs (Single model). The output carries also power supply and control signals. Output port is F type. DiSEqC1.0 commands allow switching the output to a particular band and orbital position.
The DiSEqC ODU allocation is the following: “ODU A” corresponds to 16E, “ODU B” to 13E and “ODU C” to 19.2E. As long as no DiSEqC command has been received, the selected orbital position is 16E (ie DiSEqC A). The LNB comprises three feeds, one for each orbital position. The feeds allow mounting into the feed clamp of the satellite dish. The feeds will be marked with ?13?E?, ?16?E? and ?19.2?E? respectively.
The DISEqC positions (A/B/C) and the respective orbital positions (16E/13E/19.2E) are marked on the LNB housing. The LNB is supplied with 40mm plastic ring adapter.
Hotbird 13? East – Eutelsat 16? East – Astra 19.2? East
Main Features
Low Phase Noise, DVB-S2 (HDTV) compliant
Low Noise Figure (0.2 dB)
Low Power Consumption
Very high Cross Polarization Isolation
Very high Frequency Stability
Specifications
New ref. 5068
Old ref. IDLM-SINM20-TRPMN-8PP
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
O/P Frequency Range 950 ~ 1950 MHz
LO Frequency 9.75 GHz
Noise Figure 1.0(max) dB
High Band Input Frequency Range 11.7 ~ 12.75 GHz
O/P Frequency Range 1100 ~ 2150 MHz
LO Frequency 10.6 GHz
Noise Figure 1.0(max) dB
LO Initial Accuracy ? 1.0 MHz
LO Temperature Drift ? 3.0 MHz
LO Phase Noise @ 1K Hz -55 dBc / Hz
LO Phase Noise @ 10K Hz -80 dBc / Hz
LO Phase Noise @ 100K Hz -100 dBc / Hz
Conversion Gain 50 ~ 62 dB
Gain Variation 6 [max] dB
Output 1 dB Compression Point 0.0 [min.] dBm
Crosstalk Isolation 20 (min)dB
Output VSWR 2.5 : 1~
Output Spurious (inter-modulation) -55 [max] dBm
DC Power 10~20/150 [ max.] DCV/mA
Working Temperature – 30 ~ + 60 ?C
Output Impedance 75 ?
Polarity , Band & Satellite Selection V, L, 16?E 13V, 0kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection V, H, 16?E 13V, 22kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection H, L, 16?E 18V, 0kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection H, H, 16?E 18V, 22kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection V, L, 13?E 13V, 0kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection V, H, 13?E 13V, 22kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection H, L, 13?E 18V, 0kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection H, H, 13?E 18V, 22kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection V, L, 19.2?E 13V, 0kHz, DiSEqC1.0: Sat C
Polarity , Band & Satellite Selection V, H, 19.2?E 13V, 22kHz, DiSEqC1.0: Sat C
Polarity , Band & Satellite Selection H, L, 19.2?E 18V, 0kHz, DiSEqC1.0: Sat C
Polarity , Band & Satellite Selection H, H, 19.2?E 18V, 22kHz, DiSEqC1.0: Sat C
Related products
-
Add to cartThe LNB is supplied with a 40 mm plastic ring adaptor to allow mounting onto a standard 40mm LNB holder.
Specifically designed for the European DTH markets, this Monoblock LNB allows for dual satellite reception from orbital positions 13?E and 19.2?E over a single 80cm offset satellite dish antenna with F/D = 0.6 and their distribution to up to four independent receivers.
The LNB receives satellite broadcasts with horizontal and vertical polarizations within the 10.7 ~ 12.75 GHz frequency range. It provides four universal output ports with 950 ~ 2150 MHz IF frequency range. Each output port (F-type) carries also power supply and control signals. DiSEqC 1.0 commands allow selecting the orbital satellite position. As long as no DiSEqC command has been received, the default feed is of the “Sat A” position (i.e. 13?E). Polarization (vertical/horizontal) and band (low/high) are selected using 13/18VDC and 0/22kHz control signals.
The LNB is optimized for Ultra High Definition (4K/8K) transmissions and provides excellent Cross polarization isolation, Phase Noise and Noise Figure performances. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception of Hotbird 13?E and Astra 19.2?E across Europe.
Features
Low Phase Noise, DVB-S2 (HDTV) compliant
Low Noise Figure
Low Power consumption
Very high Cross Polarization Isolation
Very high Frequency stabilitySpecifications
Technical specifications
Low band input frequency range 10.7 GHz ~ 11.7 GHz
Low band output frequency range 950 MHz ~ 1950 MHz
Low band LO frequency 9.75 GHz
High band input frequency range 11.7 GHz ~ 12.75 GHz
High band output frequency range 1100 MHz ~ 2150 MHz
High band LO frequency 10.6 GHz
Noise figure 0.6 dB typ., 1.0 dB max.
LO frequency accuracy @ 25? C ?0.5 MHz max.
LO temperature drift ?1 MHz max.
LO initial accuracy ?0.5 MHz max.
LO phase noise @ 1 kHz -75 dBc/Hz
LO phase noise @ 10 kHz -80 dBc/Hz
LO phase noise @ 100 kHz -90 dBc/Hz
Conversion gain 55 dB ~ 65 dB
Gain ripple (over 26 MHz bandwidth) ?0.75 dB max.
Gain variation (over full band) 6 dBpp max.
Image rejection 50 dB min.
1 dB compression point (@ output) 0 dBm min.
Cross talk 22 dB min.
Control, Satellite A/B/C/D Selection DiSEqC 1.0: Sat A* = Hotbird 13?E, Sat B = Astra 19.2?E* Default Satellite Reception
Polarity info Horizonatal polarization: 18 VDC
Vertical polarization: 13 VDC
Low band: 0 kHz
High band: 22 ?4kHz
Output VSWR 2.0 : 1 max.
In band spurious level -65 dBm max.
Current consumption 180 mA max. per port (10 VDC ~ 20 VDC)
Operating temperature -30 ?C ~ +60 ?C
Output impedance 75 ?
Output connector type F-Type (female)
Recommended Dish Size 80 cm (F/D = 0.6)
Weight 311.6 g -
Add to cartLnb Twin offset Televes of low noise figure 0.5 dB and high gain that allow the capture of signals in the KU band. 2 outputs: HA / VA / HB / VB. It allows to send signal to two satellite tuners, working these completely independently. Televes 4332
-
LNB Televes single Offset Universal
KSh2,116.00Add to cartRange of universal LNBs low noise figure and high gain that allow capturing signals in the KU band.
-
Read moreInverto?s high-performance Ultra LNBs were specifically designed to address the need for superior reception under the edges of the satellite footprint skirt, small dish sizes or long coax cables. Thanks to its novel feed horn design and superior front-end components, this LNB provides higher conversion gain yet with low noise figure and best phase noise performance. The combination of innovative feed horn design, higher spec components, excellent cross polarization isolation and advanced filter design enables improved handling of interfering and spurious signals. This LNB provides a leap in the overall reception performance compared with standard LNBs, enabling the reception of signals from one satellite, its distribution to two Set Top Boxes with Single Tuner (or one STB with Twin Tuner) and is ready for Ultra High Definition TV transmissions in 4K or 8K resolution. Designed to meet strict specifications and manufactured to the highest industry standards, this unique range of LNBs is an ideal solution for installations with challenging reception conditions.
Features
Novel feed horn design
Superior Phase Noise performance, DVB-S2X compliant supporting Ultra HD (4K and 8K) TV
Excellent Cross Polarization Isolation
Very Low Spurious Levels
Superior Noise Figure with high Conversion Gain
High 4G Immunity
Ultimate ReliabilityTechnical specifications
Low band input frequency range 10.7 GHz ~ 11.7 GHz
Low band output frequency range 950 MHz ~ 1950 MHz
Low band LO frequency 9.75 GHz
High band input frequency range 11.7 GHz ~ 12.75 GHz
High band output frequency range 1100 ~ 2150 MHz
High band LO frequency 10.6 GHz
Noise figure 0.6 dB typ. (1 dB Max.)
LO temperature drift ? 2.0 MHz max.
LO initial accuracy ? 1.0 MHz max.
LO phase noise @ 1 kHz -70 dBc/Hz
LO phase noise @ 10 kHz -80 dBc/Hz
LO phase noise @ 100 kHz -90 dBc/Hz
LO phase noise @ 1 MHz -100 dBc/Hz
Conversion gain 60 ~ 70 dB
Gain ripple (over 26 MHz bandwidth) 1 dB max. (peak-to-peak)
Gain variation (over full band) 4 dB max. (peak-to-peak)
Image rejection 50 dB min.
3th order intermodulation – ICP3 +10 dBm min
1 dB compression point (@ output) 0 dBm min.
Cross polarization isolation 22 dB min.
Control signal Ca (V) 10.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22 kHz ? 4 kHz
Output VSWR 2.0 : 1 max.
In band spurious level -65 dBm max.
Current consumption 150 mA max. (10 VDC ~ 20 VDC)
Operating temperature -30 ?C ~ +60 ?C
Output impedance 75 ? (F-type)
Output connector type F-Type (female)
Weight 127.5 g -
Read moreThe LNB is supplied with a 40 mm plastic ring adaptor to allow mounting onto a standard 40mm LNB holder.
Specifically designed for the European DTH markets, this Monoblock LNB allows for dual satellite reception. It can be used for satellite broadcast reception (on an 80cm dish antenna) of the Astra 19.2E and 23.5E satellites spaced with 4.3?. It enables the signal distribution to maximum two Set-Top Boxes with Single Tuner (or one STB with Twin Tuner). The LNB is optimized for Ultra High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.
Features
Low Phase Noise, DVB-S2 UHD TV compliant
Low Noise Figure
Low Power Consumption
Very high Cross Polarization Isolation
Very high Frequency StabilitySpecifications
Technical specifications
Low band input frequency range 10.7 GHz ~ 11.7 GHz
Low band output frequency range 950 MHz ~ 1950 MHz
Low band LO frequency 9.75 GHz
High band input frequency range 11.7 GHz ~ 12.75 GHz
High band output frequency range 1100 MHz ~ 2150 MHz
High band LO frequency 10.6 GHz
Noise figure 0.6 dB typ.
LO temperature drift ?2.0 MHz max.
LO initial accuracy ?600 kHz max.
LO phase noise @ 1 kHz -70 dBc / Hz max.
LO phase noise @ 10 kHz -80 dBc / Hz max.
LO phase noise @ 100 kHz -90 dBc / Hz max.
Conversion gain 55 dB ~ 68 dB
Gain ripple (over 26 MHz bandwidth) ?0.75 dB
Gain variation (over full band) ?4 dB max.
Image rejection 40 dB min.
3th order intermodulation – ICP3 10.0 dBm min.
1 dB compression point (@ output) 0.0 dBm min.
Control, Satellite A/B/C/D Selection DiSEqC 1.0 (Sat A* = ASTRA 19.2? East, Sat B = ASTRA 23.5? East)
* Default Satellite Reception
Cross polarization isolation 22 dB min.
Output VSWR 2.0 : 1?
In band spurious level -60 dBm max.
Current consumption 210 mA max. @ 11 V ~ 20 V
Operating temperature -30 ?C??~??+60 ?C
Output impedance 75 ?
Output connector type F-Type (female)
Recommended Dish Size 80 cm (F/D = 0.6)
Weight 290 g
