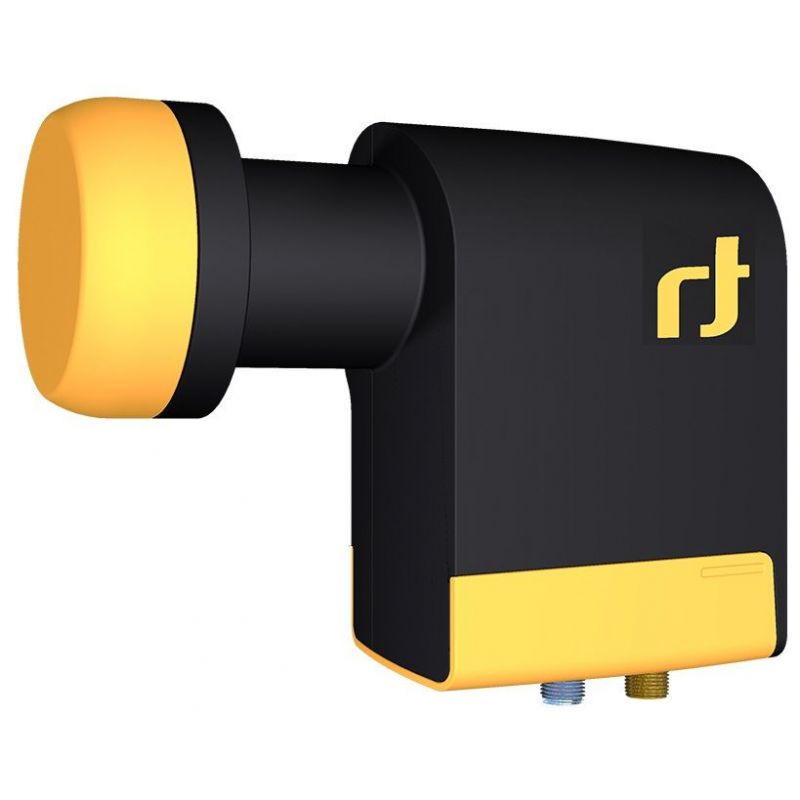

LNB Inverto Unicable Quad 40mm with 1 Legacy port

A member of the innovative and award winning Unicable LNB series this highly competitive product enables the connection of up to 4 STBs using a single cable (providing STBs are Unicable compliant) over its Unicable port as well as one more STB over its ?Legacy? port. The product is supplied with one splitter unit (optional) for a flexible distribution of the satellite signal at home. It was specifically designed for the European DTH markets, and provides optimized reception capabilities for High Definition transmissions. Manufactured to the highest industry quality standards and with excellent noise figure and phase noise performance, this LNB is an ideal solution for multi-room satellite reception and is a product of choice for most leading digital satellite TV operators across Europe.

Main Features
Low Phase Noise, HDTV-DVBS2 compliant
Low Noise Figure
Low Power Consumption
Very high ?Cross Polarization Isolation
Very high Frequency Stability
1?Legacy Port
Specs
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.7 dB Max.
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 2.5 MHz Max.
Phase Noise (@ 10 kHz) – 90 dBc / Hz Max.
SCR Conversion Gain 57 dB Min.
Legacy Conversion Gain 55 dB Min.
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band)? +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Cross Polarization Isolation 22 dB Min.
Output VSWR 2.5 : 1?
In-Band Spurious – 60 dBm Max.
Output IF Channel 1 (SCR0)? 1210 MHz
Output IF Channel 2 (SCR1) 1420 MHz
Output IF Channel 3 (SCR2) 1680 MHz
Output IF Channel 4 (SCR3)? 2040 MHz
Channel Isolation 20 dB Min.
Legacy Ports 1
SCR’s Control Signals? DiSEqC command extension based on EN-50494
Legacy Switch Voltage Control? < 14.2 V (Vertical),? > 15 V (Horizontal)
Legacy 22 k Sensitivity? 220 mV Min.
Current Consumption 250 mA Max. @ 13.5 V
Operating Temperature – 30 ?C? ~? + 60 ?C
Output Impedance 75 ?
Output Connector F-Type (Female)
Weight 350 g
