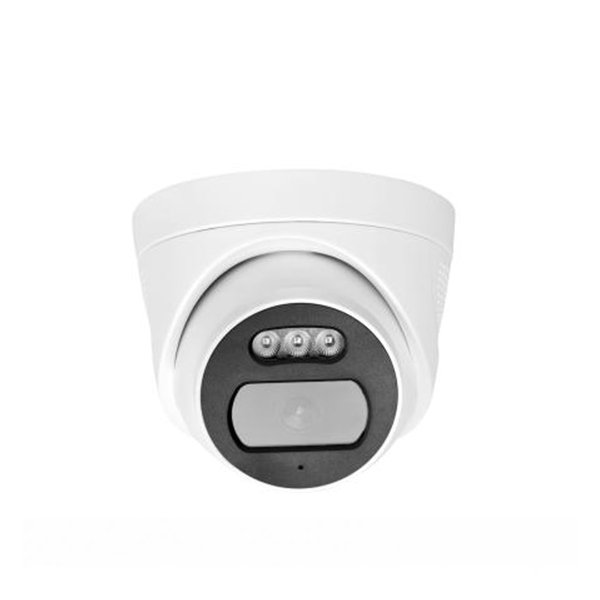

Longse CPSBFC4R 4MP Indoor Eco Series Fixed Dome Network camera
KSh2,782.50
?
1/3?Progressive Scan CMOS Sensor;
Support H.264/H.265/JPEG/AVI/MJPEG Compression ;
Minimun Illumination?0.04Lux?Infrared Distance?25m?
Support DWDR;
Housing: Plastic
Image Sensor 1/3? Progressive Scan CMOS Sensor
Resolution 4MP
Effective Pixels 2560(H)*1440(V)
Compression H.264/H.265/JPEG/AVI/MJPEG
Audio Compression G711A/U
TV System PAL/NTSC
Electronic Shutter Time Auto: 1/3-1/100000Sec
Minimun Illumination Color: 0.04 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
S/N Ratio 60dB
Scanning System Progressive
Video Output Network
Reset Button Optional
Lens
Focal Length & FOV 2.8 mm, horizontal FOV 95?, vertical FOV 53?, diagonal FOV 114?
3.6 mm, horizontal FOV 73?, vertical FOV 40?, diagonal FOV 88?????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????? 6 mm, horizontal FOV 48?, vertical FOV 27?, diagonal FOV 55?
Lens Type Fixed focal lens, 2.8, 3.6 and 6mm optional
Focus Control Fixed
Aperture F2.0
Pixels 4MP
Night Vision
Supplement Light 42? x 2PCS
Supplement Light Distance 25M
Supplement Light Status Auto Control
Supplement Light Power On Smart, Manual & Timed mode
Network
Ethernet RJ-45 (10/100Base-T)
Wireless N/A
Protocol TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,? RTCP ,PPPoE, NTP,? SMTP, UDP,Qos,802.1x
ONVIF Support ONVIF 19.12(Profile S/T)
P2P YES
POE Internal, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 1 2560*1440@25fps
Main Stream 2 1920*1080@25fps
Main Stream 3 1280*720@25fps
Sub Stream 1 720*480@25fps
Sub Stream 2 640*360@25fps
Sub Stream 3 352*288@25fps
Tri Stream N/A
IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
Smart Phone iPhone, Android
AI Function
Intelligent Analysis Intrusion Detetion(based on human detection),motion detection based on human detection
Camera
Day/Night Color/ B&W (IR-CUT )
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance,? Anti Flicker, HLC, Distortion
Full Color N/A
Corridor Pattern N/A
Defog? Mode N/A
ROI N/A
BLC Support
WDR DWDR
Motion Detection Support(support enable the detection based on human movement only)
Privacy? Masking 3 Rectangular Zone
Recording Mode NVR/CMS/Web
Language Chinese Simplified, Chinese Traditional, English, Russian, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian,? Arabic, Vietnamese, Thai, Hungarian
Interface
Audio Optional 1 Built-in MIC
Alarm N/A
SD Card Slot N/A
RS485 N/A
General
Housing Plastic
Anti-cut Bracket NO
IR Cut Filter YES
Operation?Temperature -20??~ +50??RH95% Max
Storage Temperature -20??~ +50??RH95% Max
Power Source DC12V?10%, 700mA
Dimension ?109.43*88.5mm
Weight 242g
