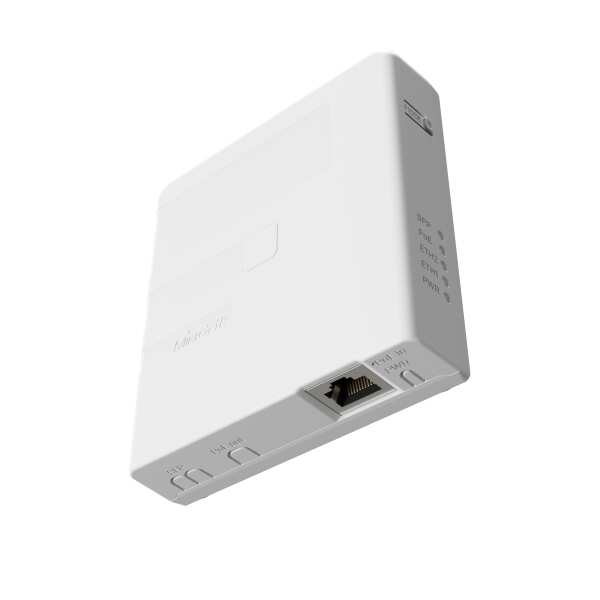

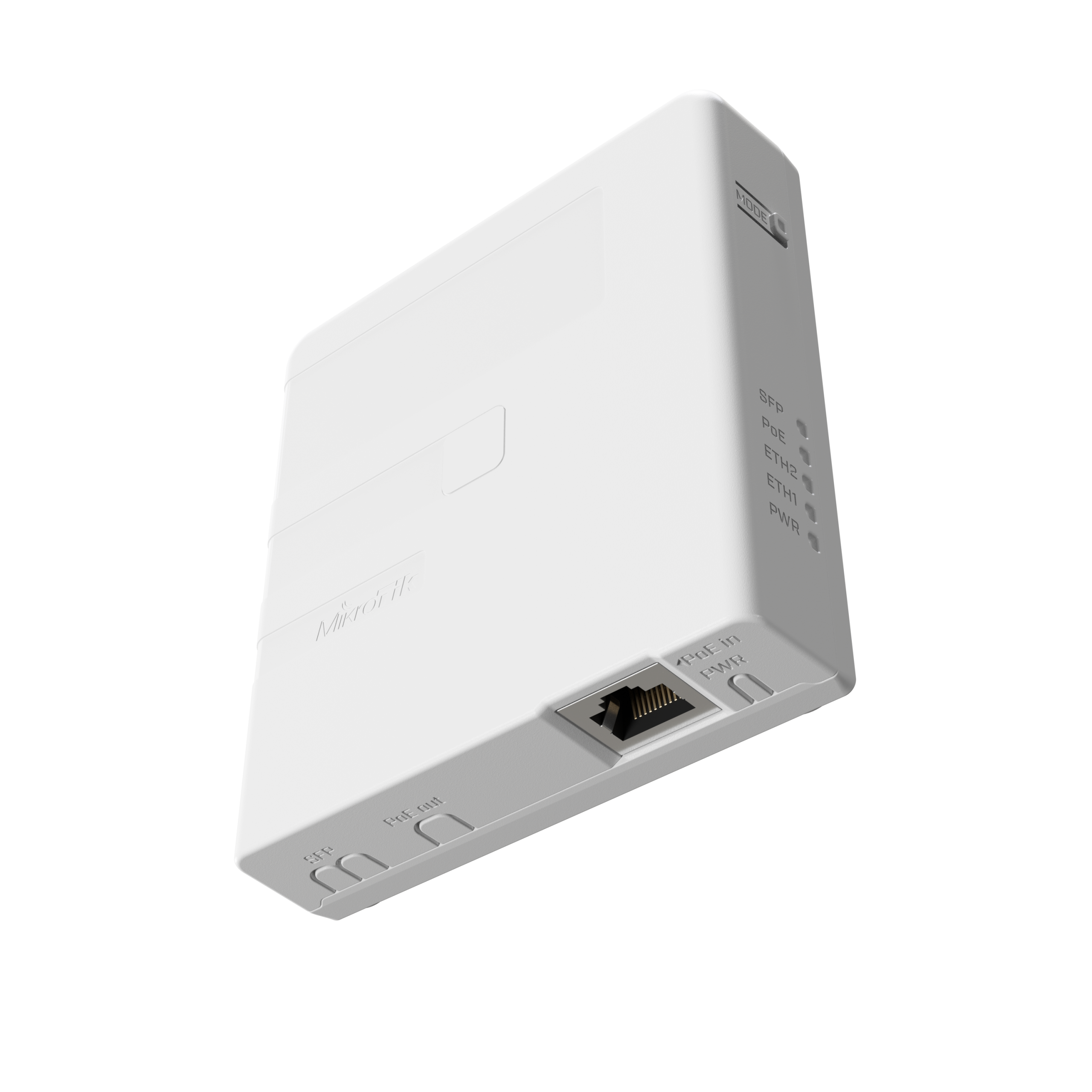

MikroTik GPEN21 – Accessories
Smart power injector that serves as an advanced software controlled repeater
The GPEN21 is a smart power injector that serves as an advanced software controlled repeater. Not only can it power your uplink devices via PoE, it can also provide a range of useful software features: • Interface management and monitoring • GPEN link fault detection • VLAN support • SNMP reporting • Basic traffic shaping GPEN21 has an Ethernet and SFP port for fiber connectivity. Customers can choose to use GPEN21 to power optical module for uplink to provider, or to provide PoE to power Ethernet uplink to provider (that uses our GPeR and/or netPower products) The GPEN unit can be securely attached to a wall or the communications cabinet. The Ethernet cable can be routed either directly through its bottom cable opening or into the wall, as preferred. Send purchase questions Specifications Support & Downloads Gallery Specifications Details Product code GPEN21 Switch chip model 88E6341 Input voltage 12 – 57 V, Passive or 802.3af/at Tested ambient temperature -20°C to 70°C Suggested price $40.00 Powering Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 12-57 V Max power consumption 30 W Max power consumption without attachments 3 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 12-57 V PoE-out Details PoE-out ports Ether2 PoE out Passive PoE up to 57V Max out per port output (input 18-30 V) 850 mA Max out per port output (input 30-57 V) 625 mA Max total out (A) 850 mA Ethernet Details 10/100/1000 Ethernet ports 2 Number of 1G Ethernet ports with PoE-out 1 Fiber Details SFP ports 1 Other Details Output Voltage Yes, Passive PoE up to 57 V Mode button Yes Certification & Approvals Details Certification CE, EAC, ROHS IP IP20 Included parts K-62 kit Related products GPeR $29 48V2A96W $39 netPower 15FR $169 18POW $9.00 24HPOW $18.00 48POW $18.00
