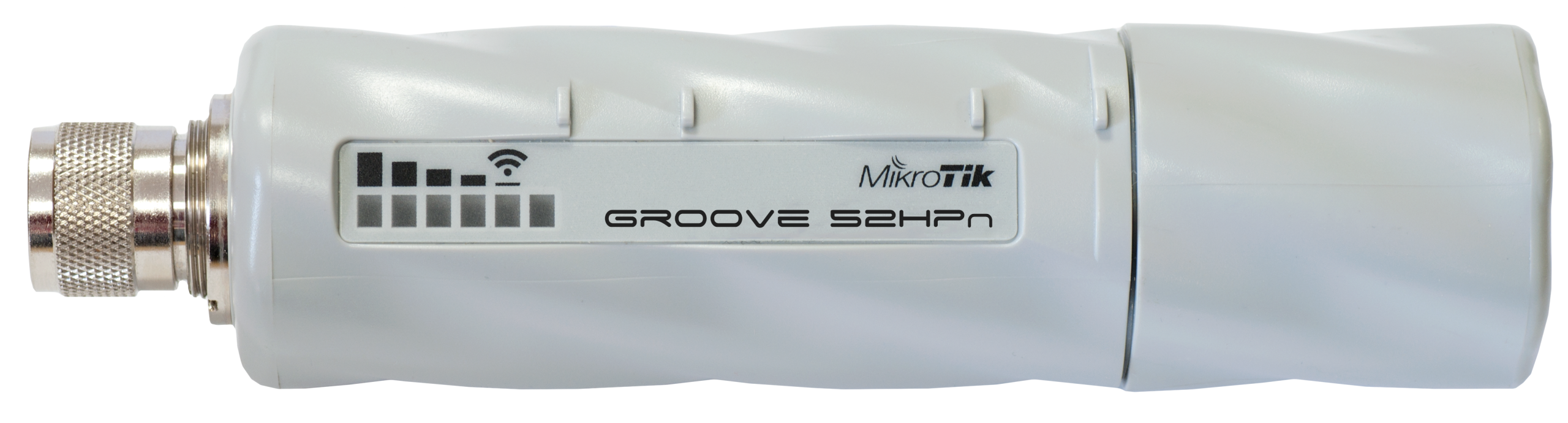

MikroTik Groove 52
2.4GHz/5GHz Backbone/CPE, N-male connector
Our smallest outdoor series model – a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power! With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align. Box contains: Groove unit, mounting loops, PoE injector and power adapter We have two versions available. -Groove 52-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. – Groove 52 (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations). Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code RBGroove52HPn Architecture MIPSBE CPU AR9342 CPU core count 1 CPU nominal frequency 600 MHz Dimensions 180x49x44mm, 193g RouterOS license 3 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100’000 hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $59.00 Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 6 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 9-30 V Wireless specifications Details Wireless 2.4 GHz/5 GHz Max data rate 150 Mbit/s Wireless 2.4 GHz/5 GHz number of chains 1 Wireless 2.4 GHz/5 GHz standards 802.11a/b/g/n Wireless 2.4 GHz/5 GHz chip model AR9342 Wireless 2.4 GHz/5 GHz generation Wi-Fi 4 Ethernet Details 10/100 Ethernet ports 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes Beeper Yes Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS Wireless specifications 2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 27 -97 11MBit/s 27 -91 6MBit/s 27 -93 54MBit/s 24 -75 MCS0 27 -93 MCS7 23 -70 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 27 -93 54MBit/s 23 -75 MCS0 26 -93 MCS7 22 -70 Included parts PoE injector 24V 0.38A power adapter Metal ring (one) The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. Related products QMP $9.5 QM $6
