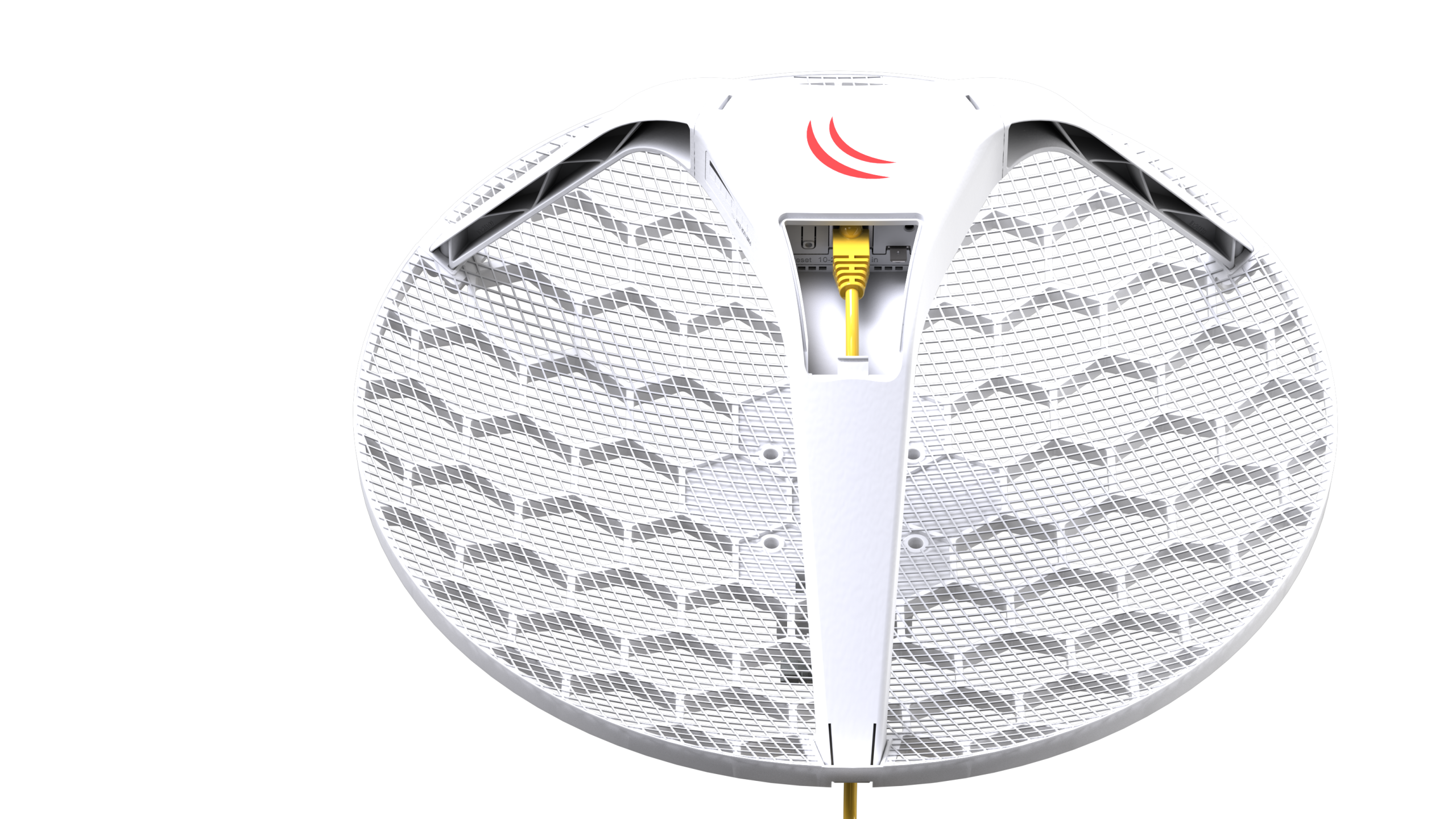

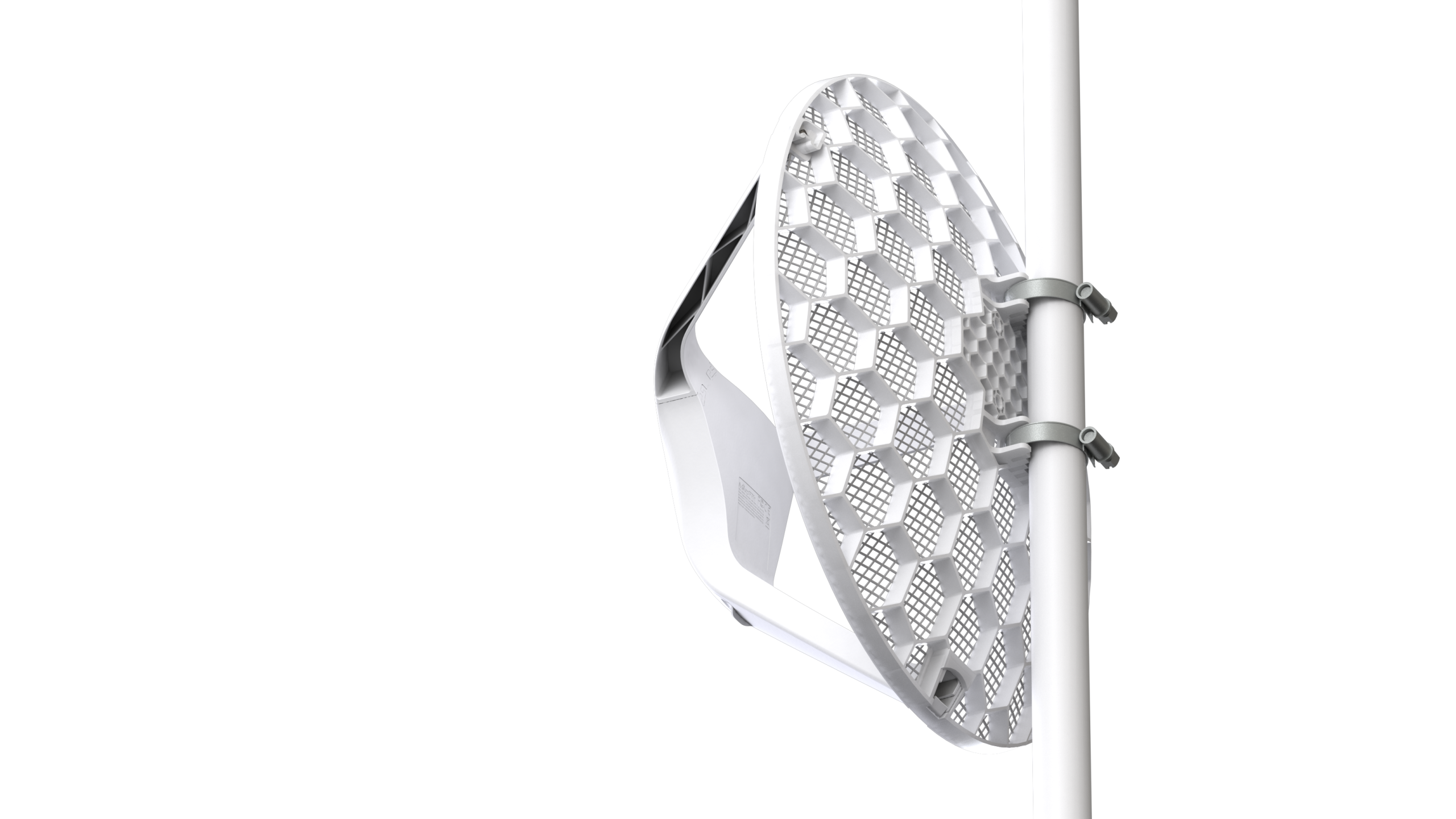

MikroTik LHG 5
Dual chain 24.5dBi 5GHz CPE/Point-to-Point Integrated Antenna, 600Mhz CPU, 64MB RAM

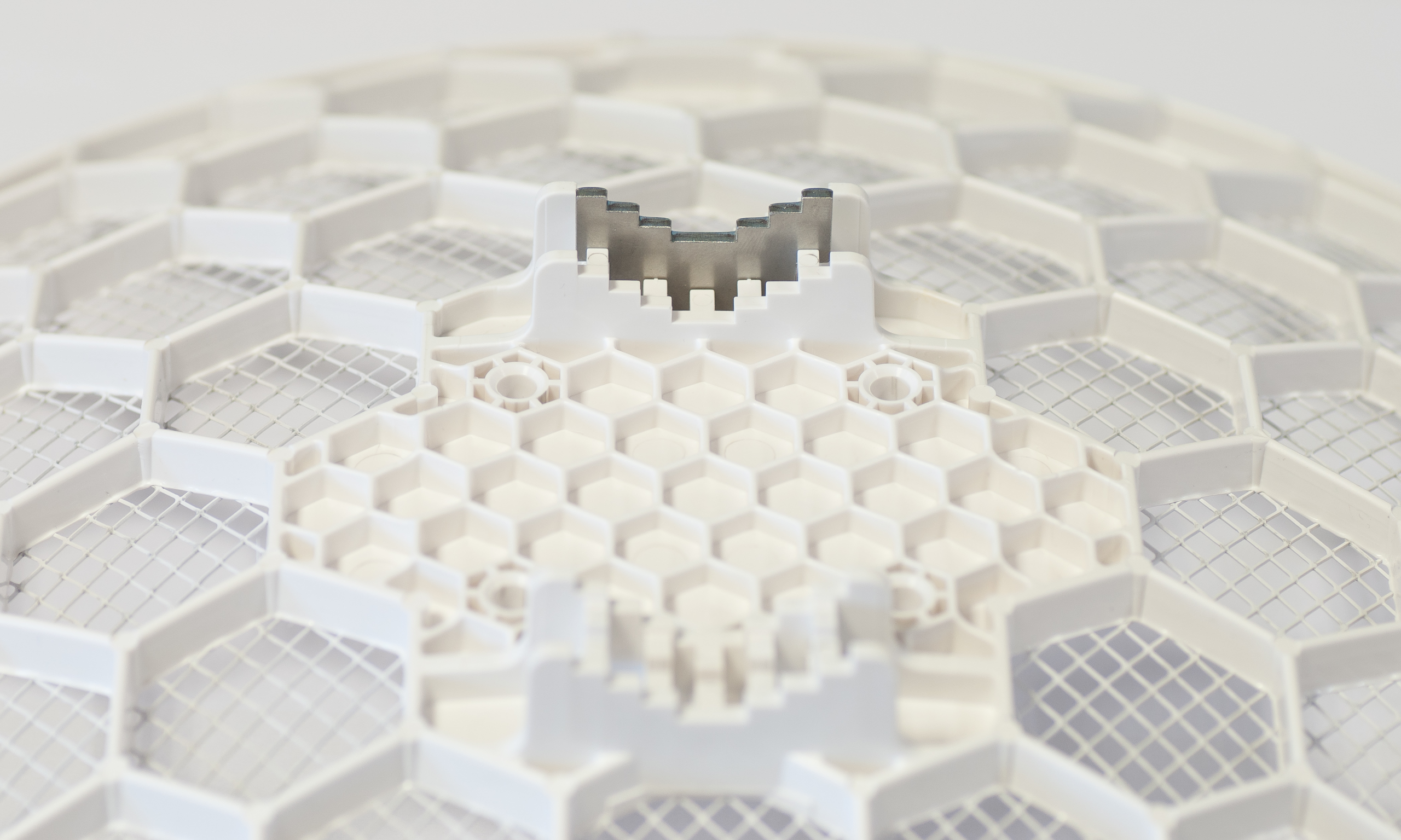

The LHG 5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol. The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables. Shipped as a kit of 3 units (RBLHG5kit) – 3 antennas in a single box. We have two versions available. LHG 5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. LHG 5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations). Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code RBLHG-5nD Architecture MIPSBE CPU AR9344 CPU core count 1 CPU nominal frequency 600 MHz Dimensions Ø 391 x 222 mm; package 450 x 450 x 145 mm RouterOS license 3 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100’000 hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $69.00 Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 6 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 11-30 V Wireless specifications Details Wireless 5 GHz Max data rate 300 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n Antenna gain dBi for 5 GHz 24.5 Wireless 5 GHz chip model AR9344 Wireless 5 GHz generation Wi-Fi 4 Ethernet Details 10/100 Ethernet ports 1 Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP54 Wireless specifications 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 25 -96 54MBit/s 20 -80 MCS0 25 -96 MCS7 19 -75 Included parts K-LHG kit 24V 0.38A power adapter PoE injector Metal rings (two) The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. Related products LHG mount $15 solidMOUNT $29 QMP-LHG $9.5
