MikroTik RB1100AHx4
Powerful 1U rackmount router with 13x Gigabit Ethernet ports

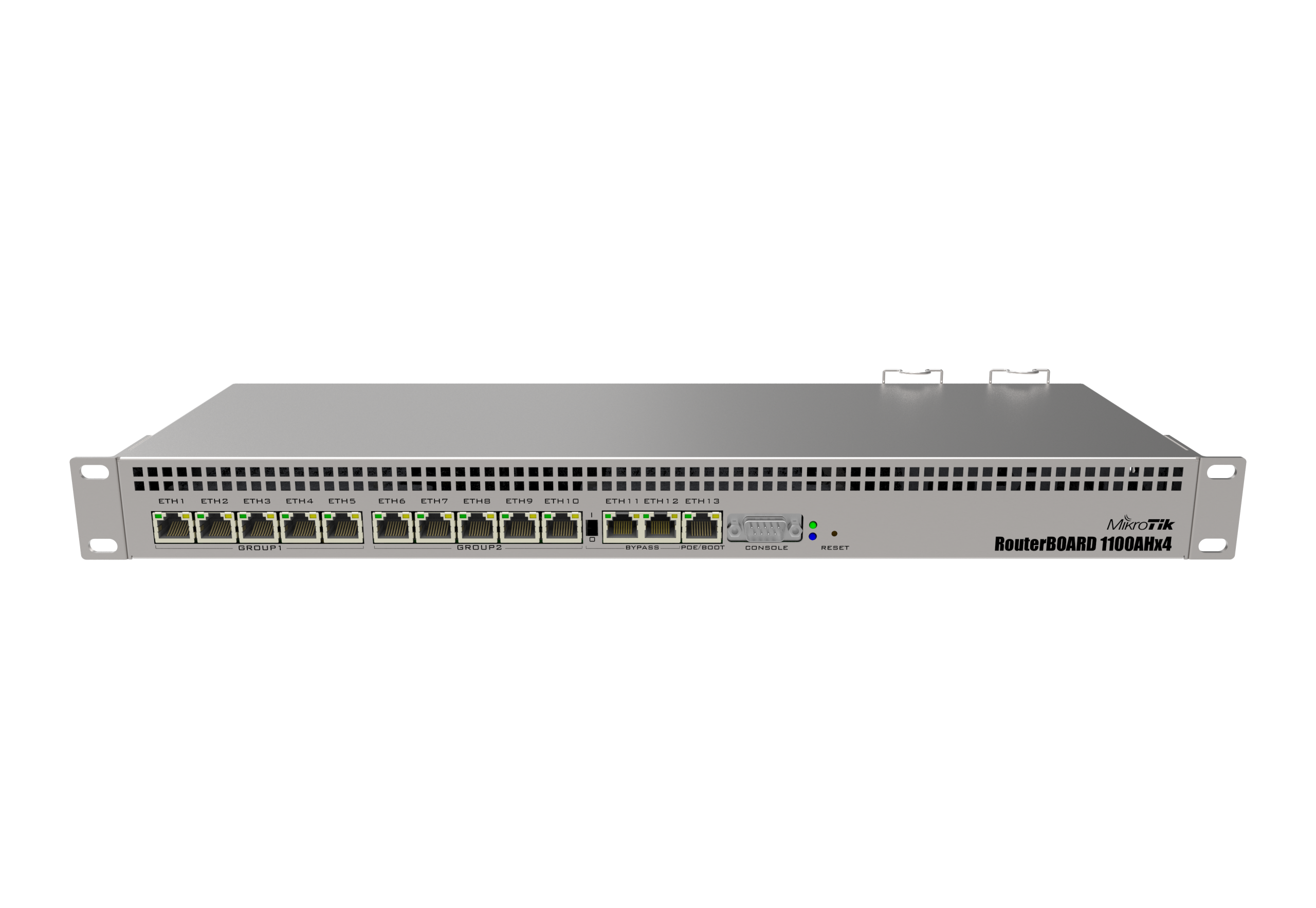

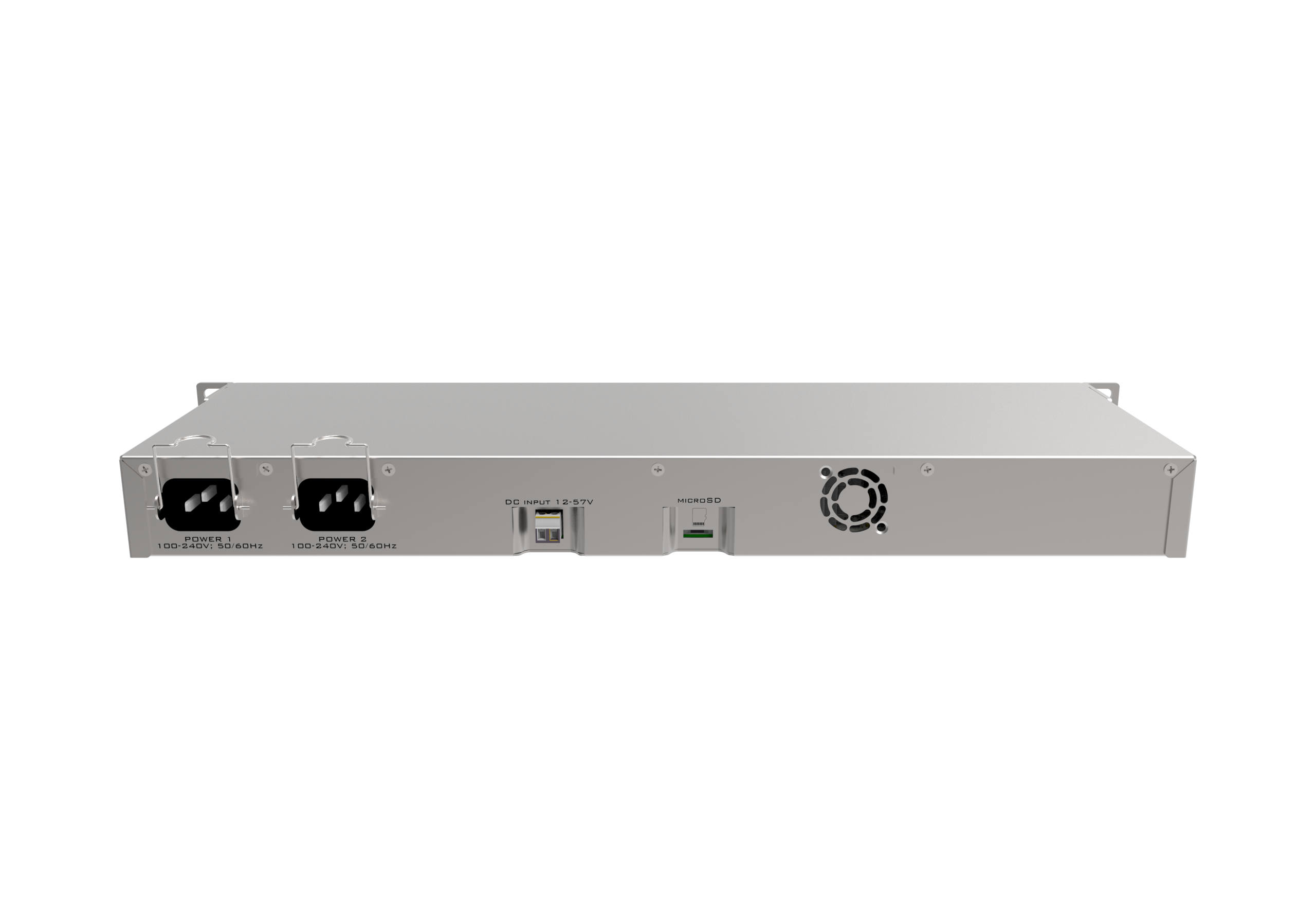

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128). Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code RB1100x4 Architecture ARM 32bit CPU AL21400 CPU core count 4 CPU nominal frequency 1.4 GHz Switch chip model RTL8367 Dimensions 443 x 148 x 44 mm RouterOS license 6 Operating System RouterOS Size of RAM 1 GB Storage size 128 MB Storage type NAND MTBF Approximately 200’000 hours at 25C Tested ambient temperature -40°C to 70°C IPsec hardware acceleration Yes Suggested price $329.00 Powering Details Number of AC inputs 2 AC input range 100-240 Number of DC inputs 2 (2-pin terminal, PoE-IN) 2-pin terminal input Voltage -48, 12-57 V Max power consumption 20 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 20-57 V Ethernet Details 10/100/1000 Ethernet ports 13 Peripherals Details Memory card type microSD Memory Cards 1 Serial console port RS232 Other Details Current Monitor Yes PCB temperature monitor Yes Voltage Monitor Yes Mode button Yes Beeper Yes Certification & Approvals Details Certification CE, EAC, ROHS IP IP20 Included parts K10 screw kit Rack ears 2x IEC cords The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
