MikroTik RB5009UG+S+IN
The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.

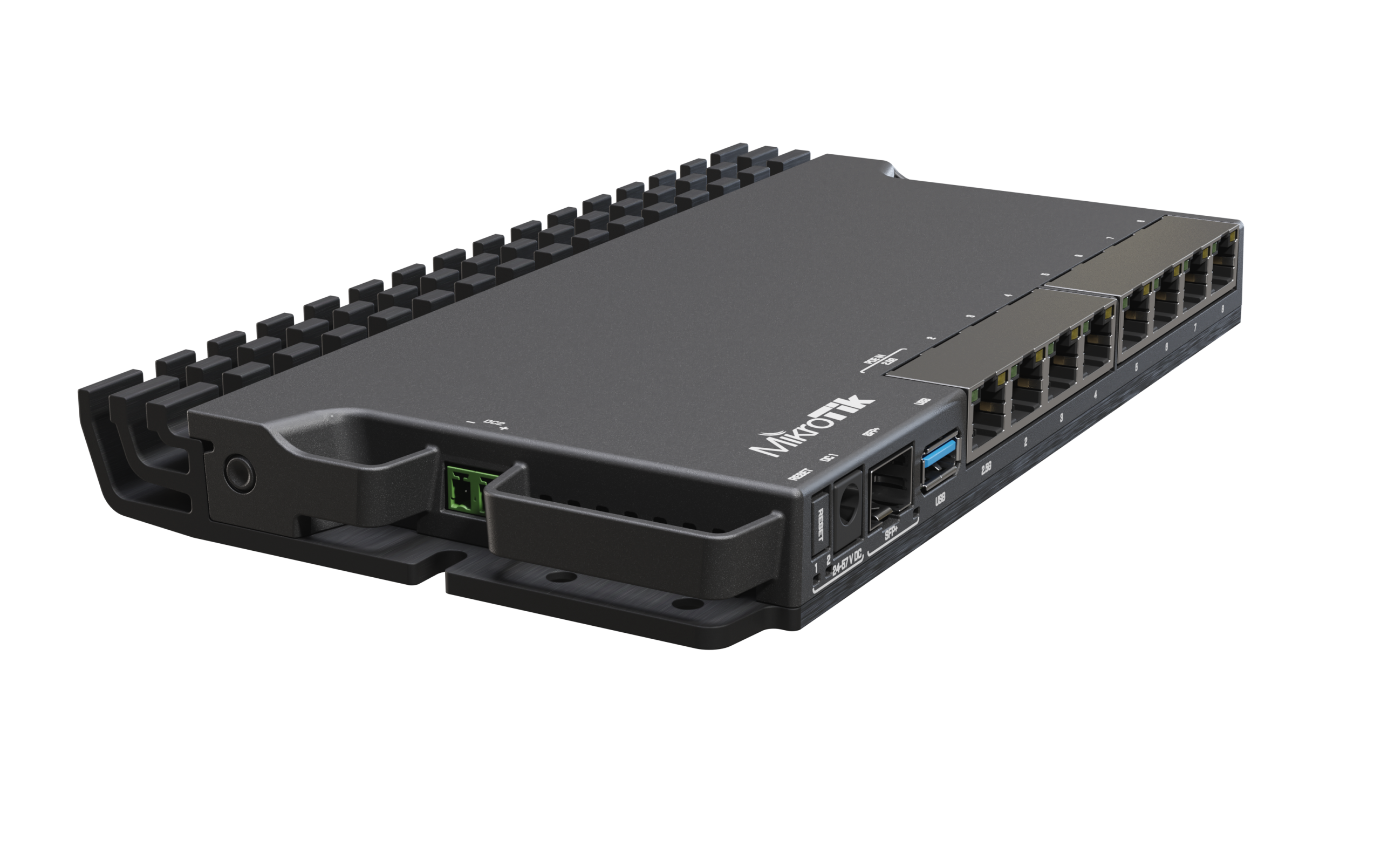

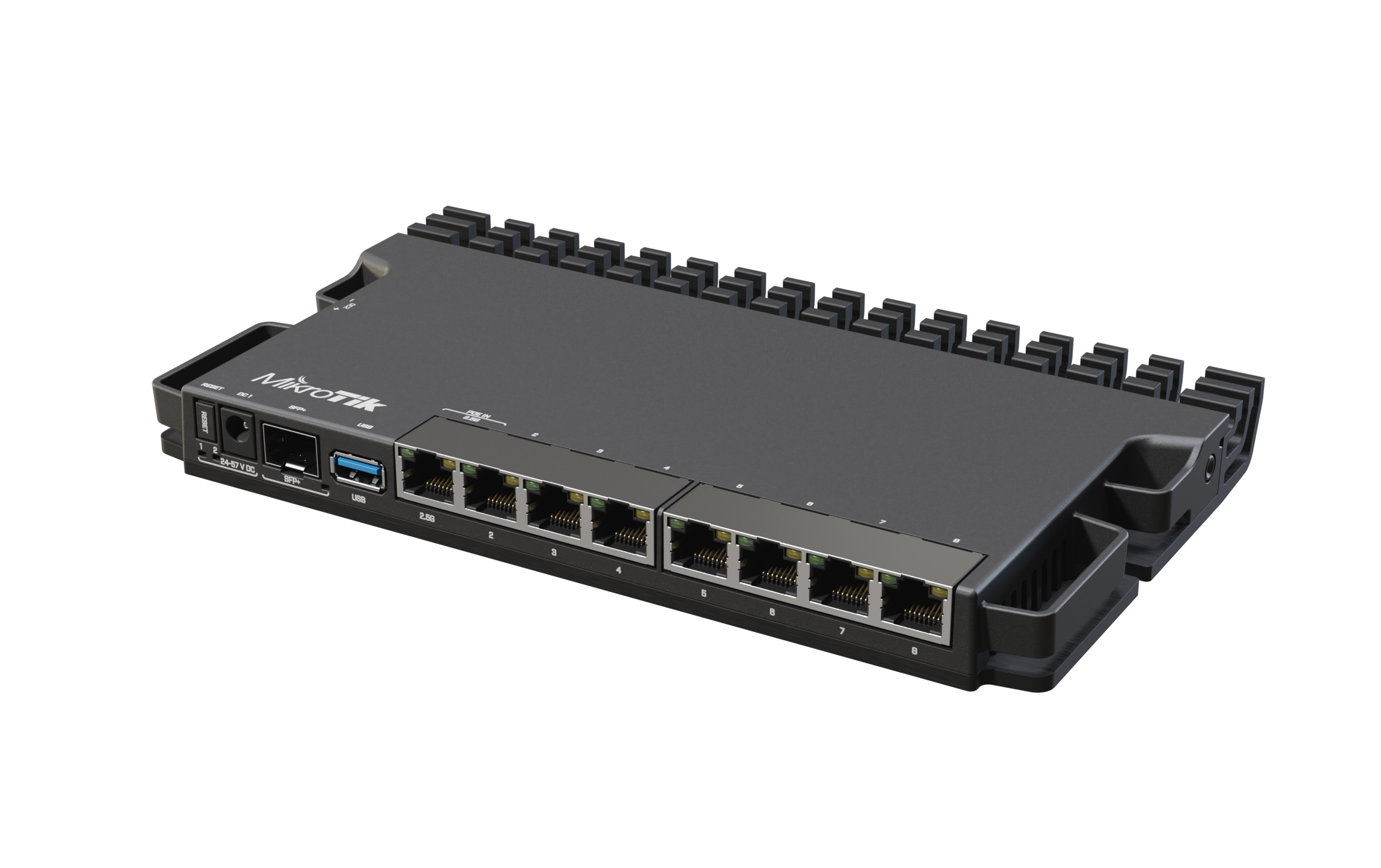

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1 b) DC Jack c) 2-pin terminal on the side Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity. Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code RB5009UG+S+IN Architecture ARM 64bit CPU 88F7040 CPU core count 4 CPU nominal frequency 350-1400 (auto) MHz Switch chip model 88E6393 RouterOS license 5 Operating System RouterOS v7 Size of RAM 1 GB Storage size 1 GB Storage type NAND MTBF Approximately 200’000 hours at 25C Tested ambient temperature -40°C to 60°C IPsec hardware acceleration Yes Suggested price $219.00 Powering Details Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal) DC jack input Voltage 24-57 V 2-pin terminal input Voltage 24-57 V Max power consumption 25 W Max power consumption without attachments 14 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 24-57 V Ethernet Details 10/100/1000 Ethernet ports 7 Number of 2.5G Ethernet ports 1 Fiber Details SFP+ ports 1 Peripherals Details Number of USB ports 1 USB Power Reset Yes USB slot type USB 3.0 type A Max USB current (A) 1.5 Other Details CPU temperature monitor Yes Certification & Approvals Details Certification CE, EAC, ROHS Included parts K-55 screw kit 24V 1.5A power adapter The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. Related products XS+2733LC15D $349 SolidRack 10 $49 RB5009/L009 rackmount kit K-79 $7 S+AO0005 $49 S-55DLC80D $39 XS+DA0003 $39 S-31DLC20D $29.00 XQ+BC0003-XS+ $79 XS+DA0001 $29 S-RJ01 $29.00 S+85DLC03D $59.00 S+RJ10 $65 S-85DLC05D $22.00 XS+85LC01D $59 S-3553LC20D $79.00 S-4554LC80D $89
