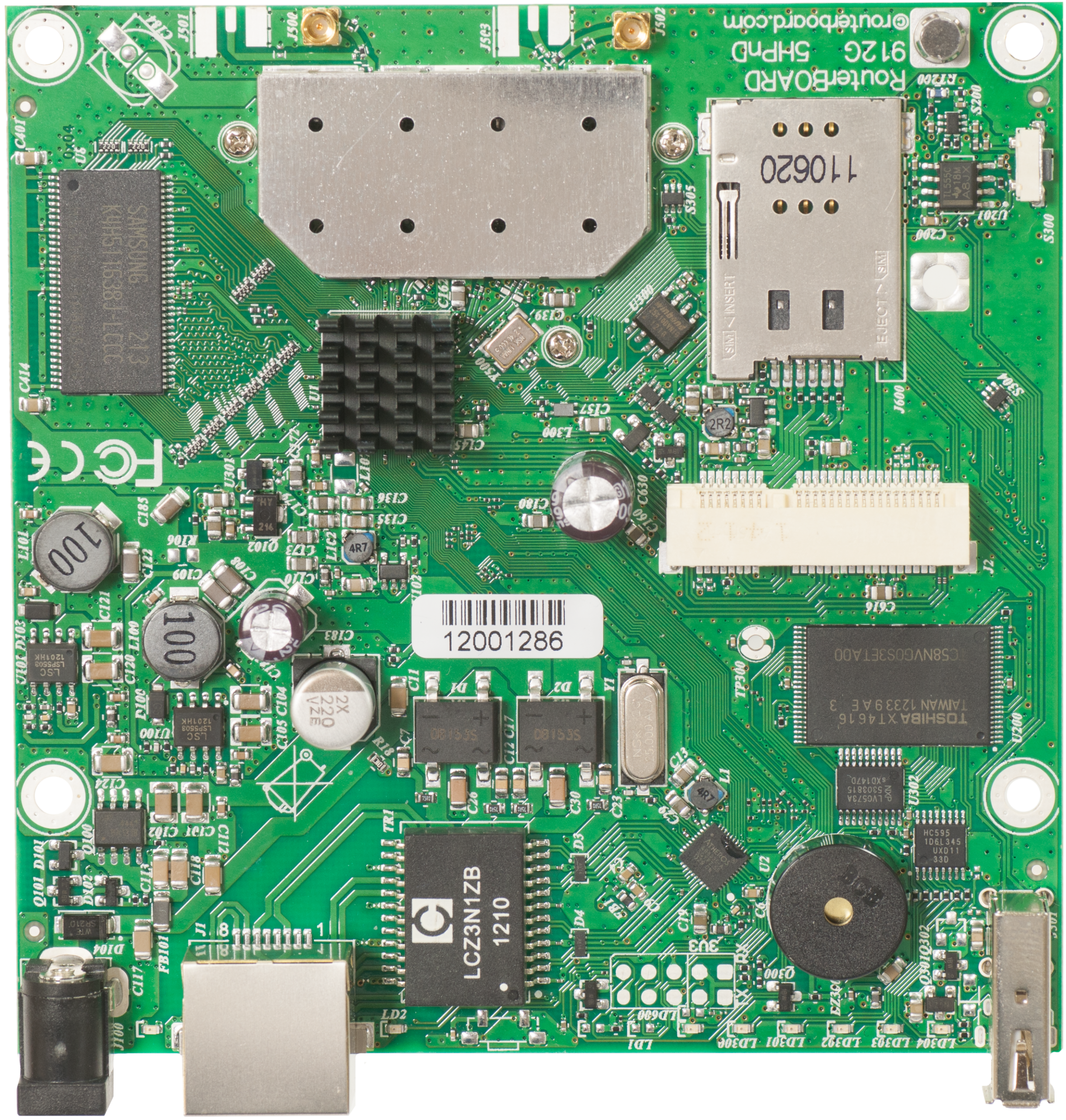

MikroTik RB912UAG-5HPnD – RouterBOARD
600MHz CPU, 64MB RAM, 1xGigabit Ethernet, onboard 5Ghz wireless, miniPCI-express, USB, SIM slot, RouterOS L4
The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports – RB912UAG-5HPnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. – RB912UAG-5HPnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations). Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code RB912UAG-5HPnD Architecture MIPSBE CPU AR9342 CPU core count 1 CPU nominal frequency 600 MHz Dimensions 105x105mm RouterOS license 4 Operating System RouterOS Size of RAM 64 MB Storage size 128 MB Storage type NAND MTBF Approximately 100’000 hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $79.00 Powering Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 8-30 V Max power consumption 12 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 8-30 V Wireless specifications Details Wireless 5 GHz Max data rate 300 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n Wireless 5 GHz chip model AR9342 Wireless 5 GHz generation Wi-Fi 4 Ethernet Details 10/100/1000 Ethernet ports 1 Peripherals Details Number of SIM slots 1 Modem (Mini SIM) MiniPCI-e slots 1 Number of USB ports 1 USB Power Reset Yes USB slot type USB type A Max USB current (A) 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes Beeper Yes Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP00 Wireless specifications 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 30 -96 54MBit/s 27 -78 MCS0 30 -96 MCS7 26 -75 The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. Related products CA411-711 $15.00 ACMMCXRPSMA $9 R11e-2HnD $39.00 ACOMNIRPSMA $8.00 R11e-2HPnD $39.00 18POW $9.00 24HPOW $18.00 R11e-5HnD $39.00 R11e-5HacD $49.00
