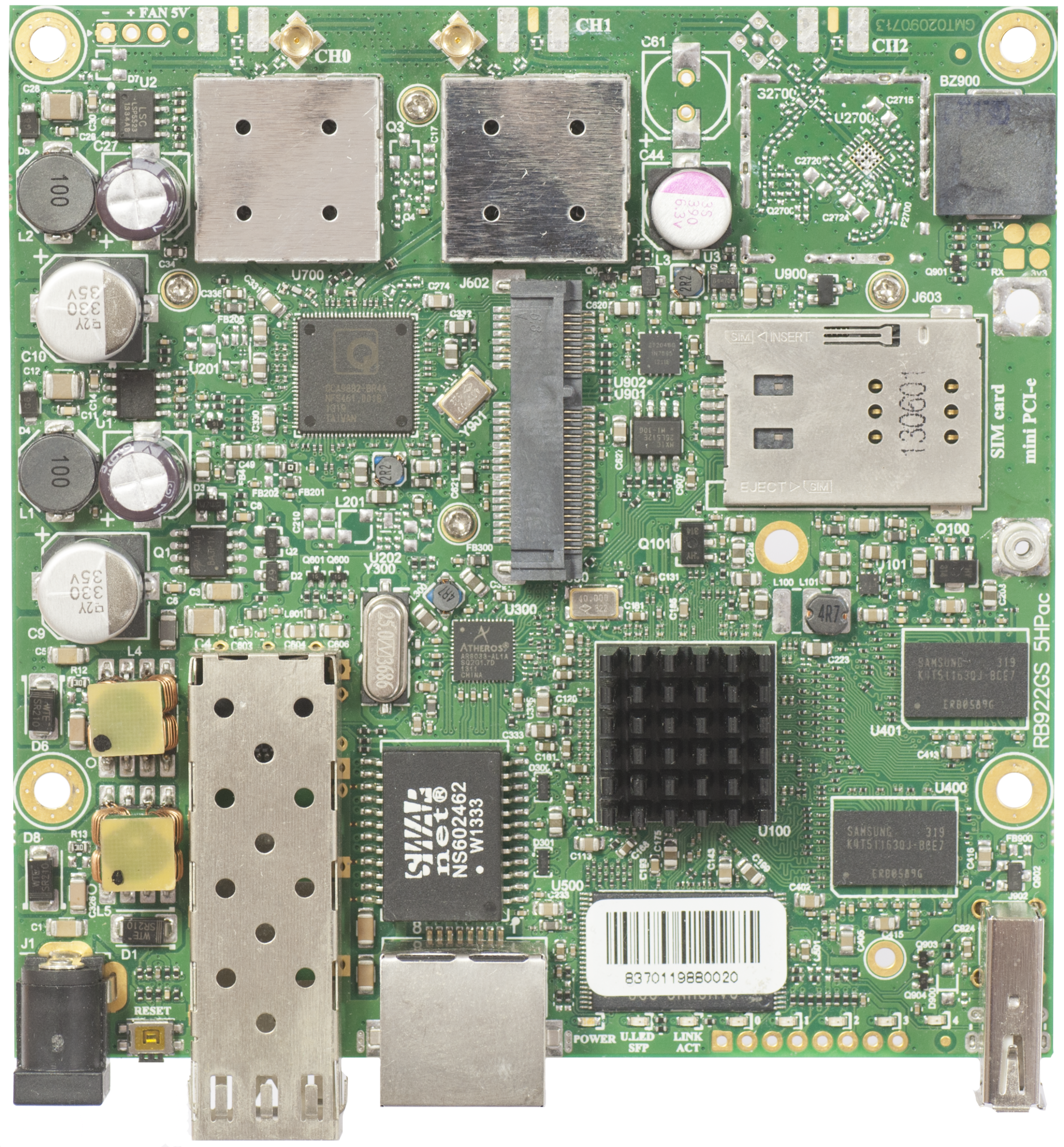

MikroTik RB922UAGS-5HPacD – RouterBOARD
720Mhz CPU, 128MB RAM, 1xGigabit Ethernet, 1xSFP cage, 1xminiPCI-e, 1xSIM, onboard 802.11ac Two Chain 5Ghz wireless, RouterOS L4
RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 802.11ac 2×2 radio. Comes with RouterOS L4 (AP) license. – RB922UAGS-5HPacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. – RB922UAGS-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations). Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code RB922UAGS-5HPacD Architecture MIPSBE CPU QCA9557 CPU core count 1 CPU nominal frequency 720 MHz Dimensions 105x105mm RouterOS license 4 Operating System RouterOS Size of RAM 128 MB Storage size 128 MB Storage type NAND MTBF Approximately 100’000 hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $99.00 Powering Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 8-30 V Max power consumption 17 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 8-30 V Wireless specifications Details Wireless 5 GHz Max data rate 867 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac Wireless 5 GHz chip model QCA9882 Wireless 5 GHz generation Wi-Fi 5 Ethernet Details 10/100/1000 Ethernet ports 1 Fiber Details SFP DDMI yes SFP ports 1 Peripherals Details Number of SIM slots 1 Modem (Mini SIM) MiniPCI-e slots 1 Number of USB ports 1 USB Power Reset Yes USB slot type USB type A Max USB current (A) 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes Beeper Yes Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP00 Wireless specifications 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 31 -96 54MBit/s 27 -81 MCS0 30 -96 MCS7 27 -77 MCS9 22 -72 The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. Related products CA433U $20.00 CA411-711 $15.00 R11e-2HnD $39.00 R11eL-EC200A-EU $65 S-55DLC80D $39 S-31DLC20D $29.00 S-RJ01 $29.00 R11e-2HPnD $39.00 S-85DLC05D $22.00 S-3553LC20D $79.00 S-4554LC80D $89 18POW $9.00 24HPOW $18.00 R11e-5HnD $39.00 R11e-5HacD $49.00
