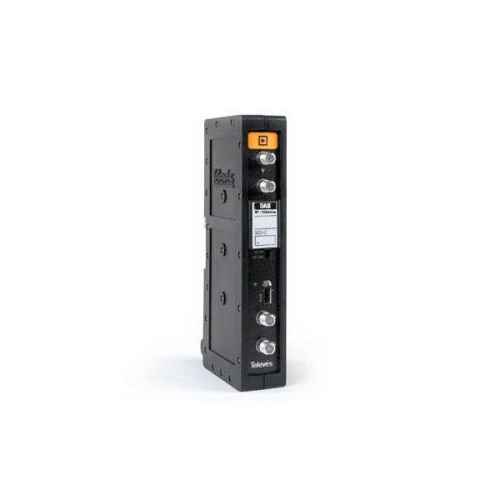

Monochannel TDT Amplifier for T03/T12 SELECTIVE channel 39
Single-channel DTT amplifier for selective T12.Ref. 509812 of Televes.
Single-channel amplifier for DTT frequency amplification. This amplifier is used together with the rest of the single channel amplifiers forming a headend. It is necessary for its operation the rail (it can be installed on DIN rail, chest or rack) and the power supply. It has a very high adjustable gain.
With the T.12 single channel amplifiers Telev?s has achieved a product that provides an unbeatable performance in signal processing, with precise and simple frequency adjustments. The T.12 modules are manufactured on state-of-the-art robotized lines and subjected to the strictest quality controls, a guarantee of unprecedented reliability and stability. Prepared for the adaptation to the incipient relocation of the digital dividend, this product bears the LTE Ready seal of Telev?s.
This amplifier belongs to channel 39. If you need a different channel, please contact us.
Features:
Full compatibility with the previous model T.03, as well as with its power supply.
High reliability, thanks to its fully robotized manufacturing.
Considerable improvement in the design of the armor.
Modular and expandable system.
Power supply for up to 24 modules, by means of its Power Supply.
Remote power supply of preamplifiers.
Bands ? UHF
Frequency range MHz 470 … 890
Channels ? 1
CCIR channel bandwidth MHz 8
Gain dB 50
Gain regulation range dB 0 … 30
EN50083 output level dB?V 118
Input supply voltage Vdc 24
Max input current mA 100
Supply voltage Vdc 24
Max current mA 195
Flatness dB < 2
Adjacent channel rejection dB > 18
2 adjacent channels rejection dB > 50
Protection index (IP) ? 20
Operating temperature ?C -5 … 45
