MOSAIQ6 spectrum analyzer DVB-T/T2/S/S2/C + CI + F.O….

Mosaiq6 DVB-T/T2/S/S2/C + CI + Selective F.O. (Carrying Case?included) is a new high performance portable meter, with advanced functionalities and high precision in the measurement. The most automatic and intuitive market mode, intuitive interface and gestural commands.

With MOSAIQ6, technicians have at their disposal a powerful tool capable of measuring, analyzing and diagnosing return channel signals, radio, DAB and DAB +, television, fiber optic, WiFi or IPTV, in any scenario, no matter how complex it may be.

The MOSAIQ6 has an ultra-fast spectrum analyzer with a high resolution, which, together with the functionalities for analysis of echoes, allows to visualize any important aspect of the signal.

Stands out for
The only professional field meter with touchscreen gestural control
MOSAIC function: allows you to configure up to 6 widgets on the 8 “high resolution screen

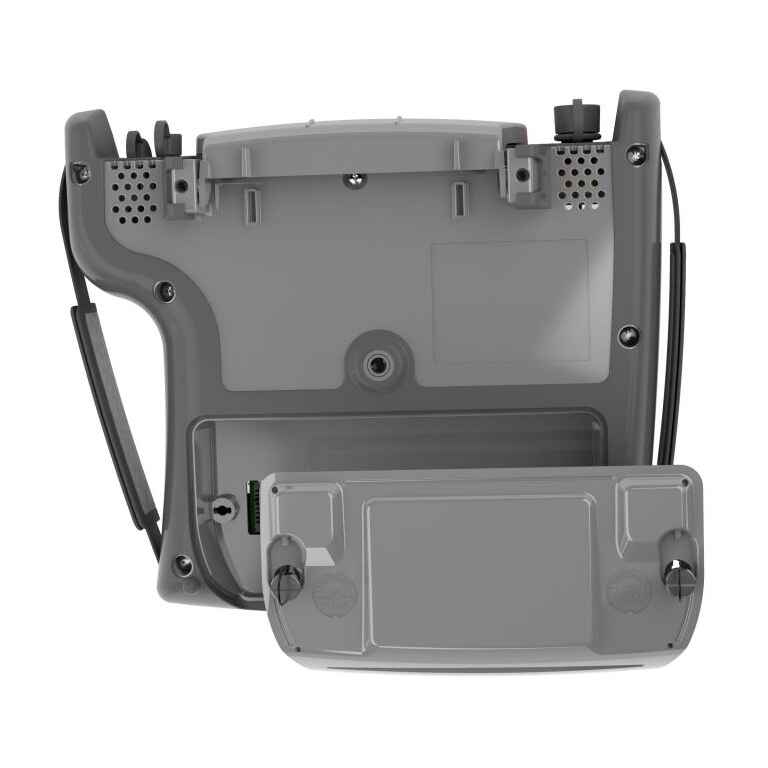

Maximum comfort and performance when you can change the battery in the field
Ergonomics: Optimized shape to maximize movement efficiency
Efficient management: Meter always updated in the cloud
Digital processing in real time thanks to an ultra-fast spectrum analyzer
Features
High performance portable meter Intuitive.
Thanks to its innovative interface, designed exclusively to get the most out of its 8 “multitouch screen
All the information of the signal in a single screen. Mosaiq function, with up to 6 widgets confi gurable by the user
Powerful digital spectrum analyzer (sweep <10ms.) Range: 5MHz-3.3GHz Easily upgradeable. Spectrum analyzer with 1 GHz range with selectable span Specific measures on IP (TSoIP) Indicators PASS / FAIL: The icons indicate whether a measure is good, bad or regular for a quick and easy review. In this way, possible installer errors are reduced and decision making is improved. Field replaceable and rechargeable battery independently Customization by user profiles. Automatic channel scan Automatic satellite identification GPS for drive test and automatic storage of measurements. Detection and simulation of LTE interference. Specifications General information Screen 8 "TFT Touch 1024x768 Full Color Weight 2.150kg (without cover) Dimensions 250*210*60 mm Battery Exchangeable Li-ion (7.2VDC, 9000mAh) in field Autonomy >4 hours
Interfaces ETH, USB, HDMI, audio output (Jack), FC / APC fiber optic connector, GPS antenna connector
Storage capacity 32 Gb
Technical?features
Frequency
Resolution 1 KHz
Tuning Frequency or channel
Spectrum analyzer
Span 100 KHz, 1, 5, 10, 20, 50, 100, 200, 500 MHz, 1.0, 2.0, 3.3 GHz and other (any value between 100 KHz and 3.3 GHz)
RBW 500 Hz, 1, 3, 5, 10, 30, 50, 100, 300, 500 KHz, 1, 3, 5 MHz
Brands Up to 4, with delta function
Shooting by events ?
Waterfall ?
Traces Maximum, minimum
Reference level Automatic and manual
DVB-T Digital Measurements
Modulations COFDM ( QPSK, 16QAM, 64QAM)
Power From 20 to 128 dB?V
CBER 9.9E-2 ? 1.0E-6
VBER 1.0E-3 ? 1.0E-8
MER Up to 40 dB
C/N Up to 52 dB
Echoes ?
MER per carrier ?
Constellation ?
Bad packets ?
TILT ?
Attenuation ?
DVB-T2 Digital Measurements
Modulations COFDM ( QPSK, 16QAM, 64QAM y 256 QAM)
Power From 20 to 128 dB?V
LDPCBER 9.9E-2 ? 1.0E-6
BCHBER 1.0E-3 ? 1.0E-8
Link Margin Up to 30 dB
MER Up to 40 dB
C/N Up to 52 dB
Echoes ?
MER per carrier ?
Constellation ?
Bad packets ?
TILT ?
Attenuation ?
Multiple PLP ?
Digital Measures QAM (Annex A / B / C)
Modulations 4,16, 32,64 and 256 QAM
Power From 20 to 128 dB?V
BER 1.E-3 ? 1.0E-8
MER Up to 40 dB
C/N Up to 52 dB
Constellation ?
Bad packets ?
TILT ?
Attenuation ?
DVB-S Digital Measurements
Power From 20 to 128 dB?V
CBER 9.9E-2 ? 1.0E-6
VBER 1.0E-4 ? 1.0E-8
MER Up to 20 dB
C/N Up to 30 dB
Constellation? ?
Bad packets ?
TILT ?
Attenuation ?
DVB-S2X Digital Measurements
Modulations QPSK, 8PSK
Power From 20 to 128 dB?V
Link Margin Up to 10 dB
MER Up to 20 dB
C/N Up to 30 dB
LDPCBER 9.9E-2 ? 1.0E-6
BCHBER 9.9E-2 ? 1.0E-8
Constellation ?
Bad packets ?
TILT ?
Attenuation ?
Multi TS ?
PLS scrambling ?
DVB-S2 Digital Measurements
Modulations QPSK, 8PSK, 8APSK, 16 APSK and 32 APSK
Power From 20 to 128 dB?V
Link Margin Up to 10 dB
MER Up to 20 dB
C/N Up to 30 dB
LDPCBER 9.9E-2 ? 1.0E-6
BCHBER 9.9E-2 ? 1.0E-8
Constellation? ?
Bad packets ?
TILT ?
Attenuation ?
FM?
Level? ?
C/N Up to 52 dB
RDS ?
DAB / DAB + (* option ref. 596204)
Power From 20 to 128 dB?V
MER Up to 20 dB
C/N Up to 30 dB
BER 9.9E-2 ? 1.0E-6
Analog TV (* option ref. 596203)
Level? From 20 to 128 dB?V
V/A Up to 52 dB
C/N Up to 30 dB
Power supply
Power pre-amplifiers 5,13, ??18, 24Vdc and another (any value between 5 and 24V)
Maximum power supplied 12 W
Maximum current supplied 900 mA
LNB tone 22 KHz
DiSEqC ?
SCR | dCSS (EN 50494 | EN 50607) ?
