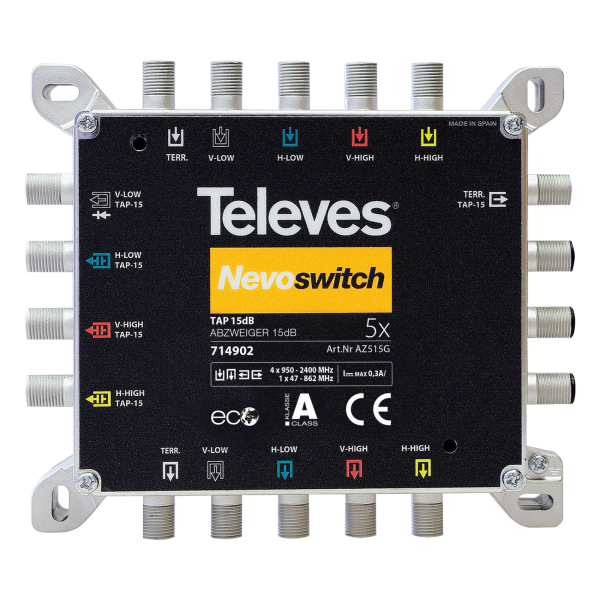

NevoSwitch Tap 5 inputs (TDT + VL/HL/VH/HH) 15dB
NevoSwitch Tap 5 inputs 15dB Televes 714902
NevoSwitch tap with 5 inputs: 1 terrestrial DTT and the 4 polarities of a Satellite (VL/VH/HL/HH). It has 5 distribution outputs with 15dB of losses and 5 through outputs. It allows the passage of current in all the inputs and outputs of passage, also in the low vertical derivative output (VL) and terrestrial.
This device complements the NevoSwitch range of multiswitches, so that the installation can be extended to a greater number of users, optimizing the signal that would reach each one.
NevoSwitch Tap 5 inputs 15dB attenuation, with 5 tap outputs and 5 through outputs.
NevoSwitch Televes 714902 tap main features:
Current circulation in all inputs and all outputs with DC bypass
Current circulation in the vertical low (VL) bypass and terrestrial output
Low through losses
Very compact
Made of zamak
Input and output colour identification
Passive element that does no require power feeding
What technical specifications does the Televes NevoSwitch 714902 tap have?
Type 5x5x5
Frequency range MHz SAT 950 … 2400
TERR 47 … 862
Input level dB?V SAT –
TERR –
Through losses dB SAT 1,5 ?0,5
TERR 1,5 ?0,5
? Tap losses 1..8 /
9..16 / 17..24 /
25..32 dB SAT 17 ? 3
TERR 15 ? 1
Isolation dB H/V >25
Users >25
DC Pass –
Max. total consump. mA PSU –
SAT
STB –
Temp. range ?C ?5 … +45 ?C
Protection level IP IP20
Related products
-
Read moreTELEVES Nevoswitch 9x9x16 CASCADE 9 In 16 Out c/w Output Earth Bar Only 2
Year Warranty *Special Order! NCNR – Check Lead Time* Part of the range of 9 input multiswitches
(8 satellite polarities + Freeview), available in 8, 12, 16, 24 and 32 user
outputs. Expand the number of users by cascading two or more units. Small and
compact design to provide an easy and quick installation. The range includes a 9x line amplifier with
25 dB average gain for Satellite inputs and 27 dB gain for Terrestrial with
DC pass. 75 ohms switch included to
load the unit (standalone) or not (cascade configurations). Highlights: Radiation immune thanks to its
zamak made chassis. All switch references are valid for standalone, star or
cascade configuration. Selectable IF gain (+10 dB) for each group or 8 users
to balance the output signals. Multiple powering options: mains and line
powered. ECO mode: the overall consumption is reduced as the number of users
decreases. Main features: Small sized
design: Make the most of space to accomodate more TV subscribers. Use the
same multiswitch in either star/cascade or standalone configuration.
Independent amplification of every feed (8 satellite plus Freeview). Multiple
powering options: mains and line powered. Adjustable gain and equalization to
achieve the best performance for every system’s requirements. -
Read moreTELEVES Euroswitch 17×17 Launch Amp 27/31dB Vo 114/118dBµV – 2 Year Warranty
*Special Order! NCNR – Check Lead Time*
Compact amplifier equipped with 17 inputs (one terrestrial and the
four polarities of four satellites) that allows increasing the number of
users in the installation while optimizing the signal received by each of
them. Amplification around 27 dB for terrestrial, and 31 dB for satellite.
RED compliant Main Features: High shielding (A class) thanks to its
manufacture in Zamak Low power consumption Wide 12-18V power supply range,
making it compatible with most existing systems Input and output colour
identification -
Read moreTELEVES Euroswitch 17x17x32 CASCADE 17 In 32 Out – 2 Year Warranty *Special
Order! NCNR – Check Lead Time* Compact
multiswitch equipped with 17 inputs (one terrestrial and 16 for four
satellites, each with its four polarities) and 32 user outputs. Thanks to its great compactness and its
optimized electronic design, it presents very low through and tap losses.
This allows to reduce the number of amplifiers needed in the cascade and to
obtain a better balanced signal in the users, even in large collective
installations. Can be used as a
terminal (star topology) or as a cascade by using a simple switch. In
addition, it incorporates a second switch that actives the TForce technology,
which automatically adjusts the terrestrial signal and keep it constant
despite variations in the reception. RED compliant Main Features: High shielding (A class) thanks to its
manufacture in Zamak Versatile: selector switch to shift between cascade and
terminal modes Low consumption under normal conditions. In addition, ECO mode
reduces consumption as the number of connected users decreases Wide 12-18V
power supply range, making it compatible with most existing systems Current
circulation between all inputs and cascades Input and output colour
identification -
Read moreTELEVES Nevoswitch 15dB Tap 5 In – 5 Trunk + 5 Tap Out 2 Year Warranty
*Special Order! NCNR – Check Lead Time*
CONFIGURABLE ELEMENTS FOR BETTER SIGNAL ADJUSTMENT Highlights: Chassis
made of zamak: radiation inmune. Suitable for star/cascade system
configurations. Independent Output Level adjustment (except QUAD compatible
units). Low consumption ECO mode. Thanks to the ECO system, the consumption
decreases as the number of users is reduced. Main Features: Small size and
compact design. Cascadable and terminal configuration in a single reference.
Independent line-amplifier level adjustment. Multiple powering options (Jack,
VLow, Terrestrial Input/Output and user outputs) Independent output level
adjustment. -
Read moreTELEVES 13x13x12 CASCADE Multiswitch 13 In 12 Out c/w Output Earth Bar Only 2
Year Warranty *Special Order! NCNR – Check Lead Time* This unit can be used as a cascade element
since it has 13 outputs to connect to other switches and increase the number
of users. This range of products has been designed with the ECO system: as
the number of users decreases, the power consumption of the system will
decrease as well. Gain in the FI band can be selected individually for each
group of 8 users to provide a balanced output.
