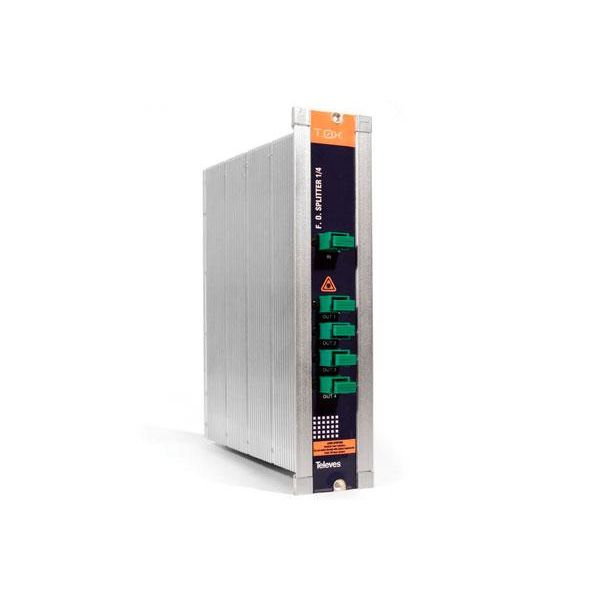

Optical deliveryman 1310 / 1550nm SC / APC 4D 7dB
Repartidor ?ptico 1310/1550nm SC/APC 4D 7dB de Televes. Ref. 2339.
Deliveryman 4 outlets for fiber optic installations , for connections 1310/1550 nm .
Characteristics:
4 outputs. Wavelength of 1310-1550 nm .
Connector SC / APC type .
Insertion loss of 7.5 dB.
Return loss of 55 dB. IP20 protection index .
Dimensions 50x216x175 mm .
