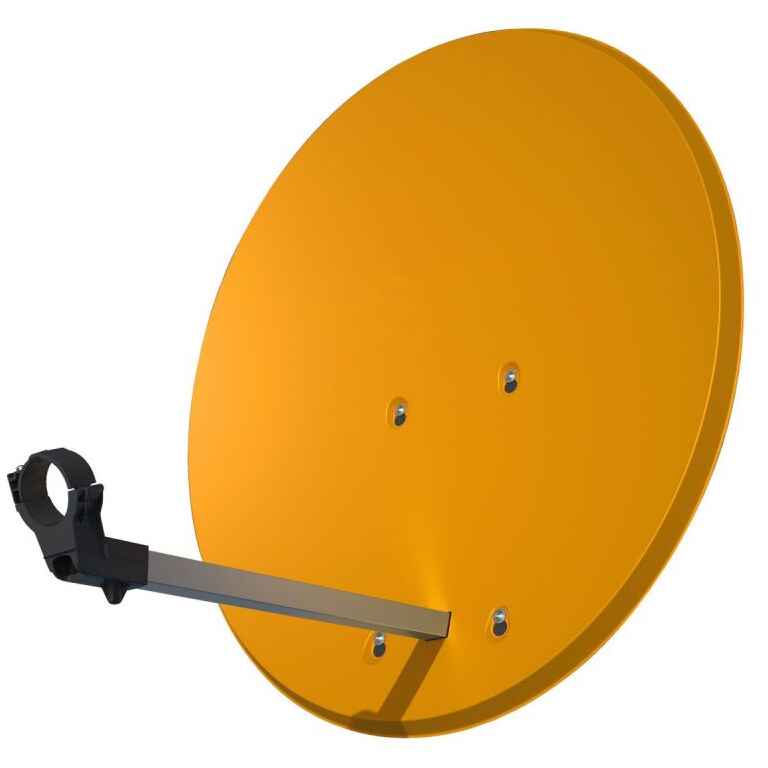

Pack of 5 Televes ISD Offset dish 83cm Aluminum 39dBi Orange
KSh84,252.00
This new range of satellite dishes is built using aluminium and stainless steel to guarantee the protection against rust.
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
This new range of satellite dishes is built using aluminium and stainless steel to guarantee the protection against rust.
The bracket and LNB holder are built using a special polymer widely used in a highly professional sector, and reinforced with fiberglass for an extreme resistance.
Its improved structure has been designed to make assembly easier.
Main features
Flexible LNB holder. Made of fiberglass
Hide the cables in the arm. Made of aluminium
Best performance against corrosion. Aluminium dish and stainless steel screws
Robust pole clamp and bracket with two ?U? type bolts. Made of ZAMAK
Adjustable elevation angle. From 0 to 90?
High resistance reflector bracket. Made of fiberglass
Pack of 5
Specs
Offset ? 830
?Frequency ?GHz ?10,7 … 12,75
?Gain dBi 38 @ 11,7 GHz
?Offset angle ? 26,6
?Elevation angle ? 0 … 90
?Thickness mm 0,8
?Windload N 499,2 @ 130Km/h
686,4 @150 Km/h
?Mast diameter mm 20 … 60
?Dish size mm 747×833
Related products
-
Add to cartAlcad PF-424 – Serie 912: Satellite dish 80 cm steel with lnb (x5).
Offset type parabolic antenna with high gain and efficiency with universal single LNB included. The assembly of the antenna is simple, once installed it is very robust and assures great orientation stability. The packaging includes fittings which avoid damage to the dish during transportation.
Applications
Suitable for individual satellite TV installations. The antenna is available in two sizes: 85 cm x 80 cm and 65 cm x 60 cm.
Characteristics
Robust antenna with great resistance to sun and saltpetre. The dish is made from epoxy covered galvanised steel and the accessories are of galvanised iron. Supplied in an individual or multiple pack.
Downloads
Technical specification
Technical specification
Manuals
– pdf 169.98 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Add to cartThis product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
TRIAX TD Dishes?The difference is clear
Manufactured and tested to the highest standards of precision and quality, TRIAX?s easy-to-install dishes offer outstanding performance, durability and reliability.
TDS: Steel???? TDA: Aluminium
Features
Unrivaled build quality, whether Steel or Aluminium
– Hot-dip galvanized steel OR long lasting Aluminium – for extra corrosion protection?
– TRIAX?s unique cable protection system?
– Every part, every accessory is weatherproofed
– 2 years corrosion warranty
– 5 years functionality warranty
Outstanding performance
– High gain for an exceptional signal
Quick and easy installation
– One-click mounting system
– Self-locking screw & nuts
Logistic friendly
-?Single or Bulk packaging, according to customer needsTRIAX is your reliable partner, with?comprehensive service and support.?
Specifications
ORDER INFORMATION
EAN Number 5702661205088
CHARACTERISTICS
Elevation range 0…90 ?
Offset angle 25.6 ?
F/D ratio 0,62
FREQUENCY
Frequency range 10.7…12.75 GHz
GAIN
Gain @ 11.7 GHz 36.5 dBi
Gain @ 10.70 GHz 38.5 dBi
Gain @ 12.75 GHz 37 dBi
MECHANICAL
Main material Galvanized steel (hot-dip)
Colour RAL 7016 – Anthracite grey
Arm Colour Raw
Total Weight 5,600 kg
LNB holder 40
Net Weight 4,210 kg
Packing QTY 1
Reflector type Offset
Width (cm) 71 cm
Height (cm) 79 cm
Packaging Depth 0,100 m
Packaging Height 0,870 m
Packaging Width 0,832 m
Tara Weight 1,390 kg
Packaging Volume 0,072 m3 -
Add to cartTRIAX TD Dishes?The difference is clear
Manufactured and tested to the highest standards of precision and quality, TRIAX?s easy-to-install dishes offer outstanding performance, durability and reliability.
TDS: Steel???? TDA: Aluminium
Features
Unrivaled build quality, whether Steel or Aluminium
– Hot-dip galvanized steel OR long lasting Aluminium – for extra corrosion protection?
– TRIAX?s unique cable protection system?
– Every part, every accessory is weatherproofed
– 2 years corrosion warranty
– 5 years functionality warranty
Outstanding performance
– High gain for an exceptional signal
Quick and easy installation
– One-click mounting system
– Self-locking screw & nuts
Logistic friendly
-?Single or Bulk packaging, according to customer needsTRIAX is your reliable partner, with?comprehensive service and support.?
Specifications
ORDER INFORMATION
EAN Number 5702661205095
CHARACTERISTICS
Elevation range 0…90 ?
Offset angle 25.6 ?
F/D ratio 0,62
FREQUENCY
Frequency range 10.7…12.75 GHz
GAIN
Gain @ 11.7 GHz 36.5 dBi
Gain @ 10.70 GHz 38.5 dBi
Gain @ 12.75 GHz 37 dBi
MECHANICAL
Main material Galvanized steel (hot-dip)
Colour RAL 7035 – Light grey
Arm Colour Raw
Total Weight 5,600 kg
LNB holder 40
Net Weight 4,210 kg
Packing QTY 1
Reflector type Offset
Width (cm) 71 cm
Height (cm) 79 cm
Packaging Depth 0,100 m
Packaging Height 0,870 m
Packaging Width 0,832 m
Tara Weight 1,390 kg
Packaging Volume 0,072 m3 -
-
Add to cartThis new range of satellite dishes is built using aluminium and stainless steel to guarantee the protection against rust.
