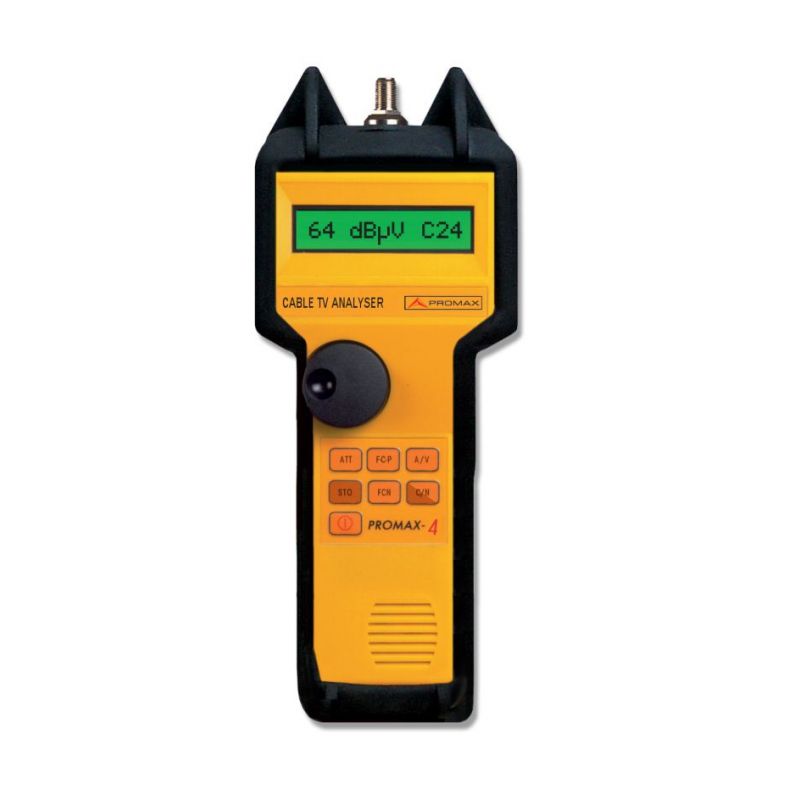

Promax-4 Cable TV Analysers
KSh93,654.00
The PROMAX-4 models, are instruments designed to measure the basic parameters to determine the quality of the signal in a CATV system in a fast and simple manner. We have implemented three versions so to offer different options depending on the needs. It is a one hand operation instrument with direct reading of the measurement on an illuminated LCD screen. It incorporates a audio demodulator together with an speaker. A exchangeable input connector so to avoid damaging the instrument.
Specs
SPECIFICATIONS PROMAX-4
TUNING From 45 to 862 MHz, through channels, frequency or programs. One channel plan, configurable from PC.
LEVEL MEASUREMENT 20 dB?V to 120 dB?V. Digital readout.
VIDEO/AUDIO MEASUREMENT Measurement range from 0 to 40 dB
C/N MEASUREMENT Dynamic range 50 dB.
SOUND AM/FM/Level. Internal speaker / external headphones output.
