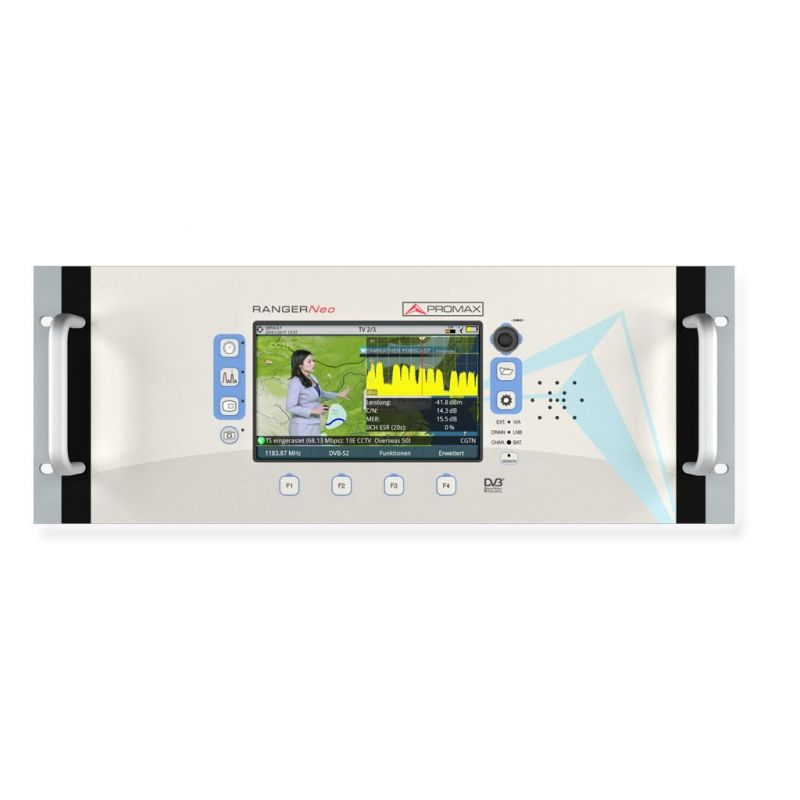

Promax RANGER Neo 3 Rack High-end TV & Satellite field meter…

Professional Field Meter for expert installers and broadcast engineers. With Network Delay Margin, T2-MI analysis, GPS for drive test, DAB/DAB+ digital radio and all the functions of the RANGER Neo Rack 2.

The RANGER Neo Rack 3 is a professional Field Meter and Spectrum Analyzer that is part of a new class of multifunction analyzers for TV, Satellite, CATV and WIFI.

They are designed to facilitate the work of expert installers and broadcast engineers beyond their traditional skills in network installation and maintenance, to successfully overcome the challenges posed by the world of wireless communications and new video platforms.

HEVC H.265 decoding and exceptional spectrum analyzer capabilities are at the heart of the RANGER Neo Rack 3 field strength meter, along with its many features such as WiFi analysis (including real spectrum display), LNB compatibility wide band (wide band LNB), constellation diagram, dynamic echo analysis, etc. All this in a very compact and light equipment, ideal for field work.

DVB-T2/C2/S2, DSS, Dolby Digital Plus
ISDB-T/Tb
Network Delay (DVB)
T2-MI analysis
GPS for coverage analysis
DAB / DAB+ digital radio
IPTV analyzer
High resolution filters
TS-ASI input and output
Slot for Common Interface modules
TS Analyzer, Recorder and Player
Super Spectrum Analyzer with Triple Screen Split
Dynamic echo analysis
Touch screen
HEVC H.265 decoding
Wideband LNB (wbLNB) compatibility
wifi analyzer
Remote control with Web Server
Merogram and Spectrogram
Expandable with webControl
Autonomy greater than 4 hours
Characteristic
HEVC decoding.
T2-MI packet analysis. It can receive a T2-MI signal in either ASI or IP formats, performing IP transport quality measurements, T2-MI packet analysis and PLP de-encapsulation.
dCSS LNBs. It stands for LNB Digital Channel Stacking Switch or LNB with Stacked Digital Channel Switching. It is a technology that represents a step further in the distribution of multi-user systems through a single cable.
Extended IP features.
Ethernet connectivity for remote control. And in addition, the IP interface can also store or retrieve data from a PC, copy channel tables or facility information, measurement logs, copy transport stream files, screenshots, etc.
Greater memory capacity. Up to 7 GB for user data.
… plus all the functions of the RANGERNeo 2.

Fiber optic measurements and 3 GHz band extension can also be optionally added. All this makes RANGERNeo 3 a field strength meter that can be used in all possible technological scenarios.

Available options
OP-00X-DAB2: Advanced DAB/DAB+ Measurements for RANGER Neo 2 / 3 / 4 and PROWATCH Neo
OP-00X-FM: Advanced FM Measurements for RANGER Neo 2 / 3 / 4 and PROWATCH Neo
OP-00X-WL: Wi-Fi 5 GHz and LTE 2.6 GHz for RANGER Neo + / 2 / 3 / 4 and PROWATCH Neo
OP-00X-PS: Optical fiber. Includes Wi?Fi 5 GHz and LTE 2.6 GHz. For RANGER Neo + / 2 / 3 / 4 and PROWATCH Neo
OP-00X-AF: High precision frequency measurement for RANGER Neo + / 2 / 3 / 4 and PROWATCH Neo
Video

Specifications
RACK MOUNT 19″ 4U 482 (W) x 178 (H) x 238.7 (D) mm
OPERATING MODES Hybrid operation: 7? touch screen or conventional keyboard
DIGITAL STANDARDS – DVB-T, DVB-T2, DVB-T2 lite
– DVB-T2-MI ( Gateway to modulator )
– DVB-C, DVB-C2
– DVB-S, DVB-S2, DVB-S2 multistream
-DSS, ACM/VCM
-DAB,DAB+
– ST
VIDEO CODEC MPEG-2, MPEG-4 H.264, HEVC H.265
SOUND CODEC MPEG-1, MPEG-2, HE-AAC, Dolby Digital,
Dolby Digital Plus
ENTRIES AND EXITS – Universal RF connector 75 ?
– ASI-TS input and output
– IPTV UDP/RTP RJ45 Ethernet 1 Gbps input
-HDMI output
– IP input for remote control
– Analog Video/Audio Input
– Slot for Common Interface modules
– 2xUSB for data transfer and GPS module
FUNCTIONS – Merogram and Spectrogram
– Constellation diagram
-LTE
– Analysis of dynamic echoes
– StealthID (instant identification
of signal parameters)
– PLS (Physical Layer Scrambling)
– Ultra fast spectrum analyzer
(90 ms sweep) with peak hold
– FM RDS radio decoding and measurement
– Screenshots and Datalogger
for measurement reports
-Wideband LNB
– 2.4GHz Wi-Fi
– LTE 1.8GHz
-OTT
– Recording services
– DVB-S2 multistream
– Signal monitoring
– Field intensity
– Task planner
– TS recording
– ST Analysis
– Web server
– MER per carrier
– Multicast IPTV
– Shoulder attenuation
-Network Delay
– Coverage analysis with GPS
– Beacon-Flyaways SNG and VSAT
BANDWIDTH RESOLUTION 2, 10, 20, 40, 100, 200kHz
1MHz
OPTIONS – Optical power meter
+ Optical-RF converter + WiFi 5 GHz + LTE 2.6 GHz
– WiFi 5GHz + LTE 2.6GHz
CONNECTION TO PC (via ethernet interface) -NetUpdate 4 (free software)
– Free and automatic updates
– Remote control (web server)
– Custom channel tables
– Measurement reports and screenshots
