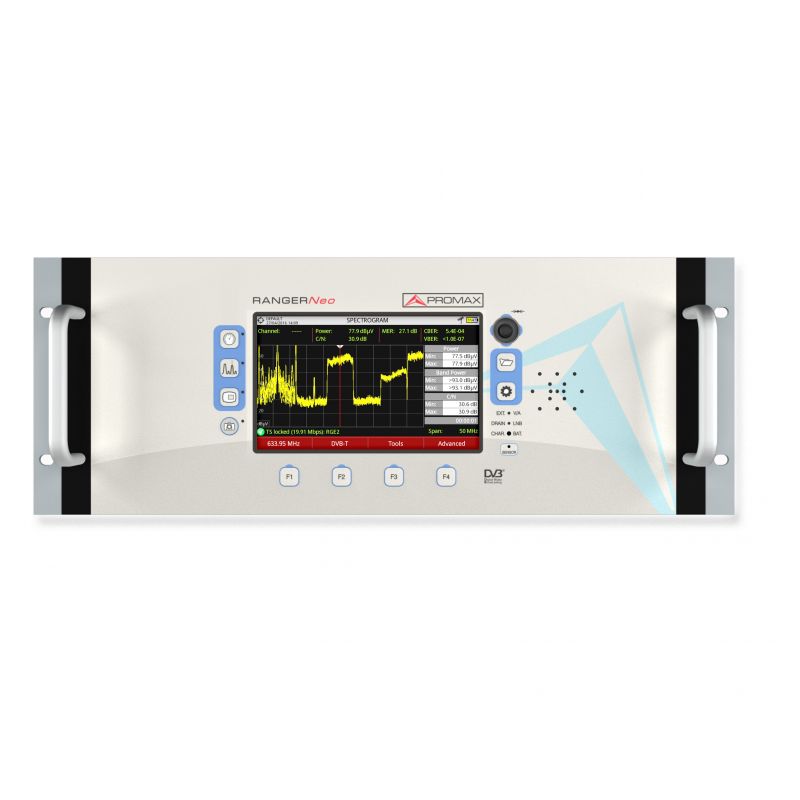

Promax RANGER Neo + Rack Advanced multifunction TV &…
KSh1,354,716.00
The RANGER Neo Rack + is an advanced Field Meter and Spectrum Analyzer that is part of a new class of multifunction analyzers for TV, Satellite, CATV and WIFI.
They are designed to facilitate the work of expert installers beyond their classic skills in network installation and maintenance, to successfully overcome the challenges posed by the world of wireless communications and new video platforms.
HEVC H.265 decoding and exceptional spectrum analyzer capabilities are at the heart of the RANGER Neo Rack + field strength meter, along with its many features such as WiFi analysis (including real spectrum display), LNB compatibility wide band (wide band LNB), constellation diagram, dynamic echo analysis, etc. All this in a very compact and light equipment (1600 gr) ideal for field work.
Characteristic
DVB-T2/C2/S2, DSS, Dolby Digital Plus
ISDB-T/Tb
Super Spectrum Analyzer with Triple Screen Split
Dynamic echo analysis
Touch screen
HEVC H.265 decoding
Wideband LNB (wbLNB) compatibility
wifi analyzer
Remote control with webControl
Merogram and Spectrogram
Expandable with Fiber Optic and GPS
Available options
OP-002-GPS: GPS for “drive test” measurements for RANGER Neo + / 2
OP-00X-WL: Wi-Fi 5 GHz and LTE 2.6 GHz for RANGER Neo + / 2 / 3 / 4 and PROWATCH Neo
OP-00X-PS: Optical fiber. Includes Wi?Fi 5 GHz and LTE 2.6 GHz. For RANGER Neo + / 2 / 3 / 4 and PROWATCH Neo
OP-00X-AF: High precision frequency measurement for RANGER Neo + / 2 / 3 / 4 and PROWATCH Neo
Video
Specifications
RACK MOUNT 19? 4U 482 (W) x 178 (H) x 238.7 (D) mm
OPERATING MODES Hybrid operation: 7? touch screen or conventional keyboard
DIGITAL STANDARDS
DVB-T, DVB-T2, DVB-T2 lite
DVB-C, DVB-C2
DVB-S, DVB-S2, DVB-S2 multistream
ISDB-T/Tb
DSS, ACM/VCM/CCM
VIDEO CODEC MPEG-2, MPEG-4 H.264, HEVC H.265
SOUND CODEC MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus
ENTRIES AND EXITS
Universal RF connector 75 ?
HDMI output
IP input for remote control
Analog Video/Audio Input
2xUSB for data transfer and GPS module
FUNCTIONS
4K frame grabber
merogram
Spectrogram
signal monitoring
Remote control (webControl)
MER per carrier
Audio/video streaming
SCAN + TILT
Shoulder Attenuation
constellation diagram
LTE interference test
Dynamic echo analysis
StealthID (instant identification of signal parameters)
PLS (Physical Layer Scrambling)
Ultra-fast spectrum analyzer (70 ms scan)
MAX and MIN hold
FM RDS radio decoding and measurement
Screenshots and Datalogger for reports
Beacon-Flyaways for SNG and VSAT
Wideband LNB
Wi-Fi 2.4GHz
LTE 1.8GHz
OTT
service recording
Field intensity
task planner
BANDWIDTH RESOLUTION
100, 200kHz
1MHz
OPTIONS
DAB, DAB+
GPS coverage analysis
OPM + Optical-RF Converter + WiFi 5 GHz + LTE 2.6 GHz + Ent. 6GHz RF
WiFi 5 GHz + LTE 2.6 GHz + RF input 6 GHz
CONNECTION TO PC (via ethernet interface)
NetUpdate 4 (free software)
Free and automatic updates
Remote control ( webControl )
Audio/Video Streaming
Custom Channel Tables
Measurement reports and screenshots
