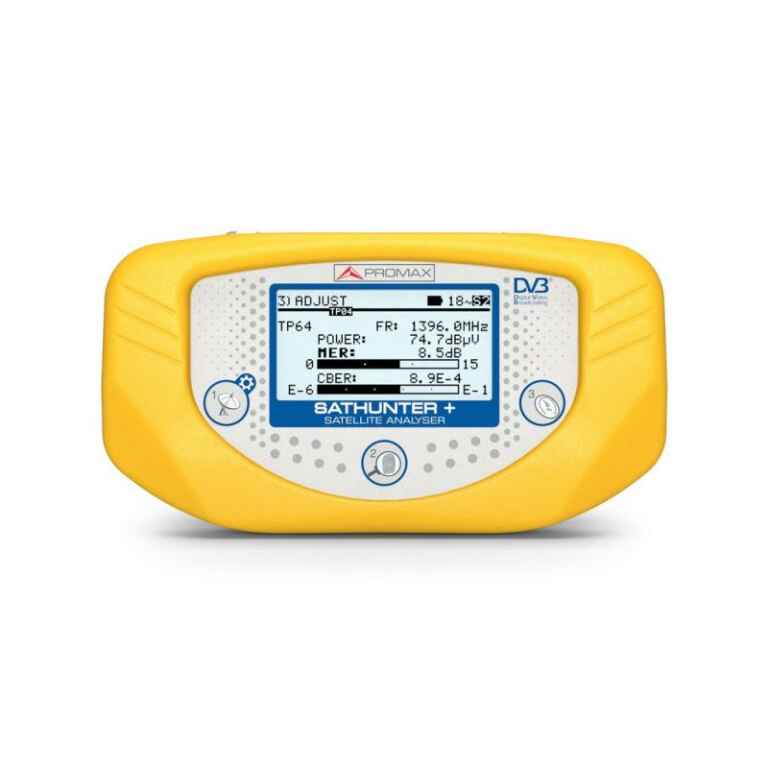

Promax SATHUNTER Mini Field Meter + DVB-S/S2 and DSS…
KSh178,596.00
The SATHUNTER + is an instrument designed for the installation of satellite reception systems (DVB-S / S2 and DSS). It is fully automatic and very easy to use. Simply orient the antenna and the instrument will show the identification of the selected satellite when it is detected. The instrument performs a reading of the information transmitted by the satellite showing at all times its orbital position and the list of services.
Specifications
ORIENTATION IN 3 STEPS Satellite location, identification, fine tuning
SATELLITES 50 maximum
SYMBOL RATE (DVB-S) 2 to 45 Mbauds 2 a 45 Mbauds
SYMBOL RATE (DVB-S2)
QPSK
??8PSK 2 a 45 Mbauds
2 a 45 Mbauds
SYMBOL RATE (DSS) 22 Mbauds
BATTERIESER?AS Long-lasting Li-Ion
CONFIGURATION Includes CD ROM and USB cable for configuration change
