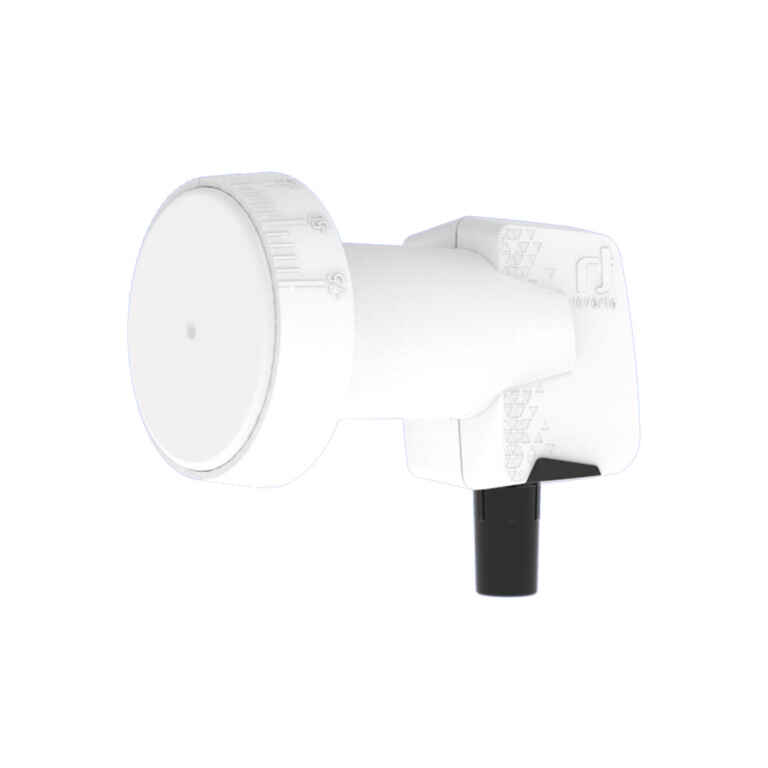

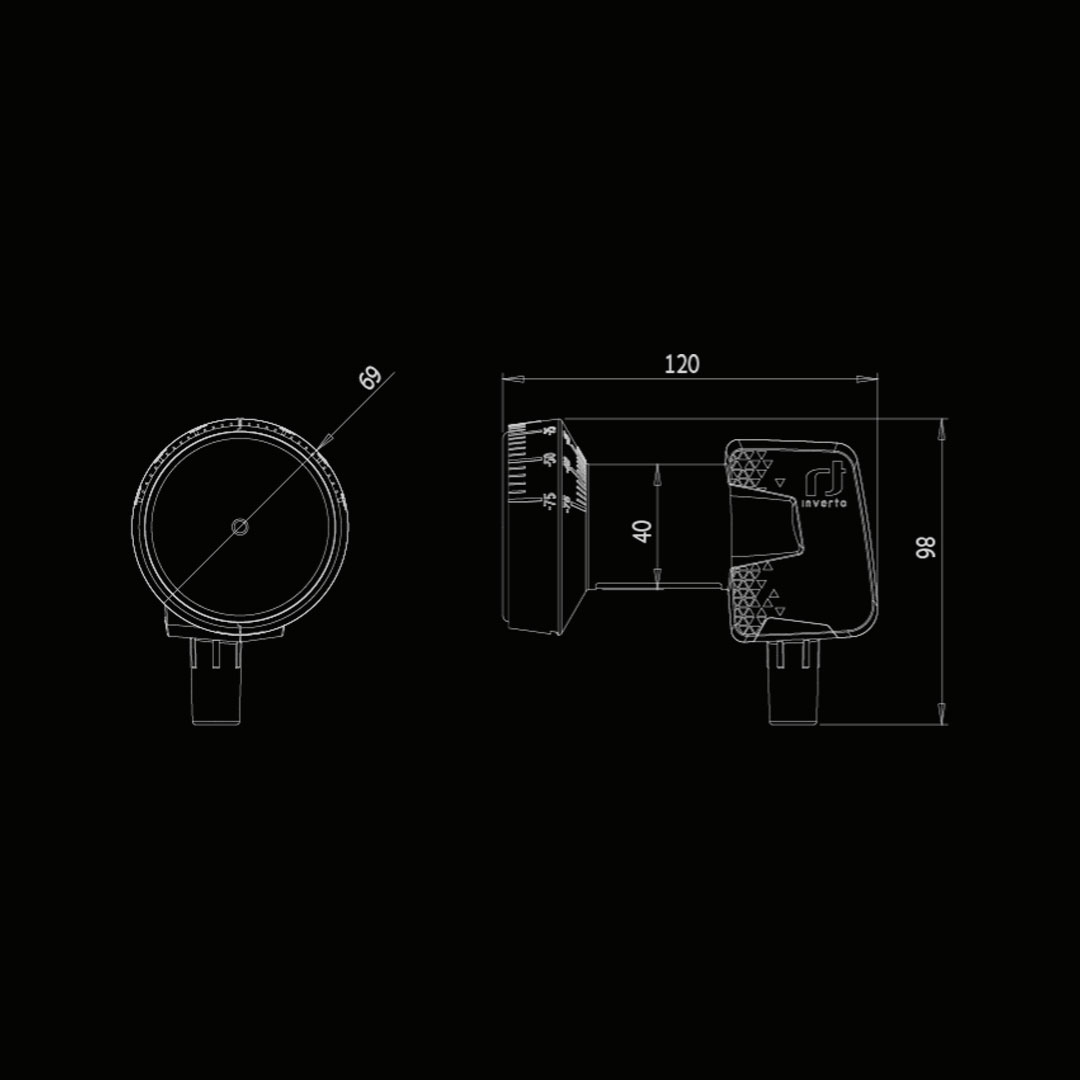

rt-Inverto HOME Pro -Single Universal LNB 40mm PLL
Main
Features:
Low Phase Noise, DVB-S2 (HD and UHD) compliant
Low Noise Figure
Low power consumption
High Cross Polarization Isolation
High Frequency stability
Technical specifications
Input frequency range 10.7 GHz ~ 12.75 GHz
Output frequency range
950 MHz ~ 1950 MHz
Low band LO frequency
9.75 GHz
High band LO frequency
10.6 GHz
Noise figure
0.7 dB typ. (1 dB max.)
LO frequency accuracy @ 25° C
±400 kHz max.
LO temperature drift ±800 kHz max.
LO phase noise @ 10 kHz
-90 dBc/Hz max.
Conversion gain
55 dB min.
Gain ripple (over 26 MHz bandwidth) ±0.6 dB
Gain variation (over full band) ±4 dB
Image rejection
40 dB min.
3th order intermodulation – ICP3 10 dBm typ.
1 dB compression point (@ output) 0 dBm min.
Cross polarization isolation 22 dB min.
Control signal Ca (V)
10.0 V ~ 14.0 V
Control signal Cb (H)
16.0 V ~ 20.0 V
Control signal Cc (band switching)
22 kHz ±4 kHz
Output VSWR
2.3 : 1
In band spurious level -60 dBm max.
Current consumption
210 mA max. @ 11 VDC ~ 20 VDC
Operating temperature
-30 °C ~ +60 °C
Output impedance (LNB2)
75 ?
Output connector type
F-type (female)
Dish F/D ratio 0.6
Weight 299 g
