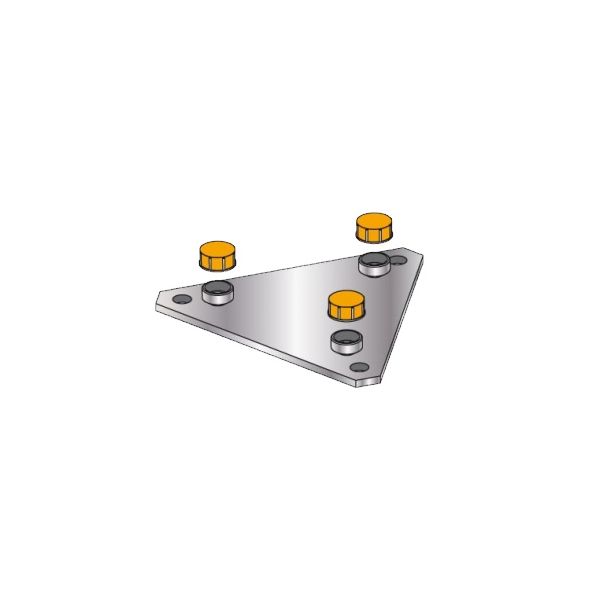

Special TCI Base Televes 180 3038
Special ICT 180 screwed base.
The base 3038 is a screwable base that is based on a new design and manufacturing concept that is reflected in a considerable improvement in its torsional rigidity.
All the effort developed at the engineering level, provides the installer with greater ease of handling and assembly, as well as greater strength of the tower in its different heights thanks to the new distribution of its lattice.
The base 3038 of Televes is designed to be screwed and achieve the desired fixation.
What technical characteristics does the base 3038 have?
Base compatible with seri 180.
Screw-in
Sections and Bases with RPR.
Maximum reach 26.5m in height, depending on your location.
Increases mechanical resistance.
Torsional rigidity.
Resistant.
Made of steel
Easy union of sections.
New fine pitch metric.
Which turrets can be added to base 303801?
Ref 3031:?Intermediate section tower 180 RPR reinforced 3m.
Ref 3032:?Upper section tower 180 RPR reinforced 3m.
Ref 3021:?Intermediate section tower 180 RPR reinforced 1m.
