Starlink Gen 2 SPX Plug to RJ45 Ethernet Adapter for Dish and Router
About this item

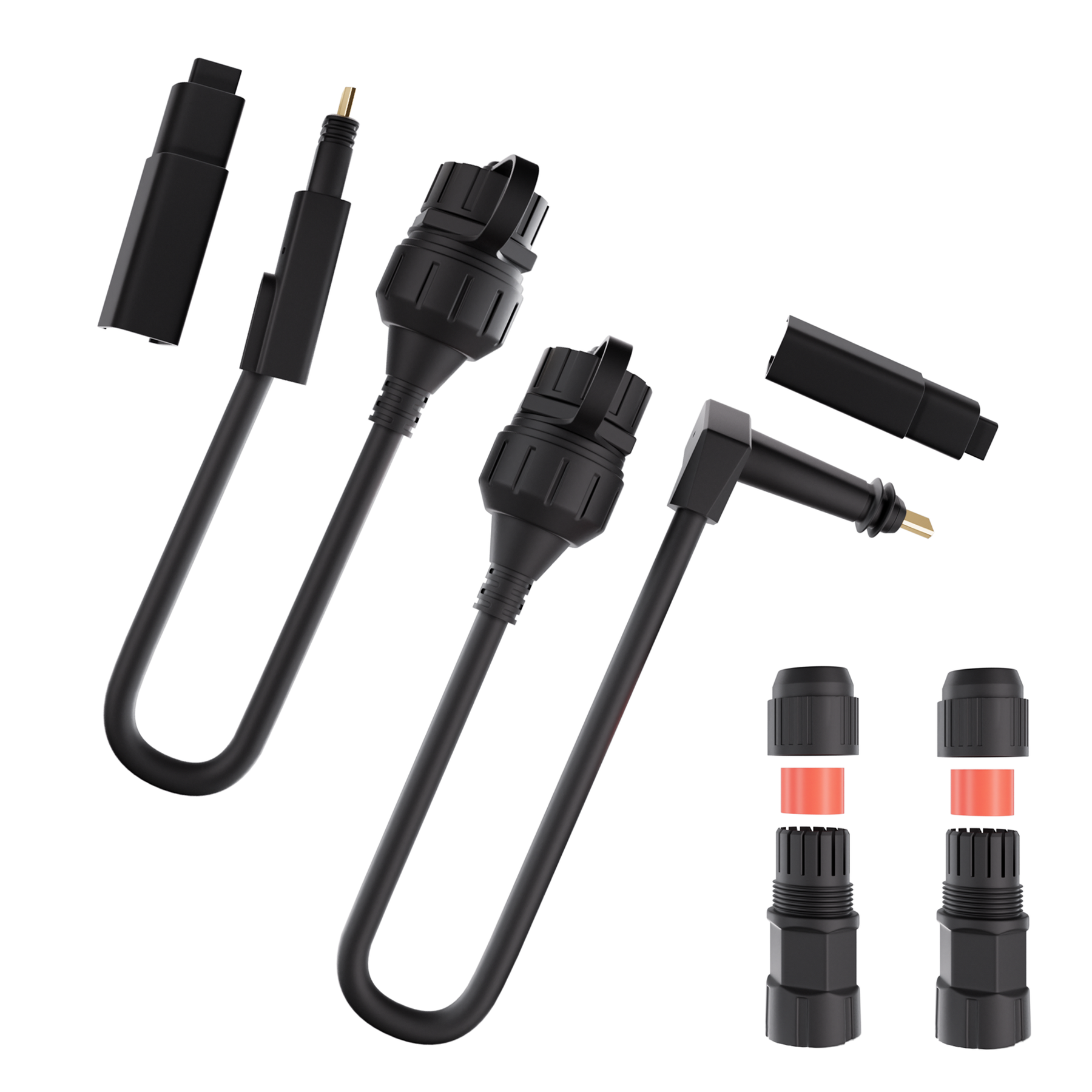

?Simplified Starlink Modifications?- This ethernet adapter kit simplifies the process of modifying your Starlink Gen 2 system. It features integrated SPX plugs (for both Dish and Router) and female RJ45 adapters (T568B) in a single cable pair, eliminating the need to cut, crimp, or use additional adapters that can introduce resistance.

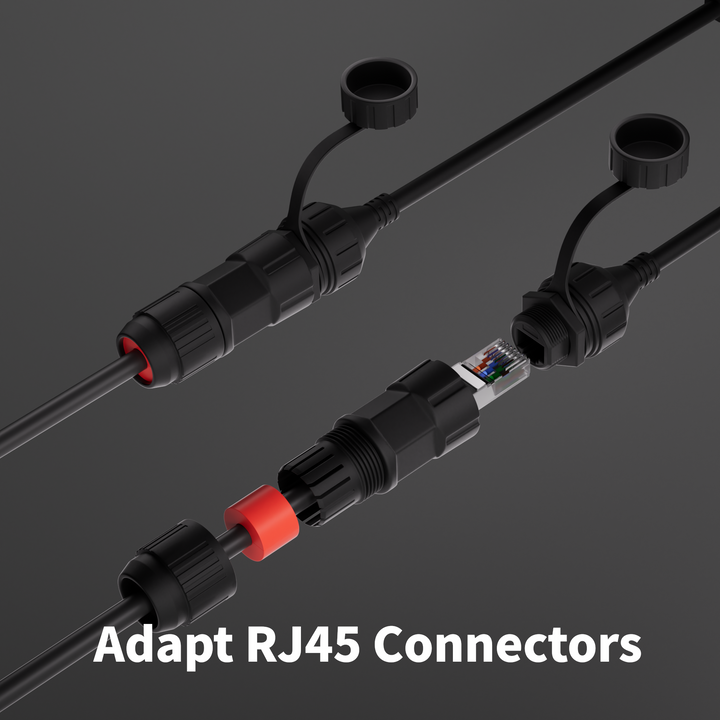

?Indoor and Outdoor Versatility?- Designed for both indoor and outdoor use, this adapter kit includes a waterproof solution for connecting standard Ethernet cables to the female RJ45 adapters. This protection shields the connections from moisture and dirt, ensuring reliable performance in various environments.
?Expanded Connectivity Options?- This ethernet adapter kit includes SPX-to-RJ45 adapters for both the dish and router sides, expanding your Starlink modification options. Use third-party PoE injectors, custom routers, or maintain compatibility with the original Gen 2 Starlink router for a customized setup.
?Reliable Performance?- This adapter is crafted with premium materials to ensure reliable data transfer and power delivery for your Starlink devices. The use of 24AWG single-core bare copper wire, shielded with premium anti-aging layers, enables high-speed transmission of up to 1200Mbps.
?Important Installation Tips?- For optimal performance, it is recommended to use a single Cat6 (or better) Ethernet cable without couplers or extenders, keeping the cable length under 175ft when using the genuine Gen 2 router. Ensure proper installation of the waterproof socket and high-quality crimp connections for home-made Ethernet cables.
?Notes for RV Users?- When using this adapter with third-party PoE injectors and Ethernet couplers/extenders, ensure optimal performance by using Cat6A or better cables (24AWG or higher) with high-quality RJ45 connectors. Keep the cable length between the dish and your PoE device under 75ft to minimize potential voltage drop.
Spec
Part No Gen2-RJ45
Color Black
Wire Size 24AWG Each Cord
Compatible Starlink Standard Actuated Gen 2
Connection Type SPX Plug to RJ45
