Starlink Symbol Rocker Switch - 5Pin
Laser ON OFF with Jumper Wire Set

Starlink Symbol Rocker Switch - 5Pin
Laser ON OFF with Jumper Wire Set - Image 2

Warning: Trying to access array offset on value of type bool in /home/adishnet/public_html/wp-content/plugins/woocommerce/includes/wc-template-functions.php on line 1745

Warning: Trying to access array offset on value of type bool in /home/adishnet/public_html/wp-content/plugins/woocommerce/includes/wc-template-functions.php on line 1746

Warning: Trying to access array offset on value of type bool in /home/adishnet/public_html/wp-content/plugins/woocommerce/includes/wc-template-functions.php on line 1747

Warning: Trying to access array offset on value of type bool in /home/adishnet/public_html/wp-content/plugins/woocommerce/includes/wc-template-functions.php on line 1748

Warning: Trying to access array offset on value of type bool in /home/adishnet/public_html/wp-content/plugins/woocommerce/includes/wc-template-functions.php on line 1768

Warning: Trying to access array offset on value of type bool in /home/adishnet/public_html/wp-content/plugins/woocommerce/includes/wc-template-functions.php on line 1768

Starlink Symbol Rocker Switch - 5Pin
Laser ON OFF with Jumper Wire Set - Image 4

←→

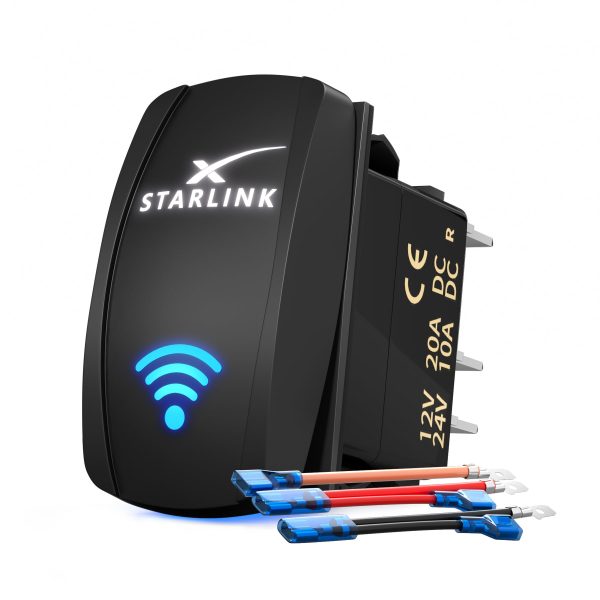

Starlink Symbol Rocker Switch – 5Pin Laser ON OFF with Jumper Wire Set

Package included

1×5 Pin Rocker Switch

1×Jumper Wire Set

About this item

【Dual LED Illumination】- This interior light rocker switch features a dual
LED illuminated design for enhanced visibility and functionality. The word
markings illuminate when the dash lights are on, while the laser-etched
pattern illuminates when the switch is activated, providing clear status
indication in all lighting conditions.

【Versatile Circuit Control】- This 5-pin rocker switch utilizes an SPST
(Single Pole Single Throw) design for simple ON/OFF control of your interior
light or other 12V/24V accessories. It is rated for 20A at 12V DC and 10A at
24V DC, making it suitable for a variety of applications.

【Easy Installation】- This interior light switch comes with a set of jumper
wires and quick disconnect terminals, simplifying the installation process.
The included wiring kit allows for quick and easy connection to your
vehicle’s electrical system.

【Flexible Wiring Options】- Users can choose between two wiring methods (A
and B), allowing them to customize how the 5-pin switch illuminates. This
allows for either the word markings to light up with the dash lights or for
both the word markings and the pattern to illuminate only when the switch is
turned on.

【Durable and Weather-Resistant】- This rocker switch is built with a rugged,
IP65 waterproof, weatherproof, and dustproof design. This ensures reliable
performance in harsh environments, making it suitable for automotive, marine,
powersports, and other demanding applications.

【Convenient Standard Mounting Size】- The switch features a standard
mounting hole size of 37mm x 21mm (approximately 1.46″ x 0.83″),
making it compatible with most standard rocker switch panels and mounts. Its
compact size allows for easy integration into various dashboards and control
panels.

Spec

Part NO DR-A11L25A-STARLINK
Actuator Symbol STARLINK
Material ABS+PC
IP Rating IP65
Rating 20A 12VDC; 10A 24VDC
Function ON-OFF SPST
Terminal 5 Pins
LED Quantity Dual LED
LED Color Blue
Housing Color Black
Connector Type ‎Quick Connect (6.3mm×0.8mm)
Mounting Size 1.46″×0.83″/37mm×21mm
Wire Length 134mm
Wire Size 2×14AWG and 1×18AWG

Details

Internal Switch Mechanism

This rocker switch is made from high-quality ABS and PC materials and
features a strong internal mechanism designed for long-lasting performance.
It has been tested to endure 10,000 presses during normal use, ensuring
reliable and consistent operation for your accessories.

Quick Disconnect Terminals

The included jumper wires feature quick connect/disconnect terminals for
easy installation and removal. Simply press the tab to release the terminal,
making wiring changes or troubleshooting a breeze.

Jumper Wires

This rocker switch comes with pre-attached jumper wires, simplifying
installation and saving you valuable time and effort. Color-coded wires and
clearly labeled terminals make wiring straightforward and hassle-free.
